Atlas Sound AH66-15-BSG 15" Stadium Horn (Discontinued)

Name: Atlas Sound AH66-15-BSG 15" Stadium Horn (Discontinued)
Brand: AtlasIED
SKU: ATLAS-AH66-15-BSG
Price: 1861.99 USD
Availability: OutOfStock

Write a Review

Part #:

AH66-15-BSG

Model #:

AH66-15-BSG

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Atlas Sound AH66-15-BSG 15 inch Stadium Horn is ideal for directional sound distribution where full range reproduction, maximum intelligibility and high sound pressure levels are required. Applications include football stadiums, sports arenas, baseball fields, convention centers and auditoriums.

Description

The AH66-15-BSG 15 inch Stadium Horn is ideal for directional sound distribution where full range reproduction, maximum intelligibility and high sound pressure levels are required. Applications include football stadiums, sports arenas, baseball fields, convention centers and auditoriums.

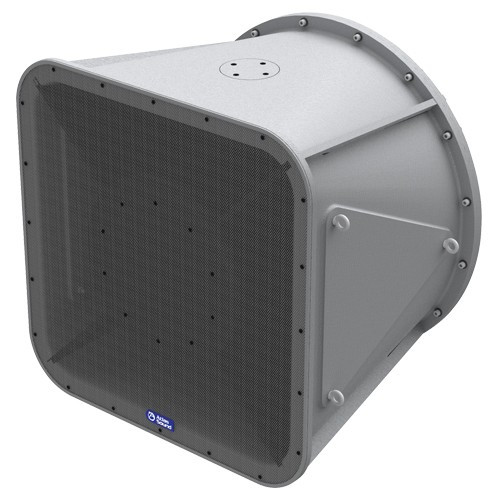

Weather resistant construction features of the AH66-15-BSG include a multiple screen configuration to prevent moisture from damaging internal components. A perforated aluminum screen covers the large horn mouth, a secondary screen is in place forward of the high frequency driver and a third tightly perforated screen protects the 15" cast frame woofer.

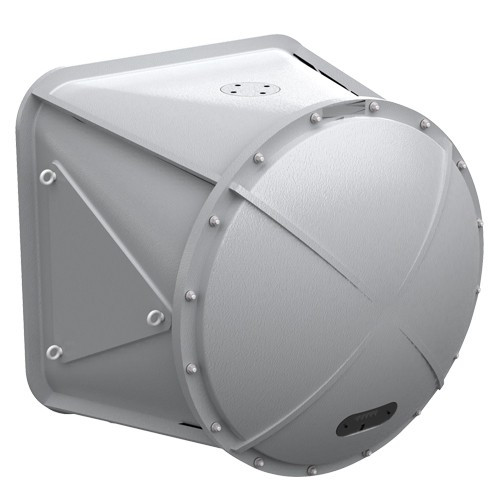

A "weep" hole is included on the back of the large horn "bell" to allow evaporation of any condensation that might build up internally.

Features

3 Forged eyebolts also included for suspended installation
250 Watts power handling
8-ohm nominal system impedance (70.7 volt operation via optional Atlas Sound model AF140 transformer)
Constant Directivity design offers controlled coverage of 65° horizontal by 65° vertical (2kHz octave band)
Driver compliment includes 15" cast frame woofer with a concentrically mounted 1" exit compression driver
Easy, weather resistant connection via a parallel 4-pole terminal block connector
Efficiency rating of 104dB (1 Watt/1 Meter)
Full range frequency response of 80 Hz to 15 kHz (± 5dB)
Heavy duty stainless steel mounting bracket (included) allows for easy installation to most any flat surface
Maximum output of 128dB (Rated Power @ 1M)

Specifications

Power Rating	250 Watts (53V) RMS
Frequency Response	75Hz - 14.5kHz
Dispersion	65° x 65°
Sensitivity	104dB SPL (75Hz - 14.5kHz 1/3 octave bands)
Dimensions (H x W x D)	23.75" (603.25 mm) x 21.41" (543.81 mm) x 30.08" (764.03 mm)
Weight	87 lbs (39.5kg)
