Atlas Sound CJ-46 Wide Dispersion Horn and PD60AT 60W 70V Compression Driver Package
The all-purpose Model CJ-46 wide-angle sound projector screw mounts to AtlasIED PD and SD Series compression drivers to provide maximum audio penetration through adverse ambient sound levels and coverage over long distances. For versatile mounting applications, Model CJ-46 features a heavy-duty steel mounting bracket with positive lock for horizontal and vertical positioning in single or stacked multi-unit clusters. To meet application requirements, the prime sound dispersion axis may be changed from horizontal to vertical via a 90° bell rotation and four 1/4" screws. Manufactured of non-resonant fiberglass with a spun aluminum re-entrant section.

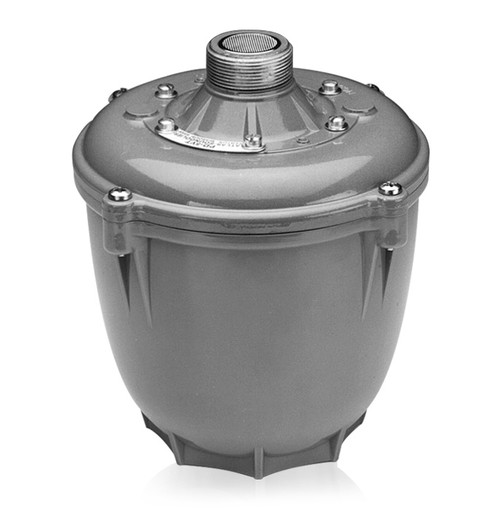

The PD60AT is a fully environment-resistant 60W driver for indoor or outdoor applications recommended for use in expansive and/or high ambient sound-level areas. Unit features a sound chamber, phasing plug and magnetic-structure components machined to optimum tolerances. Plane wave frequency response is 100 Hz - 3.7 kHz. The PD60AT features a built-in varnish impregnated, multi-tap 70V line-matching transformer. Corrosion-resistant terminal connections are protected by a transparent, impact-resistant plastic cover which provides strain relief for the interconnecting cable. The PD60AT is terminated in standard 1.38"-18" thread male couplings for use with screw-on horns.
