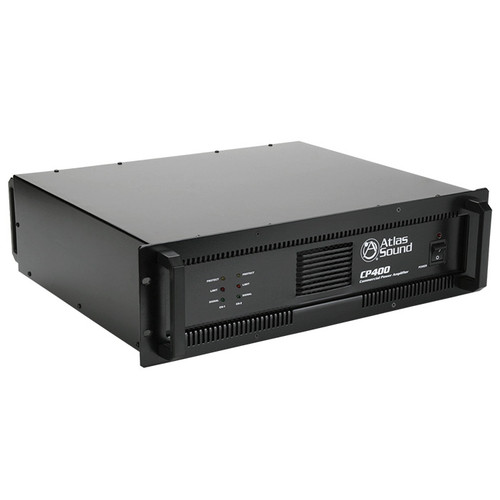

The Atlas Sound CP400 dual channel power amplifier is a professional grade audio power amplifier specifically designed for demanding contractor applications. The CP400 features esoteric grade toroidal power supply and output transformers.

Description

The CP400 is a professional grade audio power amplifier specifically designed for demanding contractor applications. The CP400 features esoteric grade toroidal power supply and output transformers. These transformers were chosen for their outstanding reliability as well as extended frequency response (-3dB @ 30Hz - 16kHz via transformer output) Now you can have the peace of mind that systems specified with the CP400 will have true transformer output isolation, a feature that previously may have not been affordable due to the cost of quality external transformers.

The CP400's two independent channels ensure maximum channel separation and ultra low distortion figures while providing years of faithful service. Whether your application is a large distributed constant voltage sound system or a high SPL sound reinforcement system, the Atlas Sound CP400 is the perfect answer for high power/low cost amplification needs.

Features
  • 25V, 70.7V, 100V, and direct coupled outputs mounted on barrier strips with covers for safety
  • Balanced inputs on barrier strip and XLR connectors
  • Dual-speed, high efficiency fan cooling
  • Loop through feature on male XLRs, one per channel input
  • Power-up muting
  • Short-circuit, temperature, and DC offset protection
  • Soft clip limiter protection
  • Stepped attenuators mounted on the rear for security
  • Stereo, bridge, or parallel operating modes selectable via rear mounted switch
  • Toroidal output transformers provide full electrical isolation

Specifications
Channels Two
Connector Type Terminal Block & XLR
Number of Fans 1 - Variable Speed
Transformer output 30Hz - 16kHz (±3dB)
Transformer output 30Hz - 16kHz (±3dB)
25V Stereo Output Power 175 Watts x2
70.7V Stereo Output Power 200 Watts x2
140V/200V Bridged Mono 400 Watts
Dimensions (H x W x D) 5.19" (132 mm) x 19" (483 mm) x 16.85" (428 mm)
Weight 44.5 lbs (20.2 kg)
Shipping Weight 47 lbs (23 kg)
