Atlas Sound DR-32 Uniform Dispersion Horn and PD60AT 60W 70V Compression Driver Package
This weather-resistant Atlas Sound DR-32 horn and PD60AT 70V compression driver package provides superior music and voice communications over distance and ambient noise. Ideal for outdoor applications that require intelligible audio transmission over long distances or through high background noise levels and are consistently recommended for sport facilities, amusement parks, church towers, warehouses, factories, military sites, transportation terminals, and other environmentally demanding locations.

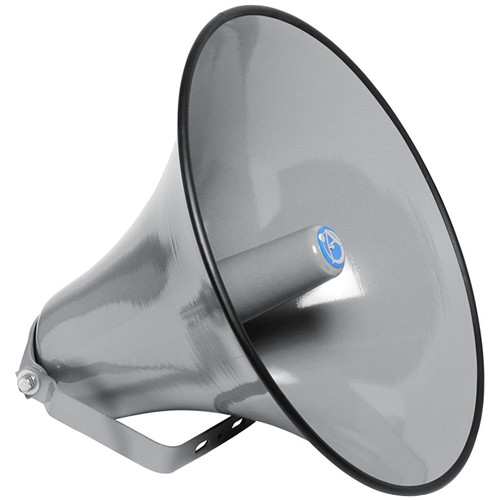

The Atlas Sound DR-32 circular projector is equipped with a resonance damping ring for best response through an extended frequency range and has 95° uniform coverage. Weather-resistant units will accommodate Atlas Sound PD and SD Series compression drivers or any driver with standard 1.38" -18 male thread coupling. The integral "U-type" steel mounting bracket provides maximum directional aiming flexibility and enhances installation capability when used outdoors or in industrial environments. This rugged all-metal, exponentially-flared horns are finished in durable grey epoxy.

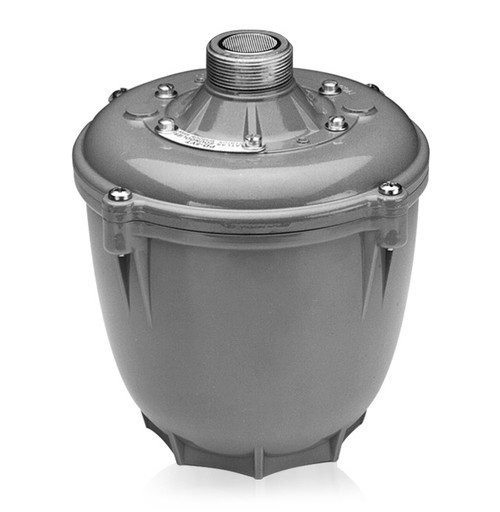

The PD60AT is a fully environment-resistant 60W driver for indoor or outdoor applications recommended for use in expansive and/or high ambient sound-level areas. Unit features a sound chamber, phasing plug and magnetic-structure components machined to optimum tolerances. Plane wave frequency response is 100 Hz - 3.7 kHz. The PD60AT features a built-in varnish impregnated, multi-tap 70V line-matching transformer. Corrosion-resistant terminal connections are protected by a transparent, impact-resistant plastic cover which provides strain relief for the interconnecting cable. The PD60AT is terminated in standard 1.38"-18" thread male couplings for use with screw-on horns.
