- Description
Details
This Attractive B Series EZB161-4 loudspeaker assembly combines the sound performance of a full range 4" high compliance loudspeaker with the job site convenience and economy of a factory-assembled loudspeaker, transformer and baffle. The speaker incorporates the popular Atlas Sound FC104 high performance loudspeaker, recognized for full-range voice and music reproduction.

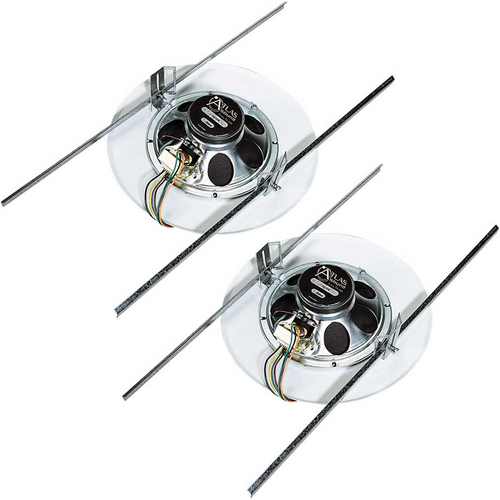

The speaker provides wide-angle sound dispersion to achieve desired coverage with fewer loudspeak-ers in distributed systems. Each loudspeaker employs a 10 ounce ceramic magnet and a damped, high-compliance cone to provide excellent low-frequency reproduction with smooth extended response. Package includes factory-mounted, dual-voltage 70.7/25V or 70.7V trans-former and round or square grille with screw mount or torsion spring (T) installation where noted. Two models are equipped with the patented EZ-Mount support system. EZB Models are designed for application in suspended ceiling tile installations which do not require a protective enclosure. Assemblies include pre-mounted EZ brackets which are slotted to accept EZ mount support rails (provided). Rails attach with wingnuts and adjust vertically to accommodate varying ceiling depth requirements (Note: No tile bridge is required). All B Series packages are shipped assembled and ready for installation.
- Features
Features
- Choice of Eight Loudspeaker/Transformer/Baffle Configurations
- Factory-Assembled Loudspeaker Packages Save Time and Money
- High Compliance 4" Loudspeaker for Full-Range Audio Reproduction in Background Music and Paging Systems
- Selection Includes Models with Easy-to-Install Torsion Spring Grilles and Models with the Cost-Efficient
- EZ-Mount Installation System and Paging Systems
- Specification
Frequency Response 100Hz - 10kHz (+/- 1.5dB) Power Taps 70.7V/25V Speaker Type High Compliance Dispersion 135°/ -6dB, 2kHz Sensitivity 94dB (at 1W / 1M) Dimensions (Dia x D) 4" (101.6 mm) x 2.25" (57.15 mm) Shipping Weight 4.00 lbs - Reviews
