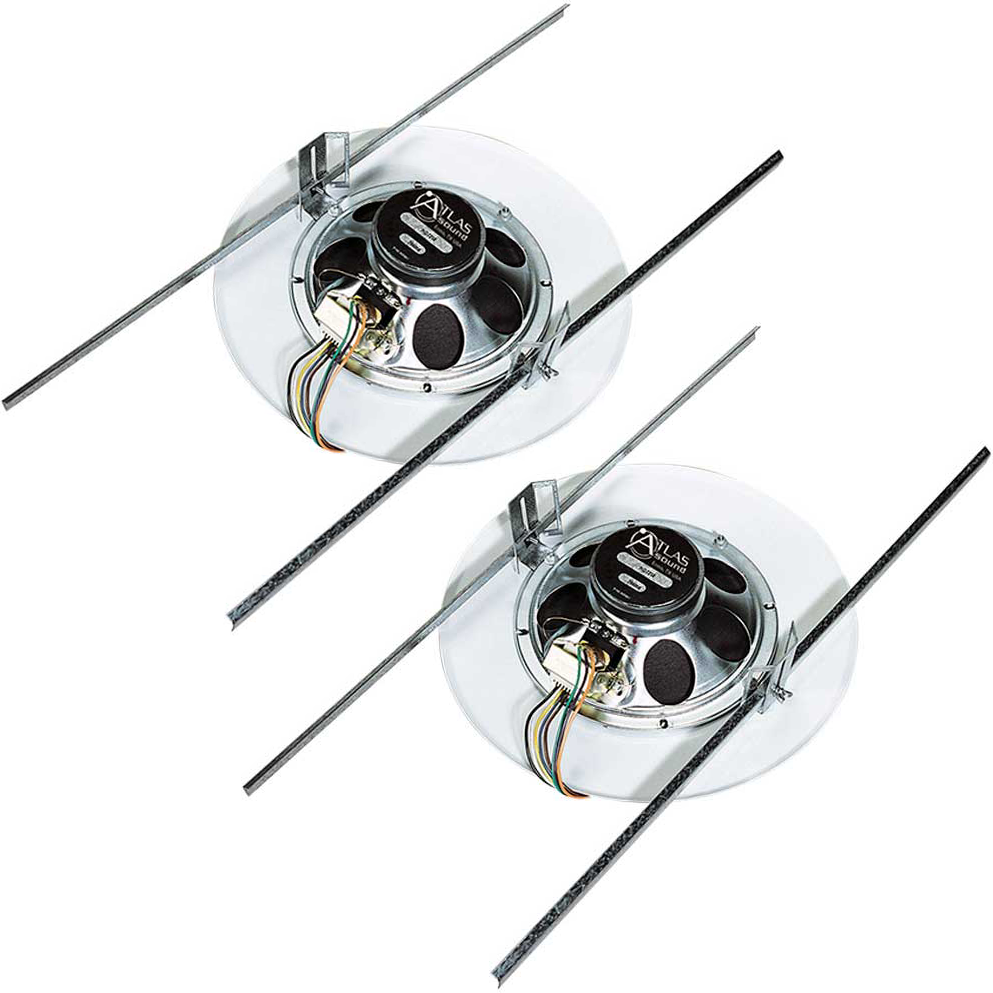

AtlasIED EZHD72W 8" In-Ceiling Loudspeaker with Support Rails and 161-4 Baffle
The Atlas Sound EZHD72W with an EZ Mount support system transfers the composite weight of the speaker, baffle, and enclosure to the ceiling's support members via adjustable support rails (included). The rails may be adjusted vertically and then secured to the specially designed, pre-mounted enclosure brackets with screws (furnished).
No tile bridge or time-consuming screw mounting is necessary. The support rails are heavy-gauge CRS and finished in a galvanized coating.
| Frequency Response | 100 Hz - 10 kHz, ± 1.5dB |
|---|---|
| Power Taps | .25, .5, 1, 2, 5 |
| Speaker Type | Treated Paper |
| Dispersion | 105° |
| Sensitivity | 97dB Peak, 94dB Average |
| Dimensions (Dia x D) | 8" (203.2 mm) x 2.88" (73.025 mm) |
| Shipping Weight | 5.17 lbs (2.35 kg) |
