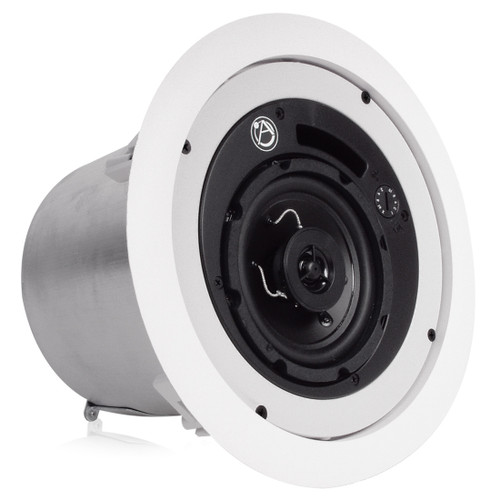

AtlasIED FAP42T Strategy II Series 4" Coaxial In-Ceiling Loudspeaker - White Pair
Usually arrives in 5-9 business days.
The AtlasIED FAP40T Strategy II Series 4" in-ceiling loudspeakers are designed to provide high performance in a very compact footprint. It appeals to both system designers and architects. Ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications.
Designed to provide high performance in a very compact footprint, the FAP40T appeals to both system designers and architects. FAP40T is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications. A unique (patent-pending) tap selector switch design allows for easy system tuning. A full selection of taps up to 16 watts, as well as an 8 ohm transformer bypass setting, is included for maximum system versatility. This switch "knob" also functions as a diffuser cone, providing smooth, even dispersion of the high-frequency content from the center of the 4" polypropylene driver. In fact, the high-frequency response of the FAP40T is so natural that many would assume that the driver in the FAP40T was a coaxial design instead of a single cone driver.
Low-frequency response is enhanced by the tuned and ported enclosure design. The enclosure (UL1480 pending) is constructed of high-impact injection-molded plastic and includes a press-fit grill design that blends quite well with contemporary architecture. A two-pole terminal strip housed below a metal removable cover on the back of the FAP40T enclosure allows for easy system wiring as well as "daisy chain" wiring to other FAP40Ts or even FASUB70 subwoofers (a great combination!). This product is sold in pairs.
| Power Taps | 1W, 2W, 4W, 8W, 16W & 8Ω |
|---|---|
| Speaker Type | Single Cone |
| Dispersion | 130° |
| Sensitivity | 87dB Average |
| UL Listed/Standard | UL 1480 |
| Power Rating | 16 Watts (8Ω) |
| Woofer | 4" Polypropylene with SBR Surround |
| Woofer Magnet Weight | 0.81 lbs (369 g) |
| Cut-Out Diameter | 6.31" (160 mm) |
| Dimensions (Dia x D) | 7.38" (187.33 mm) x 7.13" (180.98 mm) |
| Net Weight | 7.8 lbs (3.54 kg) |
| Shipping Weight (Pair) | 17 lbs (7.71 kg) |
