AtlasIED FS12T-99 12" 2-Way Multipurpose All-Weather Horn Loudspeaker System 90° x 90° with 70.7V Transformer

AtlasIED FS12T-99 12" 2-Way Multipurpose All-Weather Horn Loudspeaker System 90° x 90° with 70.7V Transformer

Name: AtlasIED FS12T-99 12" 2-Way Multipurpose All-Weather Horn Loudspeaker System 90° x 90° with 70.7V Transformer
Brand: AtlasIED
SKU: ATLAS-FS12T-99
Price: 1124.99 USD
Availability: InStock
Rating: 5 (1 reviews)

Write a Review

Part #:

FS12T-99

Model #:

FS12T-99

Current Stock:

MSRP: $1,403.99

$1,124.99

Availability: Usually arrives in 5-9 business days.

Quantity:

Adding to cart… The item has been added

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

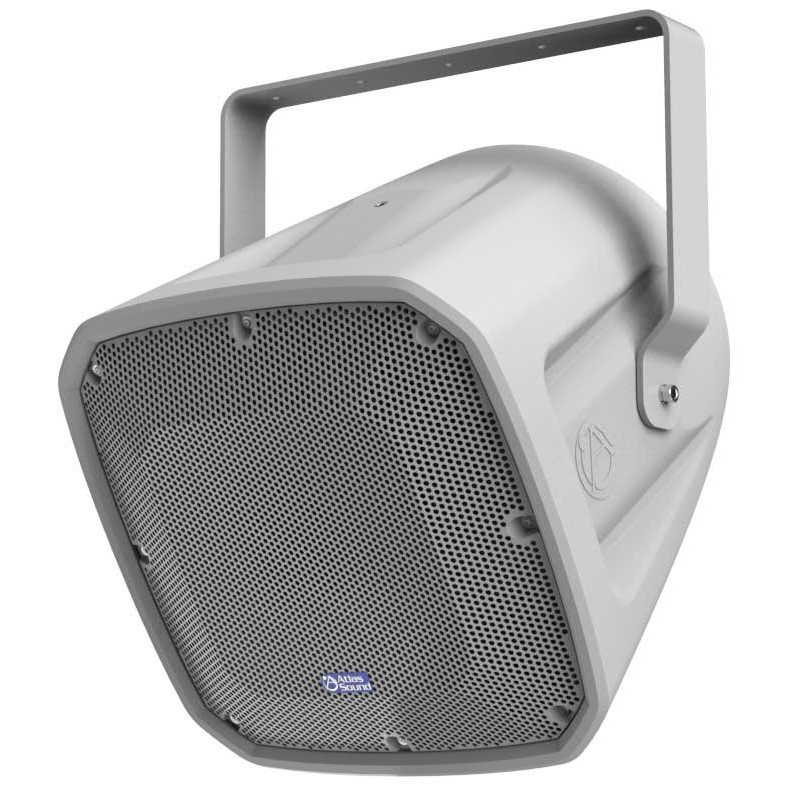

The Atlas Sound FS12T-99 is a two-way, all-weather full-range multipurpose horn loudspeaker system with 90° x 90° coverage and a lightweight enclosure. It is designed to provide excellent voice and music reproduction while withstanding exposure to environmental conditions and providing long-lasting reliability.

Description

The Atlas Sound FS12T-99 is a two-way, all-weather full-range loudspeaker system engineered to provide excellent voice and music reproduction in applications requiring weather resistance. It was designed to withstand exposure to environmental conditions and provide long-lasting reliability.

It incorporates a 12" LF driver and 1" exit HF compression driver concentrically mounted to a high-directivity waveguide. It provides 90° x 90° coverage and is tuned for optimal source reproduction.

The unit is constructed using molded linear low-density polyethylene (LLDPE), creating an incredibly strong yet lightweight enclosure. The unit includes a stainless steel U-bracket and fly-points allowing for easy mounting. Input is via an integrated 70.7V transformer with low insertion loss and full frequency response with power taps up to 400-watts including an 8Ω bypass. The transformer is discretely mounted under the rear cover for weather protection. The finish is neutral “battle ship grey” that is UV resistant and allows for years of durability.

The FS12T-99 features a lightweight and compact all-weather enclosure that can be used in multiple outdoor and indoor installation applications including arenas, stadiums, fairgrounds, racetracks, theme parks, outdoor entertainment centers, convention centers, aquatic centers, and multipurpose venues.

Features

All-Weather Construction Ensures Long-Term Reliability Through Varying Seasons
400 Watts Power Handling
Constant Directivity Design Offers Controlled Coverage of 90º Horizontal by 90º Vertical (2kHz Octave Band)
Driver Compliment Includes 12" Cast Frame Woofer with a Concentrically Mounted 1" Exit Compression Driver
Easy, Weather Resistant Connection via a Convenient Recessed Terminal Block Located on the Back of the Loudspeaker
Includes a Built-In, High Efficiency 400 Watt 70.7V Transformer
Four Eyebolt Inserts for Multiple Mounting Capabilities
Heavy Duty Mounting Bracket (Included) Allows for Easy Installation to Most Any Flat Surface
Easy Service Design Allows Transducers to be Serviced in the Field without Uninstalling the Enclosure from the Mount

Specifications

Power Taps	400, 200, 100, 50 Watts & 4Ω Bypass
Sensitivity	102.5dB SPL
Frequency Response	80Hz - 17.6kHz
Driver Type	1" HF and 12" LF
Environment	IP45
Dispersion	90° x 90°
MAX SPL	128.5dB SPL
Dimensions (H x W x D)	19.56" (497 mm) x 18.5" (469 mm) x 18.5" (469 mm)
Weight	48 lbs (21.77 kg)
Shipping Weight	60 lbs (27.22 kg)

DOCUMENTS

Reviews

Write a Review

Gary

5
Posted by Gary • March 21, 2017

Excellent Speaker

A very responsive speaker. We installed 6 of these at a local Dirt Racetrack and have had very good results. Great sound and good sound penetration into the grandstands.
