AtlasIED FS12T-BT60 12" 2-Way Multipurpose Nearfield Horn Loudspeaker System 60° Conical

AtlasIED FS12T-BT60 12" 2-Way Multipurpose Nearfield Horn Loudspeaker System 60° Conical

Name: AtlasIED FS12T-BT60 12" 2-Way Multipurpose Nearfield Horn Loudspeaker System 60° Conical
Brand: AtlasIED
SKU: ATLAS-FS12T-BT60
Price: 938.99 USD
Availability: InStock

Write a Review

Part #:

FS12T-BT60

Model #:

FS12T-BT60

Current Stock:

MSRP: $1,169.99

$938.99

Availability: Usually arrives in 5-9 business days.

Quantity:

Adding to cart… The item has been added

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Atlas Sound FS12T-BT60 is a two-way, full-range multipurpose horn loudspeaker system with 60° conical coverage and a lightweight enclosure. It is engineered for nearfield applications while providing excellent voice and music reproduction, long-lasting reliability and withstanding exposure to challenging environmental conditions.

Description

The FS12T-BT60 is a two-way, full-range loudspeaker system engineered for nearfield applications while providing excellent voice and music reproduction. It was designed to withstand exposure to environmental conditions and provide long-lasting reliability.

It incorporates a 12" LF driver and 1" HF driver concentrically mounted to a high-directivity waveguide. It provides 60° conical coverage and is tuned for optimal source reproduction.

The unit is constructed using molded linear low-density polyethylene (LLDPE), creating an incredibly strong yet lightweight enclosure. The unit includes a stainless steel U-bracket and fly-points allowing for easy mounting. Input is via an integrated 70.7V transformer with low insertion loss and full frequency response with power taps up to 200-watts including an 8Ω bypass. The transformer is discretely mounted under the rear cover for weather protection. The finish is neutral “battle ship grey” that is UV resistant and allows for years of durability.

Features

Low-density polyethylene (LLDPE) enclosures allow for years of durability
Finished in a neutral, UV resistant "battle ship grey"
Incredibly strong lightweight enclosure
Stainless steel U-bracket for easy mounting
Fly-points for applications requiring the loudspeakers to be flown 
70.7V transformer with low insertion loss and full frequency response

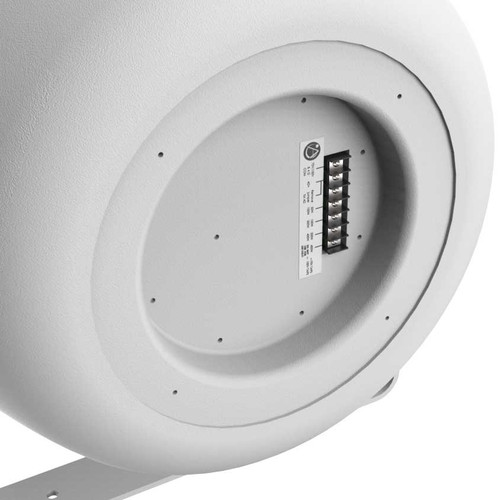

Transformer discretely mounted under the rear cover for weather protection
Each long throw model and subwoofer have power taps up to 200W
Single short throw version has power taps up to 100W

Specifications

Power Taps	200, 100, 50, 25 Watts & 8Ω bypass
Sensitivity	93.5dB SPL
Frequency Response	62Hz - 14kHz
Driver Type	1" HF and 12" LF
Environment	IP45
Dispersion	60º H x 60º V
MAX SPL	116.5dB SPL
Dimensions (H x W x D)	19.56" (497 mm) x 18.5" (469 mm) x 18.5" (469 mm)
Weight	39 lbs (17.69 kg)
Shipping Weight	52 lbs (23.59 kg)
