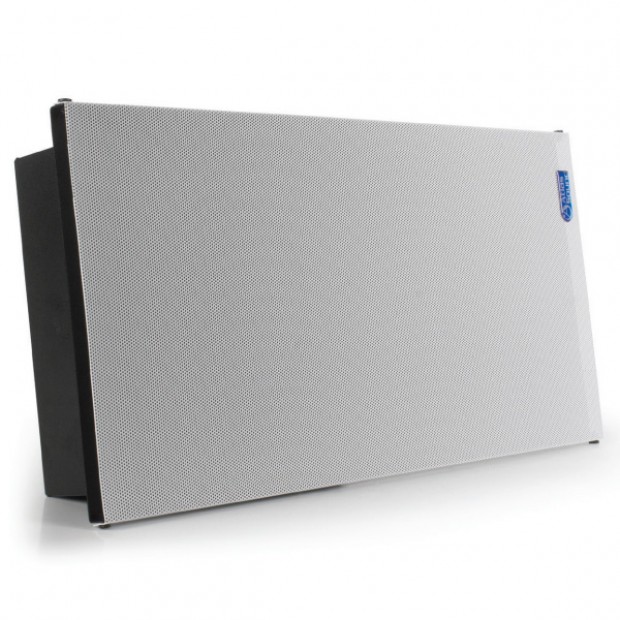

Atlas Sound I128SYSM+ 1' x 2' Suspended Ceiling Mount IP Loudspeaker with Paging Microphone (Discontinued)

Part #:
I128SYSM+
Model #:
I128SYSM+
Availability: This model has been replaced.
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The Atlas I128SYSM+ 1’ x 2’ Suspended Ceiling Mount IP Loudspeakers with Talkback can leverage the VoIP Communication solution to extend tele-presence with enhanced audio for those environments where network-wide communication is desired.

Description

The Atlas I128SYSM+ 1’ x 2’ Suspended Ceiling Mount IP Loudspeakers with Talkback can leverage the VoIP Communication solution to extend tele-presence with enhanced audio for those environments where network-wide communication is desired and that require large loudspeakers with high output to overcome high ambient noise areas or large spaces.

Atlas I128SYSM+ registers as a communication endpoint directly within InformaCast, and SA-Announce Advanced Notification applications, supporting audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded, scheduled announcements, & intercom, while leveraging the WAN/LAN Network Architecture.

When used within a Cisco Environment, these same IP loudspeakers from AtlasIED can join Cisco’s Unified Survivable Remote Site Telephony (SRST) as a supported device within SRST endpoint Architecture. Cisco’s SRST provides remote location call-processing redundancy when access to the centralized Cisco Unified Communications Manager is interrupted because of a WAN outage. The ability of LAN communication between any combination of phones and loudspeakers is particularly critical during an emergency (which may be the actual cause of the WAN outage).

Where 3rd party notification applications are not required, the I128SYSM+ loudspeakers can register as SIP devices directly to a SIP server or VoIP Communications Manager for critical alerts /public address applications and two-way communication.

Ideal for Corporate Applications, Education Institutions, Entertainment Complexes, Industrial Facilities, Government Buildings, Healthcare Facilities, Houses of Worship, Transportation Hubs - anywhere critical alerts / public address needs exist, and prefer using a single enterprise-class communications platform.

Features

Network:

  • Dynamic or Static IP Address
  • IEEE 802.3 10/100Base-T Ethernet
  • IEEE 802.1q Tagging
  • IEEE 802.11AT Compliant
  • VoIP Standard Audio: G.711 u-law/a-law (64 kbit/s) or G.729 Wideband Audio (64 kbit/s)
  • Auto Provisioning: DHCP Option 66, 150, or TFTP Server or DHCP Option 72 for HTTP Server
  • Auto Registration: SLP for InformaCast or DHCP Option 72 for SA-Announce or GCK
  • Static Configuration: HTTP GUI for Static Configuration or Cisco SRST

Audio:

  • Integrated Amplifier 15-Watt Total Power: Primary Speaker Output 8 ohm
  • Aux Audio Line-In Unbalanced (2.8Vpp 10K)
  • Aux Audio Line-Out Unbalanced (2.8Vpp 10K)

Additional:

  • 2 General Purpose Inputs
  • 1 General Purpose Output (2A @ 30 VDC)
  • Phone/Night Loud Ringer
  • External Power Supply Option

Specifications

Loudspeaker
Speaker Size 8" (203 mm)
Power Handling 15 Watts
Sensitivity (SPL @ 1W/1M) 94dB
Frequency Response 86Hz - 15.5kHz
Dispersion 105˚
Cone Material Curvelinear, Treated Industrial Paper
Voice Coil Diameter 1" (25 mm)
Amplifier / Control
Power Rating (RMS) 15 Watts Max (802.3AT)
Inputs RJ-45 Female
Outputs Two x Secured Screw Terminal Block
AC Power Input PoE or PoE+ and External 24VDC
Microphone
Directivity Omnidirectional
Impedance Less than 2.2kΩ
Frequency Range 20Hz – 20kHz
Enclosure
Color White
Grille Material Powder coated steel with 22-gauge perforated steel
Baffle Material 18-gauge Corrosion-Resistant Zinc Plated Steel
Mounting/Rigging Provisions Lay-In Into A Reflected Ceiling Grid
Dimensions (H x W x D) 11.94" (303 mm) x 23.67" (601.2 mm) x 5.06" (129 mm)
Weight 10 lbs (4.54 kg)
Shipping Weight 12.8 lbs (5.81 kg)
