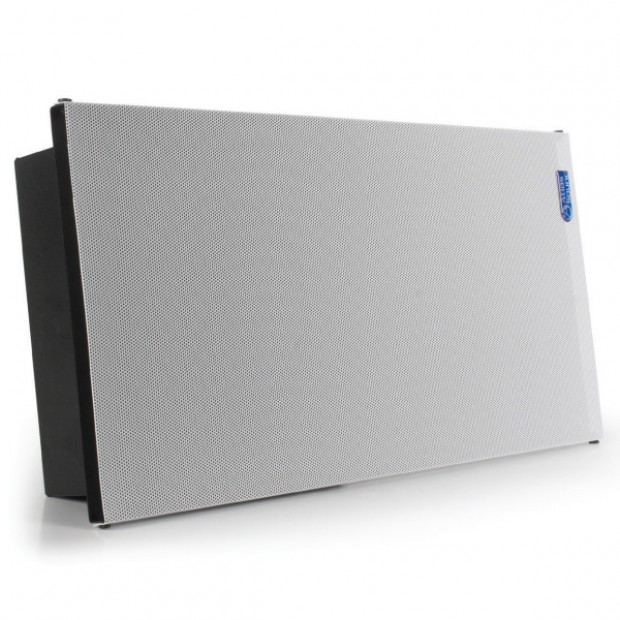

Atlas Sound I128SYSM+ 1' x 2' Suspended Ceiling Mount IP Loudspeaker with Paging Microphone (Discontinued)
Usually arrives in 5-9 business days.
The Atlas I128SYS+ 1’ x 2’ Suspended Ceiling Mount IP Loudspeakers can leverage the VoIP Communication solution to extend telepresence with enhanced audio for those environments where network-wide communication is desired.
Atlas I128SYS+ 1’ x 2’ Suspended Ceiling Mount IP Loudspeakers can leverage the VoIP Communication solution to extend tele-presence with enhanced audio for those environments where network-wide communication is desired and that require large loudspeakers with high output to overcome high ambient noise areas or large spaces.
Atlas I128SYS+ registers as a communication endpoint directly within InformaCast, and SA-Announce Advanced Notification applications, supporting audio broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded, & scheduled announcements, while leveraging the WAN/LAN Network Architecture.
When used within a Cisco Environment, these same IP loudspeakers from AtlasIED can join Cisco’s Unified Survivable Remote Site Telephony (SRST) as a supported device within SRST endpoint Architecture. Cisco’s SRST provides remote location call-processing redundancy when access to the centralized Cisco Unified Communications Manager is interrupted because of a WAN outage. The ability of LAN communication between any combination of phones and loudspeakers is particularly critical during an emergency (which may be the actual cause of the WAN outage).
Where 3rd party notification applications are not required, the I128SYS+ loudspeakers can register as SIP devices directly to a SIP server or VoIP Communications Manager for critical alerts /public address applications.
Ideal for Corporate Applications, Education Institutions, Entertainment Complexes, Industrial Facilities, Government Buildings, Healthcare Facilities, Houses of Worship, Transportation Hubs - anywhere critical alerts / public address needs exist, and prefer using a single enterprise-class communications platform.
Network:
Audio:
Additional:
| Loudspeaker | |
|---|---|
| Speaker Size | 8" (203 mm) |
| Power Handling | 15 Watts |
| Sensitivity (SPL @ 1W/1M) | 94dB |
| Frequency Response | 86Hz - 15.5kHz |
| Dispersion | 105˚ |
| Cone Material | Curvelinear, Treated Industrial Paper |
| Voice Coil Diameter | 1" (25 mm) |
| Mounting/Rigging Provisions | Lay-In Into A Reflected Ceiling Grid |
| Enclosure | |
| Baffle Material | 18-gauge Corrosion-Resistant Zinc Plated Steel |
| Grille Material | Powder coated steel with 22-gauge perforated steel |
| Color | White |
| Amplifier / Control | |
| Power Rating (RMS) | 15 Watts Max (802.3AT) |
| Inputs | RJ-45 Female |
| Outputs | Two x Secured Screw Terminal Block |
| AC Power Input | PoE or PoE+ and External 24VDC |
| Dimensions (H x W x D) | 11.94" (303 mm) x 23.67" (601.2 mm) x 5.06" (129 mm) |
| Weight | 10 lbs (4.54 kg) |
| Shipping Weight | 12.8 lbs (5.81 kg) |
