Atlas Sound IPCSD1 Digital Microphone Station with Dante Message Channels
The AtlasIED IPCSD1 is a push-to-talk switch only digital microphone station designed to work within a GLOBALCOM®.IP system. It is a network appliance with a unique IP address that requires no configuration. It uses a single Ethernet interface for audio and control data. This microphone station is fully compatible with IEEE 802.3af standard for Power over Ethernet (PoE), allowing it to be powered directly from any standard off-the-shelf PoE switch.
The IPCSD1 utilizes Dante™ technology for transporting high-quality, low-latency digital audio over Ethernet. The microphone station may be used for emergency evacuation and life safety systems. Instead, in a dual-use system, these microphone stations may be used for everyday paging functions.

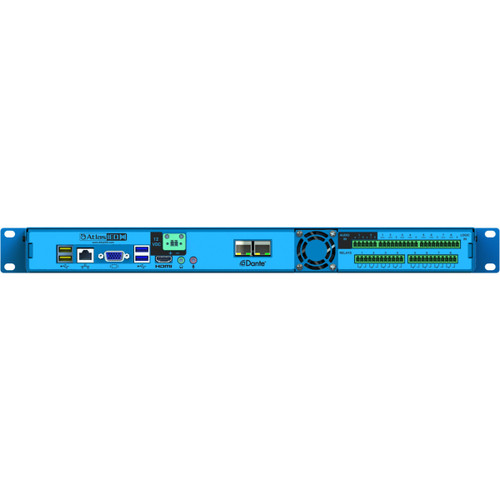

It is compatible with IP108-D or IP116-D ACS™ Controllers with Dante™ capability.
| Frequency Response | +2dB, -5dB (22Hz - 22kHz, Input Level) |
|---|---|
| THD | |
| SNR | >85dB (22Hz - 22kHz, Input Level) |
| Sample Rate | 48kHz |
| Compression Threshold | -14dBu |
| Operating Temperature Range | +32˚F to +104˚F (0˚C to +40˚C) |
| Storage Temperature Range | -40˚F to +158˚F (-40˚C to +70˚C) |
| Analog-to-Digital Converter | 24 Bit |
| Supply Voltage | 48VDC |
| Power Consumption | < 4W |
| Dimension (H x W x D) | 4.95" (125.7 mm) x 4.95" (125.7 mm) x 1.9" (48 mm) |
