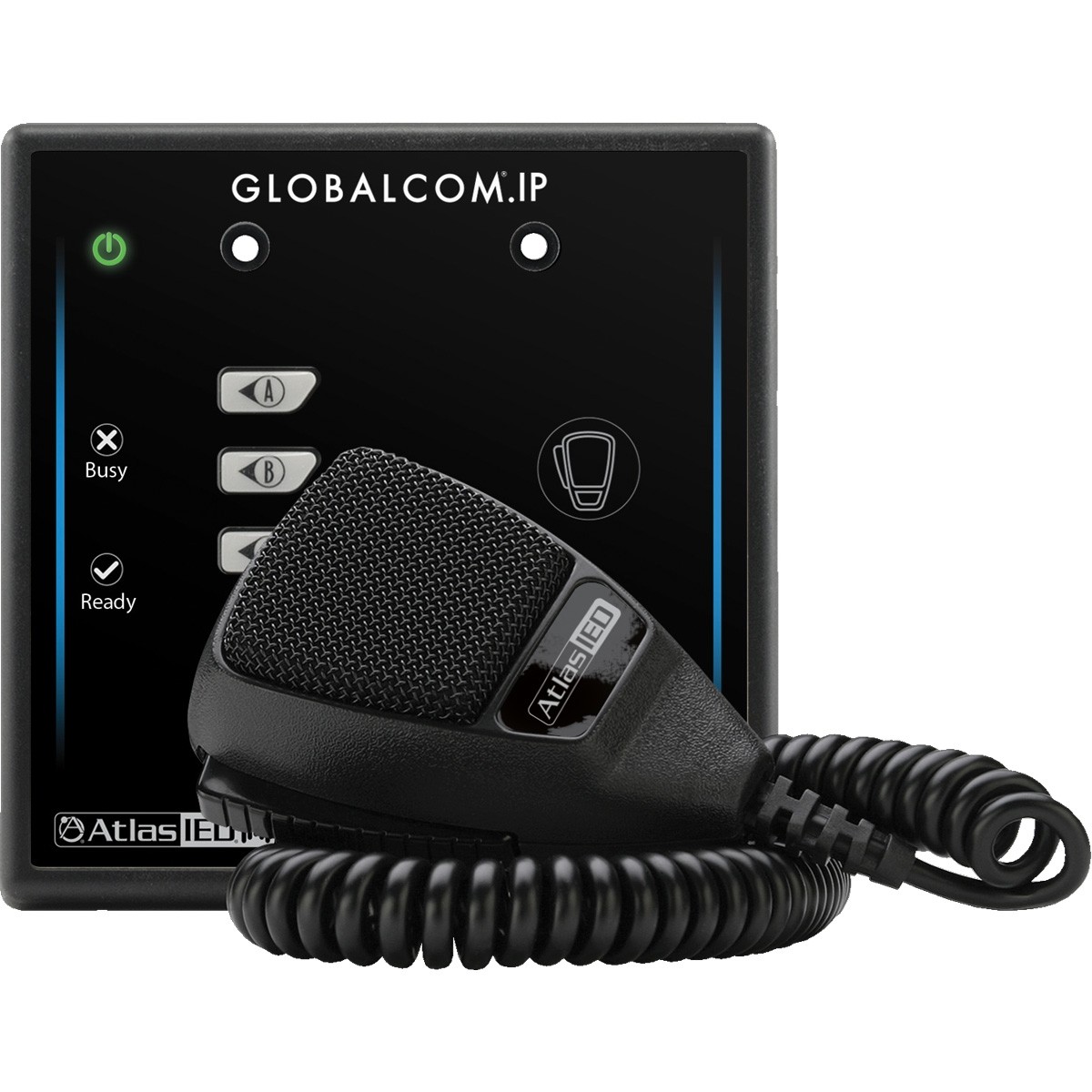

Atlas Sound IPCSD4 4-Button Digital Microphone Station
with Dante Message Channels
The AtlasIED IPCSD4 digital microphone station is a 4-button device for initiating audio / visual announcements, messages and pages with the GLOBALCOM®.IP IP108-D or IP116-D Announcement Control Systems. The microphone station uses a single Ethernet interface for audio and control data. It is fully compatible with IEEE 802.3af standard for Power over Ethernet (PoE), allowing the microphone station to be powered directly from any standard off-the-shelf PoE switch.
The IPCSD4 utilizes Dante™ technology for transporting high-quality, low-latency digital audio over Ethernet. The microphone station may be used for emergency evacuation and life safety systems. Instead, in a dual-use system, these microphone stations may be used for everyday paging functions.
It is compatible with IP108-D or IP116-D ACS™ Controllers with Dante™ capability.
| Frequency Response | +2dB, -5dB (22Hz - 22kHz, Input Level) |
|---|---|
| THD | |
| SNR | >85dB (22Hz - 22kHz, Input Level) |
| Sample Rate | 48kHz |
| Compression Threshold | -14dBu |
| Operating Temperature Range | +32˚F to +104˚F (0˚C to +40˚C) |
| Storage Temperature Range | -40˚F to +158˚F (-40˚C to +70˚C) |
| Analog-to-Digital Converter | 24 Bit |
| Supply Voltage | 48VDC |
| Power Consumption | < 4W |
| Dimension (H x W x D) | 4.95" (125.7 mm) x 4.95" (125.7 mm) x 1.9" (48 mm) |
