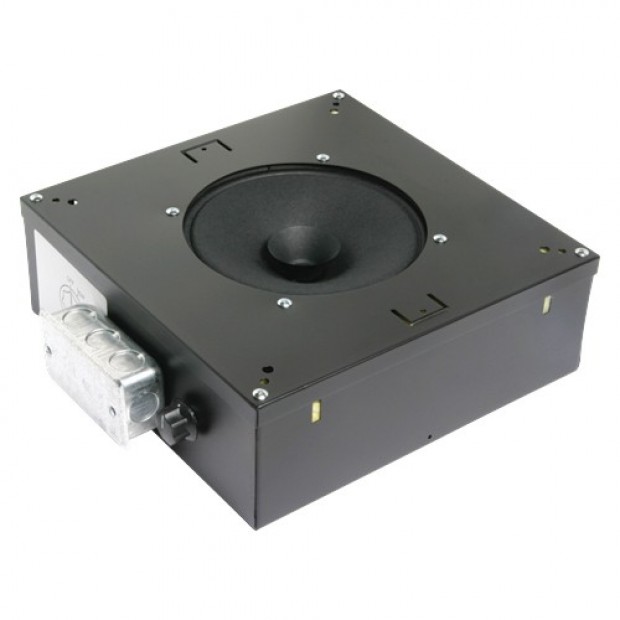

Atlas Sound M812-S2T7-BX-RS 8" Sound Masking Speaker
with 5W 70V Transformer and Enclosure
The M812-S2T7-BX-RS square enclosure offers a cubic content of 529 cubic inches (.087 m3) C10A, 8" diameter loudspeaker and a 70.7 V (T7) transformer. The loudspeaker's mounting plate contains no perforated grille and thus positions the speaker cone as fully exposed.
The Atlas Sound M812-S2T7-BX-RS 8" sound masking speaker allows upward sound dispersion and includes two 23.75" (603 mm) channel support rails and the necessary hardware for installation in T-Bar ceilings. Heavy-gauge CRS enclosure is acoustically treated with undercoating and 11.5 lbs/ft3 density fiberglass to absorb the resonance associated with high-frequency sound transmission. Unit is finished in black epoxy.
Factory-mounted and wired 70.7V (T7) transformer is supplied with .5, 1, 2, and 5 Watt primary taps. Taps are externally accessible to facilitate power selection without dismantling the assembly.
The enclosure offers a cubic content of 529 in3 (.087 m3) C10A, 8" Diameter loudspeaker, and a 70.7V (T7) transformer. Loudspeaker mounting plate contains no perforated grille and thus positions the speaker cone as fully exposed.
