AtlasIED THD72WC 8" Loudspeaker Package with Transformer and Baffle

Description

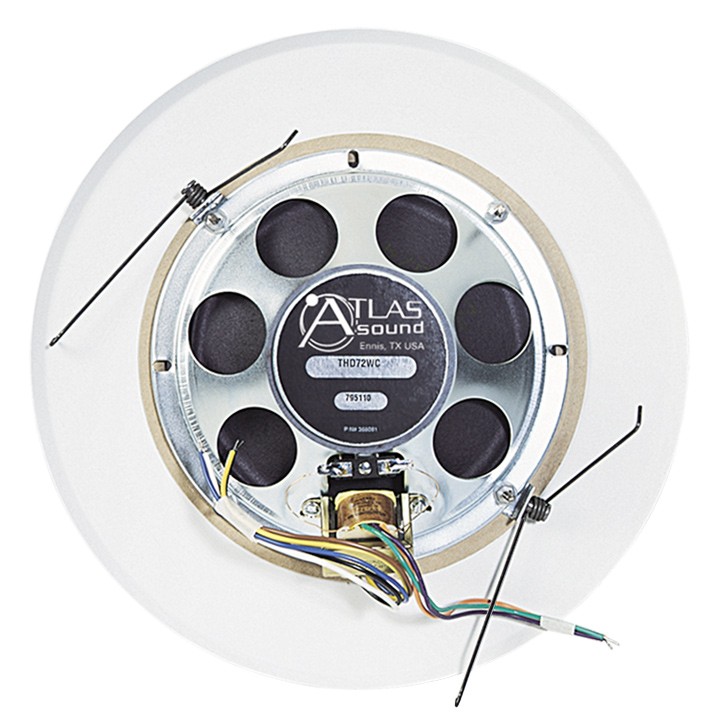

The THD72WC are cost-effective 8" dual-cone loudspeaker assemblies which deliver wide frequency response for general purpose voice and music reproduction. Units are shipped complete with grille and 25/70.7-volt transformer factory wired to reduce field installation time and expense. HD Series models have a power rating of 25 watts and are mounted to a T62-8 torsion mount baffle. It will accept optional protective enclosures and mounting accessories to meet installation and code requirements.

Features

• Equipped with 25, 70.7, 25/70.7V Transformer
• EZ Versions Available with Pre-Mounted Brackets and Rails for Quick Assembly in Standard 2 x 4 Suspended Tile Ceilings
• Decrease Installation Time and Expense with Pre-Assembled Loudspeaker, 15 or 25W Transformer & Baffle Combinations

Specifications

Speaker Type	Treated Paper
Frequency Response	100Hz - 10kHz
Power Taps	.5, 1, 2, & 4 Watts
Dispersion	105°
Sensitivity	97dB Peak, 94dB Average
Shipping Weight	4.50 lbs (2.04 kg)
Dimensions (Dia x D)	8" (20.32 cm) x 2.88" (7.30 cm)

DOCUMENTS

In The Box

• Pre-Assembled Loudspeaker
• Transformer
• T62-8 Baffle
