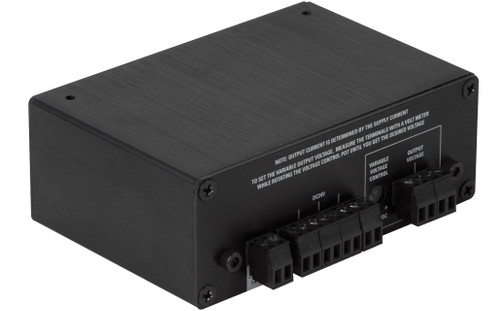

The Atlas Sound TSD-DCPDV Variable DC Power Distribution is designed to distribute power to TSD devices or other equipment requiring DC power and is also ideal for use with wireless microphones that typically require 12-18VDC PSUs. Rear panel includes one 9-24V input for a user selectable power supply up to 2500mA, four fixed 24V outputs and two 5-24V variable outputs.

Description

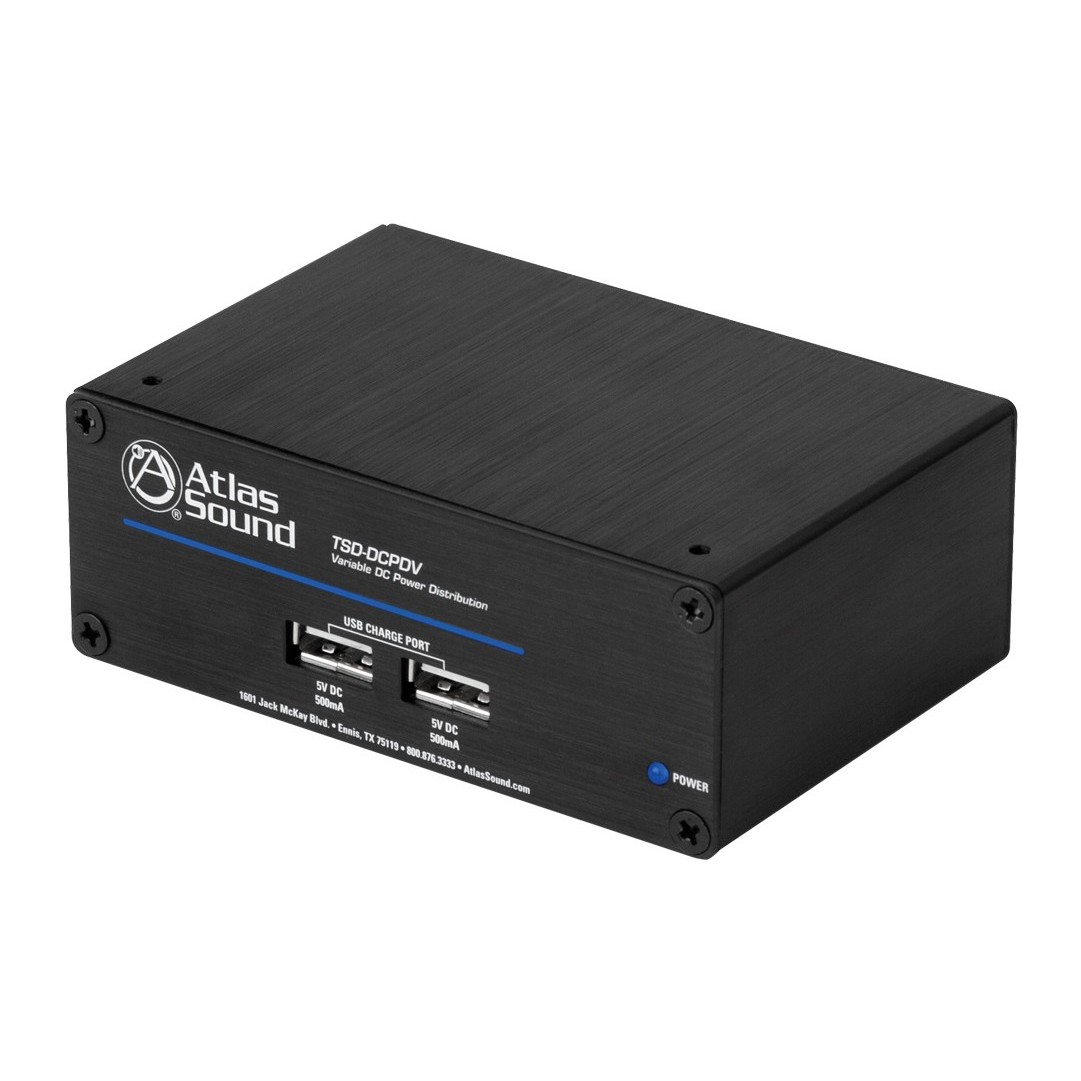

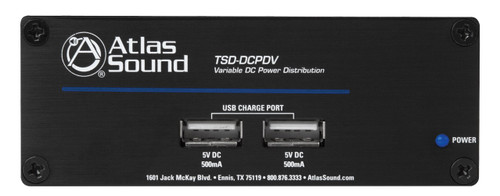

The TSD-DCPDV is designed to distribute power to TSD devices or other equipment requiring DC power and is also ideal for use with wireless microphones that typically require 12-18VDC PSUs. Rear panel includes one 9-24V input for a user selectable power supply up to 2500mA, four fixed 24V outputs and two 5-24V variable outputs. Voltage for variable outputs is adjusted from a secure trim pot. In addition, two front panel USB ports are available for charging other devices or for USB style rack lighting.

Unit requires Power Supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements. This unit has a power requirement of 20mA but the power requirements of attached TSDs must be accounted for when selecting the proper power supply. For multiple TSD applications use the TSD Power Calculator to determine the proper power supply needed.

Features

Power Distribution for Multiple TSDs From a Single Power Supply
1 in 6 Out Configuration
Four (4) Independent 24V Outputs
Two (2) 5V to 24V Variable Outputs
Two (2) 5V DC USB Charge Ports
DC Filtering and Isolation Per Channel
Output Voltage - Variable & Fixed Ports
Output Current: Power Supply Current Selection is Dependent on the Number of Devices Connected to the DCPDV and Their Accumulative Current Consumption
Separate Ground Connections
Energy Efficient

Specifications

DC Voltage Input	1A - 3A, 24V DC, 3A Max
DC Voltage Output Fixed USB	24V DC, Current Output Related to Input Power Supply and Load
DC Voltage Output Fixed USB	5V DC, 500mA Each Power Supply and Load
DC Voltage Variable	Qty 2, Ports 1 Adjustable Voltage, Variable DC Output 5V - 24VDC
Dimensions (H x W x D)	1.5" (3.81 cm) x 4" (10.16 cm) x 2.5" (6.35 cm)
Weight	6 oz (0.165 kg)
