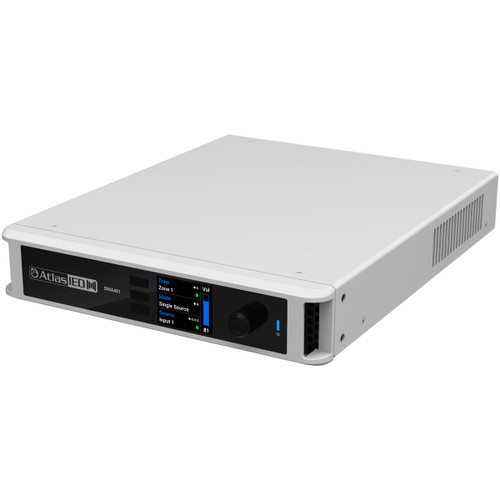

AtlasIED DMA401 1-Zone 400W Digital Mixer Amplifier
The DMA401 1-zone 400W digital mixer amplifier with Bluetooth is engineered for high-power commercial installations that require reliable performance, system expandability, and precise audio control. Factory-configured as a traditional mixer amplifier, it operates immediately out of the box without software, enabling fast and predictable installs. Its compact 1 RU half-rack chassis with included rack kit and intelligent cooling integrates seamlessly into professional racks and cabinets.
With 400 W of output power, the DMA401 supports 2Ω, 4Ω, 8Ω, and constant-voltage 25V, 70.7V, and 100V speaker systems, delivering clear and consistent sound for distributed audio, background music, and high-output PA applications. Expanded input options, including balanced mic/line, optical audio, and WTSD Bus, allow remote placement of sources and accessories. Onboard DSP and factory loudspeaker presets ensure optimized audio performance.
The DMA401 is built for scalable system design. The proprietary Link Bus allows linking with LMA Series amplifiers for multi-zone configurations, subwoofer integration, and centralized audio management. Energy-efficient standby operation, global auto-sensing power supply, Push Here Diagnostic speaker verification, and compatibility with DMA-V and DMA-VS wall controllers make the DMA401 a high-power, versatile, and reliable solution for professional integrators.
- Features
Features
- 1-Zone 400W digital mixer amplifier with Bluetooth
- Supports 2Ω, 4Ω, 8Ω, 25V, 70.7V, and 100V speaker systems
- Factory-configured for immediate out-of-the-box operation
- Linkable with LMA amplifiers for multi-zone scalable systems
- Onboard DSP with AtlasIED loudspeaker presets
- 4x inputs: 2x Mic/Line/RCA, 1x Mic/Line/RCA/Optical, 1x WTSD remote input
- Priority mute GPI and energy-efficient 1 W standby
- Compatible with DMA-V and DMA-VS remote wall controllers
- Push Here Diagnostic (PHD) speaker verification
- Compact gray 1/2 rack chassis with included rack kit
- Specification
Output Power 400W @ 4Ω, Ω, 70.7V, 100V, 350W @ 25V, 2Ω Frequency Response 20 Hz-20 kHz (+0/-1.5 dB) in 2-, 4-, 8-Ohm, 25V Modes
50 Hz-20 KHz (+0/-1.5 dB) in 70.7V, 100V ModesPower Consumption 0.4W Standby Mode, 9.7W Active Idle Mode, 417.2W Full Load - 70V Voltage Compatibility Universal Type Digital Mixer Amplifier, 1 Zone with Zone Link output Amplifier Topology Class D Power @ 4Ω, 8Ω, 70.7V, 100V - 400W
@ 25V - 350W
@ 2Ω - 350WInput Type Inputs 1, 2 and 3 RCA (summed) and Euroblock
Input 3: Optical TOSLINK, WTSD: RJ45Input Connector Type RCA (summed), Euroblock, TOSLINK, RJ45 Input Impedance 20 kΩ (Balanced), 10 kΩ (unbalanced) Input Sensitivity 775 mV Balanced, 316 mV RCA Adjustable Dimensions (H x W x D) 1.75" (44.5 mm) x 8.5" (215.9 mm) x 11.23" (285 mm) Weight 5.3 lbs (2.4 kg) - Documents
