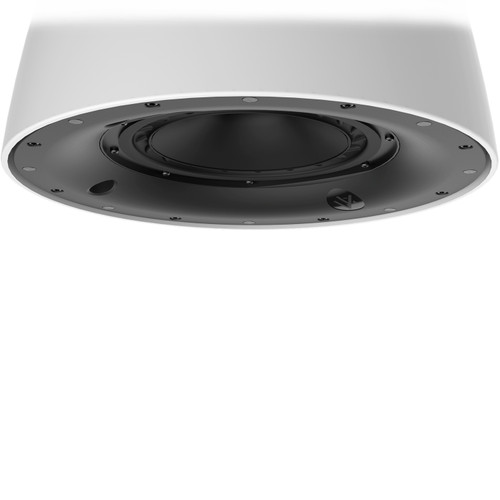

The FP-6T-W 6" IsoFlare premium pendant loudspeaker brings Atlas+Fyne's advanced point source technology to open-ceiling commercial environments where exceptional audio quality and consistent coverage are essential. Designed for hospitality venues, corporate spaces, educational facilities, retail environments, and other architecturally exposed installations, the FP-6T-W delivers the same sonic character and performance as the IsoFlare ceiling and surface-mount series, providing seamless integration across mixed-format audio systems. Its constant 100° dispersion ensures uniform coverage, outstanding speech intelligibility, and natural musical reproduction throughout the listening area.
At the heart of the FP-6T-W is the proprietary IsoFlare point source driver, which aligns the low- and high-frequency drivers on a common acoustic center for exceptional phase coherence, precise stereo imaging, and balanced off-axis performance. Premium crossover components, a ferrofluid-cooled titanium compression driver with neodymium magnet, and Fluted Surround Technology work together to reduce distortion, improve transient response, and deliver accurate, natural sound. The weather-treated multi-fiber cone and optimized baffle further enhance tonal consistency while minimizing diffraction and coloration.
The FP-6T-W includes an integrated 60W low insertion loss 70V/100V transformer with an easy-access tap selector, allowing seamless integration into both distributed and low-impedance commercial audio systems. Compatible with the AtlasIED Atmosphere platform for optimized loudspeaker voicing presets, the FP-6T-W offers exceptional performance, installation flexibility, and long-term reliability for premium pendant loudspeaker applications.
| Type | Two-Way, Full Range, Pendant Loudspeaker |
|---|---|
| Nominal Coverage Angle | 100° (-6 dB) |
| Nominal Impedance | 8 Ohms |
| Power Handling | Average: 80W, Program: 160W, Peak: 320W |
| Rated Maximum SPL | Average: 110 dB, Peak: 116 dB |
| Transformer Taps | 60W, 30W, 15W, 7.5W (3.8W 70V) & Low Z operation |
| Frequency Range | 50 Hz - 20 kHz (-10 dB) |
| Frequency Response | 62 Hz - 19 kHz (+/-3 dB) |
| System Sensitivity (1W @ 1m) | 91 dB |
| Color | White |
