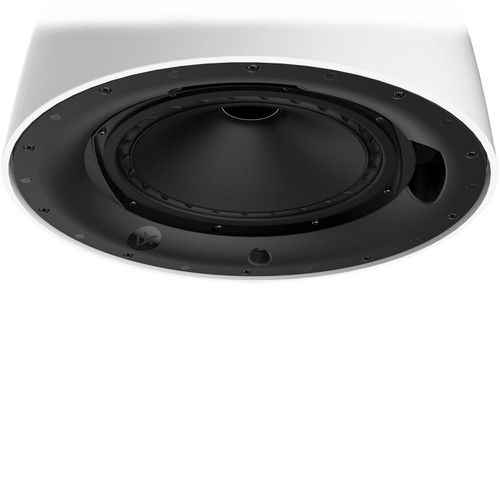

The FP-8T-W 8" IsoFlare premium pendant loudspeaker brings Atlas+Fyne's renowned point source technology to suspended commercial audio installations where ceiling speakers or surface-mounted loudspeakers are not practical. Designed for premium hospitality, corporate, education, retail, and public venues, the FP-8T-W provides the same consistent voicing and acoustic performance as the IsoFlare FC ceiling and FS surface-mount series, making it ideal for mixed-system installations requiring seamless tonal consistency.
At the heart of the FP-8T-W is Atlas+Fyne's patented IsoFlare point source driver, positioning the low-frequency and high-frequency drivers on a common acoustic center to create a true spherical wavefront. This advanced design produces outstanding phase coherence, precise stereo imaging, exceptional speech intelligibility, and uniform 100° constant directivity throughout the listening area. Premium crossover components, including air-core inductors and polypropylene capacitors, preserve signal integrity, while the ferrofluid-cooled titanium compression driver with neodymium magnet delivers extended dynamic range and long-term reliability. Fluted Surround Technology further minimizes cone coloration for remarkably natural, transparent audio reproduction.
Built for professional commercial installations, the FP-8T-W incorporates a low insertion-loss 60W 70V/100V transformer with an easy-access tap selector for fast system configuration while remaining equally suitable for low-impedance applications. A weather-treated multi-fiber woofer, optimized smooth-transition baffle, and rugged pendant enclosure ensure dependable performance in demanding environments. Compatible with the AtlasIED Atmosphere platform, the FP-8T-W supports optimized loudspeaker presets for simplified commissioning and consistently exceptional sound quality.
| Type | Two-Way, Full Range, Pendant Loudspeaker |
|---|---|
| Nominal Coverage Angle | 90° (-6 dB) |
| Nominal Impedance | 8 Ohms |
| Power Handling | Average: 90W, Program: 180W, Peak: 360W |
| Rated Maximum SPL | Average: 112 dB, Peak: 118 dB |
| Transformer Taps | 60W, 30W, 15W, 7.5W (3.8W 70V) & Low Z operation |
| Frequency Range | 44 Hz - 30 kHz (-10 dB) |
| Frequency Response | 59 Hz - 25 kHz (+/-3 dB) |
| System Sensitivity (1W @ 1m) | 92 dB |
| Color | White |
