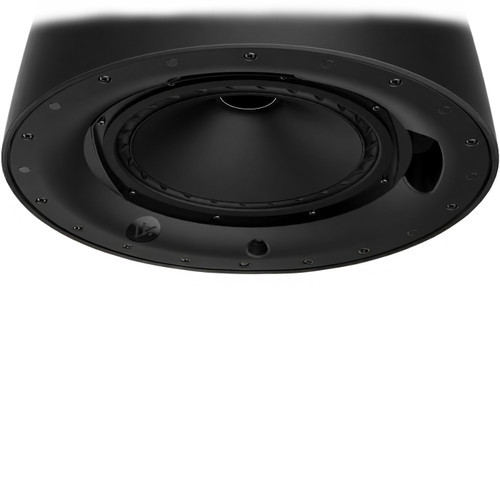

The FP-8THC-B is an 8-inch IsoFlare premium high ceiling pendant loudspeaker engineered to provide outstanding speech intelligibility, natural music reproduction, and focused sound coverage in open-ceiling commercial environments. Specifically designed for high-ceiling installations, it delivers consistent voicing with the AtlasIED IsoFlare FC ceiling and FS surface mount series, making it ideal for mixed-format audio systems in hospitality, retail, corporate, transportation, and other architecturally demanding spaces. Its sleek black finish blends discreetly into exposed ceilings and contemporary commercial interiors.
At the heart of the FP-8THC-B is Atlas+Fyne's advanced IsoFlare point source driver, where the low-frequency and high-frequency drivers share a common acoustic center to produce a coherent spherical wavefront. The result is exceptional phase accuracy, precise stereo imaging, excellent speech clarity, and controlled 75° directivity optimized for higher mounting heights. Premium crossover components, a ferrofluid-cooled titanium compression driver with a neodymium magnet, and Fluted Surround Technology work together to deliver transparent, balanced audio with impressive dynamic performance.
Designed for professional commercial installations, the FP-8THC-B features an integrated 60W low insertion loss 70V/100V transformer with an easy-access tap selector for distributed audio systems while also supporting low-impedance applications. A weather-treated multi-fiber cone, optimized smooth-transition baffle, and compatibility with the AtlasIED Atmosphere platform provide reliable long-term performance and optimized loudspeaker voicing for premium installed sound systems.
| Type | Two-Way, Full Range, Pendant Loudspeaker |
|---|---|
| Nominal Coverage Angle | 70° (-6 dB) |
| Nominal Impedance | 8 Ohms |
| Power Handling | Average: 90W, Program: 180W, Peak: 360W |
| Rated Maximum SPL | Average: 112 dB, Peak: 118 dB |
| Transformer Taps | 60W, 30W, 15W, 7.5W (3.8W 70V) & Low Z operation |
| Frequency Range | 44 Hz - 30 kHz (-10 dB) |
| Frequency Response | 59 Hz - 25 kHz (+/-3 dB) |
| System Sensitivity (1W @ 1m) | 92 dB |
| Color | Black |
