The AtlasIED SM82TEN is a white EN54-24 certified 8" 2-way surface-mount loudspeaker, delivering full-range sound with a weather-resistant design, TRX WaveGuide clarity, PolyGuard protection, and a 60W 70V/100V transformer.

Description

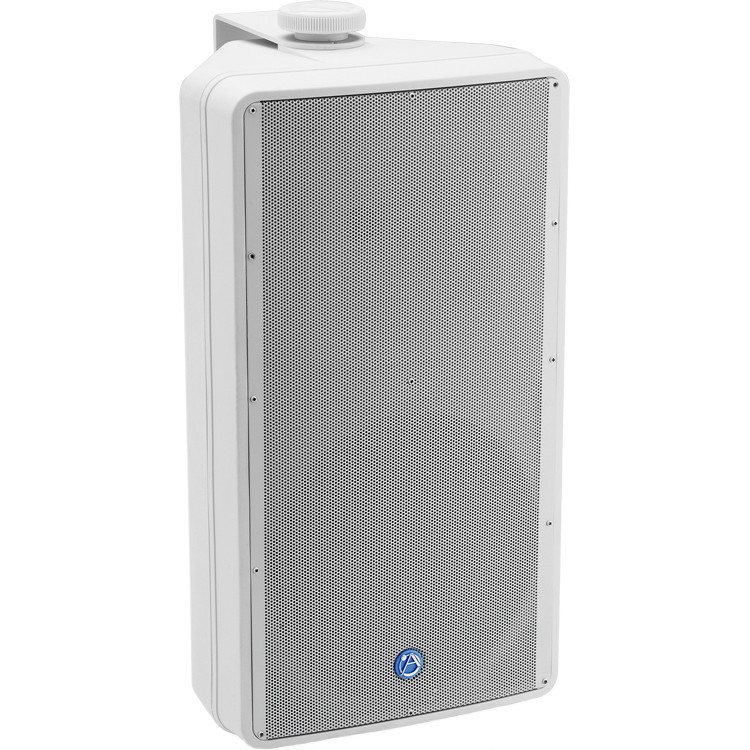

AtlasIED SM82TEN 8-Inch All-Weather Surface Mount White Loudspeaker

The SM82TEN is a professional-grade, EN54-24 certified 8-inch 2-way surface-mount loudspeaker designed for exceptional performance in both voice and music reinforcement. With a wide frequency response of 65Hz - 20kHz, this loudspeaker delivers powerful, balanced audio, while the TRX WaveGuide technology ensures smooth and consistent 65° x 65° coverage. Its PolyGuard circuit protects the high-frequency driver from transients, ensuring long-lasting reliability in demanding applications.

Built to withstand rigorous use, the SM82TEN features weather-resistant construction, including a UV-resistant injection-molded enclosure, a powder-coated aluminum grille, and all-brass hardware inserts. It is equipped with a highly efficient 8" Hycone-treated woofer and a 1" titanium compression driver for crystal-clear sound reproduction. A screwdriver-adjustable 60-watt 70V/100V transformer with multiple tap settings, plus an 8Ω bypass, provides maximum flexibility for distributed audio installations.

Finished in white with a matching heavy-duty "C" mounting bracket included, the SM82TEN offers versatile installation options, including compatibility with OmniMount 30 Series brackets and microphone stand mounting. Sold individually, it is an excellent choice for schools, houses of worship, retail environments, restaurants, and corporate spaces where premium sound and reliability are essential.

Features

  • 8" 2-way surface-mount loudspeaker, sold individually
  • EN54-24 certified and UL1480A listed for safety and compliance
  • White finish with color-matched heavy-duty "C" mounting bracket (included)
  • TRX WaveGuide technology for smooth, consistent 65° x 65° coverage
  • PolyGuard protection circuit safeguards the tweeter from damaging transients
  • Highly efficient 8" Hycone-treated woofer and 1" titanium compression driver
  • 60W 70V/100V transformer with adjustable taps and 8Ω bypass option
  • Weather-resistant construction with UV-resistant polypropylene enclosure and aluminum grille
  • Passed 100-hour salt spray test (ASTM B117) for durability
  • 0.25"-20 hardware inserts for security hardware and flexible mounting
  • OmniMount 30 Series compatible for additional installation options
  • 5-year warranty

Specifications

Power Rating (RMS) 150 Watts
Transformer Taps 1.9W, 3.8W, 7.5W, 15W, 30W, 60W, & Low Impedance (8Ω)
Frequency Response 65 Hz - 20 kHz (±3 dB)
Sensitivity (1W/4m) 92 dB
EN54-24 Sensitivity (1W/4m) 72 dB
Woofer Size 8" (203 mm)
Woofer Cone HYCONE Treated Paper
Woofer Surround Treated Cloth
Woofer Magnet 30 oz
Compression Driver Size 1" (25 mm)
Compression Diaphragm Material Titanium
Compression Driver Magnet 13.32 oz
Color White
Crossover Frequency 2.2 kHz
Crossover Type 1st Order Low Pass, 2nd Order High Pass
Dimensions (H x W x D) 16.50" (419 mm) x 7.99" (203 mm) x 8.43" (214 mm)
Shipping Weight 20 lbs (9.07 kg)
