- Description
Details

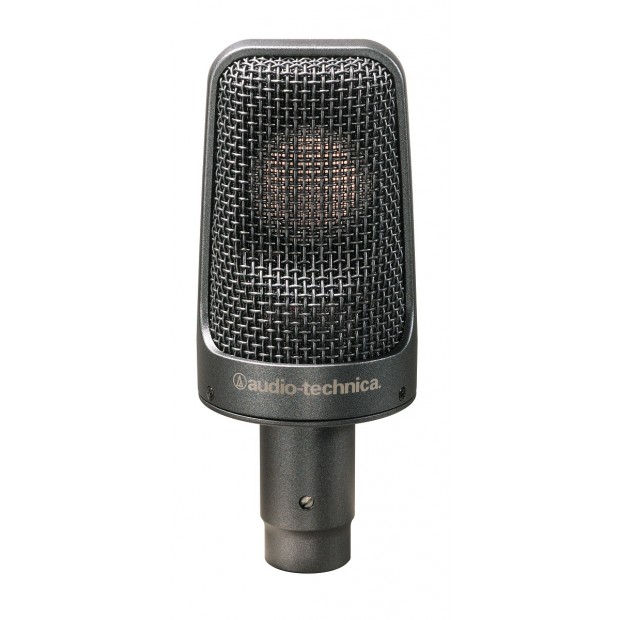

The Artist Elite AE3000 delivers supreme performance at extreme SPLs. This high-SPL large diaphragm cardioid condenser instrument mic excels in applications such as guitar cabinets, toms, snare, timpani and overheads. Its large-diaphragm capsule combines with the open architecture of the headcase to provide an extremely accurate and open sound. Its low-profile side-address design with tapered grille allows for optimal positioning.
- Features
Features
- Excels in high-SPL applications
- Large-diaphragm capsule combines with the open architecture of the headcase to provide an extremely accurate and open sound
- Low-profile side-address design with tapered grille allows optimal positioning of element vis-Ã -vis sound source
- Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
- Robust design for enduring dependability on the road
- Integral 80 Hz HPF switch and 10 dB pad
- Specification

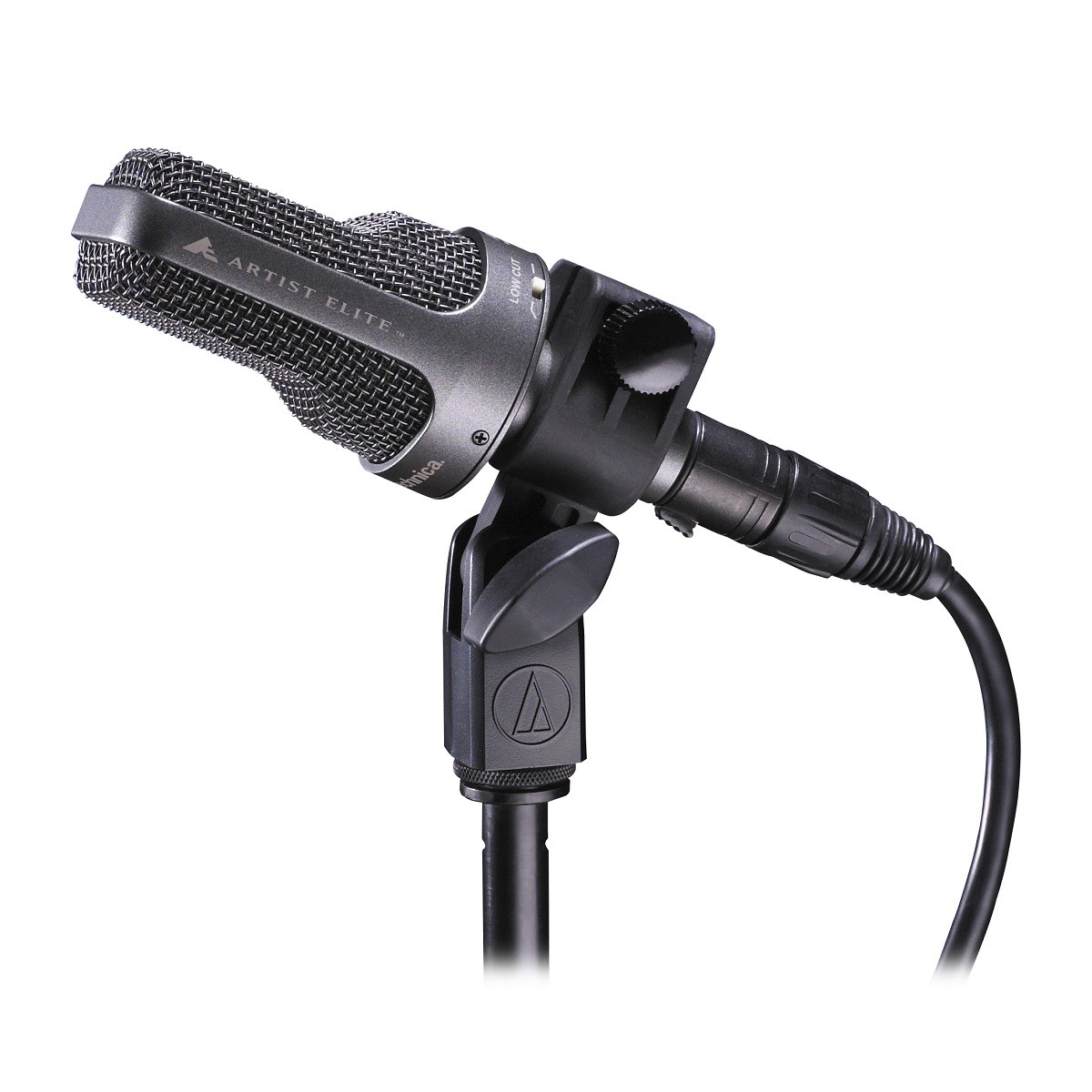

Element Fixed-Charge Back Plate, Permanently Polarized Condenser Polar Pattern Cardioid Frequency Response 20 - 20,000 Hz Low Frequency Roll-Off 80 Hz, 12 dB/octave Open Circuit Sensitivity -43 dB (7.0 mV) re 1V at 1 Pa Impedance 100 ohms Maximum Input Sound Level 148 dB SPL, 1 kHz at 1% T.H.D.;158 dB SPL, with 10 dB Pad (Nominal) Noise 11 dB SPL Dynamic Range (Typical) 137 dB, 1 kHz at Max SPL Signal-To-Noise Ratio 83 dB, 1 kHz at 1 Pa Phantom Power Requirements 11-52V DC, 3 mA Typical Switches High-Pass Filter;10 dB Pad (Nominal) Output Connector Integral 3-Pin XLRM-Type Accessories Furnished AT8471 Isolation Clamp for 5/8"-27 Threaded Stands; 5/8"-27 to 3/8"-16 Threaded Adapter Audio-Technica Case Style R6 Weight 0.375 lbs (0.170 kg) Dimensions (Dia x L) 1.89" (48 mm) x 4.55" (115.5 mm) - Documents
