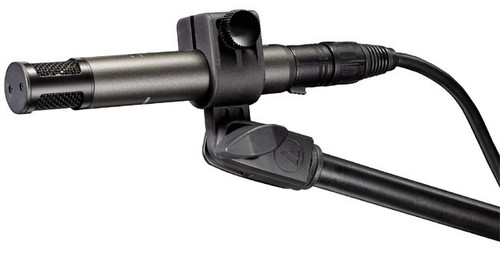

One of the new stars of the Artist Series remake, the ATM450 cardioid condenser offers an innovative side-address stick design for endless placement options and minimal obstructions. The microphone is equipped with an integral 80 Hz hi-pass filter that provides easy switching from a flat frequency response to a low-end roll-off. The ATM450 also features a switchable 10 dB pad that lowers the microphone's sensitivity, providing higher SPL capability for flexible use with a wide range of performers and system configurations. The microphone's extended flat frequency response makes it ideal for high SPLs as well as for live and amplified acoustic instruments. Includes a professional isolation clamp to provide secure mounting, versatile positioning and effective dampening of unwanted mechanical noise.
| Element | Fixed-charge back plate permanently polarized condenser |
|---|---|
| Polar Pattern | Cardioid |
| Frequency Response | 40 - 20,000 Hz |
| Low Frequency Roll-off | 80 Hz, 18 dB/octave |
| Open Circuit Sensitivity | -41 dB (8.9 mV) re 1V at 1 Pa |
| Impedance | 200 ohms |
| Maximum Input Sound Level | 152 dB SPL, 1 kHz at 1% T.H.D. |
| Dynamic Range (Typical) | 127 dB, 1 kHz at Max SPL |
| Signal-To-Noise Ratio | 69 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 3.5 mA typical |
| Switches | Flat, roll-off; 10 dB pad |
| Output Connector | Integral 3-pin XLRM-type |
| Accessories Furnished | AT8471 isolation clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; windscreen |
| Dimensions (L x Dia) | 5" (126.9 mm) x 0.83" (21 mm) |
| Weight | 0.22 lbs (0.98 kg) |
