Audio-Technica AEW-5244a Dual Wireless Microphone System with Two Cardioid Microphones (Discontinued)

Description

Details

Designed for use on professional tours, in stadiums, concert halls, houses of worship and other demanding audio environments, Audio-Technica's dual-receiver Artist Elite® 5000 Series provides incredible audio quality and proven, critically acclaimed performance for artists, broadcasters and presenters worldwide.

The newly upgraded 5000 Series sets standards for wireless live sound, with its dual-compander circuitry that processes high and low frequencies separately. It also features A-T's proprietary IntelliScan™ capability, 996-channel frequency agility, True Diversity operation, soft-touch controls, digital Tone Lock™ squelch, backlit LCD displays on all transmitters, and locking battery doors on the UniPak® body-pack transmitters.

With two independent True Diversity receivers in a single full-rack housing, the 5000 Series conserves rack space while providing outstandingly reliable and flexible performance. Receivers may be linked to form a complete system in which the built-in IntelliScan capability automatically determines and sets the best available frequencies on all linked receivers. Equipped with Ethernet ports, the 5000 Series receiver allows computer management and control from anywhere via new wireless control software; access computer control from a front-of-the-house rack in the same room, or clear across the country, making it truly a 21st century product.

Multiple system configurations are available, with handheld vocal microphone/transmitters and UniPak® body-pack transmitters designed for use with lavalier, headworn and instrument microphones as well as electric guitars.

Features

Features

Two independent receivers in a single housing
200 selectable UHF channels per band and True Diversity reception for interference-resistant operation
IntelliScan™ feature automatically finds and sets best available frequencies on all linked receivers
On-board Ethernet interface for monitoring and controlling system parameters with included AEW Control Interface software
Advanced digital Tone Lock™ squelch effectively blocks stray RF; the digitally encoded tone also communicates transmitter data for receiver display
Dual Compander circuitry processes high and low frequencies separately for unmatched audio quality
1/4" external mute switch jack allows user to mute the system quickly and easily
AC pass-through allows daisy-chain AC hookup with included IEC jumper cables
Link and coordinate multiple receiver channels
High-visibility white-on-blue LCD information display
Metal full-rack receiver chassis with reinforced mounting ears and rear rack mount capability
All transmitters offer rugged, ergonomic metal bodies, programmable features, soft-touch controls, and 10 mW/35 mW switchable RF power
All components store up to five preset configurations, with customized "names" if desired

Specification

Overall System
Operating Frequencies	UHF Band C: 541.500 MHz to 566.375 MHz (996 Frequencies)
Frequency Stability	±0.005%, Phase Lock Loop Frequency Control
Minimum Frequency Step	25 kHz
Modulation Mode	FM
Normal Deviation	±5 kHz
Operating Range	300' Typical
Operating Temperature Range	41° F (5° C) to 113° F (45° C)
Frequency Response	70 Hz to 15
Receiver
Receiving System	Dual Independent RF Sections, Automatic-Switching Diversity
Image Rejection	60 dB Typical
Signal-To-Noise Ratio	115 dB at 40 kHz Deviation (IEC-Weighted), 75 kHz Maximum Modulation
Total Harmonic Distortion	<=1% (10 kHz Deviation at 1 kHz)
Sensitivity	20 dBµV (S/N 70 dB at 5 kHz Deviation, IEC-Weighted)
Intermediate Frequency	65.75 MHz, 10.7 MHz
Audio Output - Microphone	25 mV (at 1 kHz, ±5 kHz Deviation, 10k ohm Load), Transformer Isolated and Balanced (ATTN Switch at "0")
Audio Output - Instrument	50 mV (at 1 kHz, ±5 kHz Deviation, 10k ohm Load), Transformer Isolated and Balanced (ATTN Switch at "0")
Audio Output Attenuator (ATTN)	Three-Position Switch: 0 / -6 / -12 dB
Output Connectors (Microphone)	XLRM-Type, Balanced
Output Connectors (Instrument)	1/4" (6.3 mm) TRS Balanced Phone Jack
Headphone Output	Connector: 1/4" (6.3 mm) TRS ("Stereo") Phone Jack. Power Output: 10 mW + 10 mW into 32 ohms (at 1 kHz, ±5 kHz Deviation); Maximum Output: 220 mW + 220 mW into 32 ohms. Headphones Switchable Between Channel 1 and Channel 2.
External Mute	1/4" (6.3 mm) TS Unbalanced Phone Jack, Each Channel
Antenna Power	DC 10V-12V, 20 mA (BNC-Type Jack)
Instrument	1/4" (6.3 mm) TRS Balanced Phone Jack
Computer Interface	Type: Ethernet, 10BaseT Mode Connector: RJ-45 Proprietary Software: Supplied on CD-ROM
Power Supply	100-240V AC 50/60 Hz, 15W
Pass-Through AC Power Outlet	100-240V AC 50/60 Hz, 5A Maximum
Dimensions (H x W x D)	1.74" (44.0 mm) x 18.98" (482.0 mm) x 10.85" (275.5 mm)
Net Weight	8.8 lbs (4.0 kg) (Without Accessories)
Accessories Included	Detachable IEC-Type AC Power Cable; Two Flexible UHF Half-Wave Antennas; Link Cable; IEC-Type AC Pass-Through Cable; Front-Mount Antenna Cables and Connectors; CD-ROM with Computer Control Interface Software

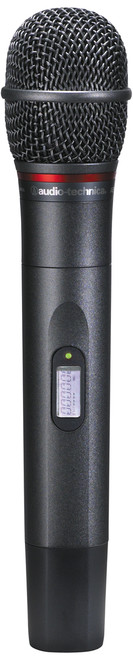

Handheld Transmitter
RF Power Output	High: 35 mW; Low: 10 mW, Nominal
Spurious Emissions	Under Federal Regulations
Dynamic Range	>=110 dB, A-Weighted
Microphone Element	Cardioid Dynamic
Batteries	Two 1.5V AA Alkaline (Not Included)
Current Consumption	High: 185 mA; Low: 165 mA, Typical
Battery Life	Approximately 6 Hours (High); 8 Hours (Low), Depending on Battery Type and Use Pattern
Accessory Included	AT8456a Quiet-Flex™ Stand Clamp
Dimensions (Dia x L)	9.33" (237.0 mm) x 1.89" (48.0 mm)
Net Weight	0.606 lbs (0.276 kg) (Without Batteries)
