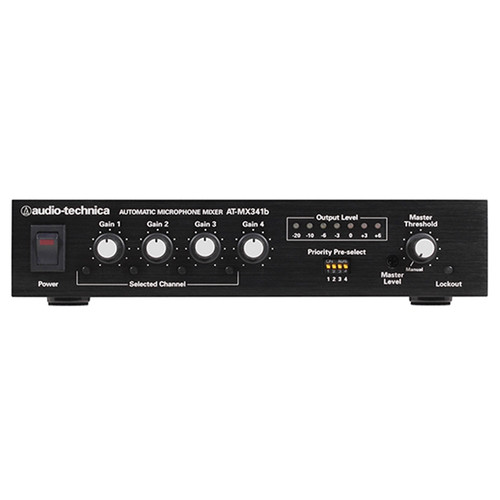

Audio-Technica AT-MX341b SmartMixer 4-Channel Automatic Mixer (Discontinued)
Audio-Technica AT-MX341b SmartMixer 4-Channel Automatic Mixer (Discontinued)
Audio-Technica AT-MX341b SmartMixer 4-Channel Automatic Mixer (Discontinued)
By Audio-Technica

Audio-Technica AT-MX341b SmartMixer 4-Channel Automatic Mixer (Discontinued)

Write a Review
Part #:
AT-MX341b
Model #:
AT-MX341b
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The Audio-Technica AT-MX341b SmartMixer 4-channel automatic mixer has all switching under microprocessor control with proprietary algorithms. Priority pre-select switch for each mic/line channel allows choice of one-channel-at-a-time operation.

Description

The Audio-Technica AT-MX341b SmartMixer 4-channel automatic mixer is ideal for meetings, seminars, teleconferencing, worship services, radio and TV broadcasting and A/V applications. All switching is under microprocessor control with proprietary algorithms for instant, seamless operation. An individual priority pre-select switch for each mic/line channel allows choice of one-channel-at-a-time operation, all channels active, or any mix of moderator override. The last microphone on stays on so that ambient sound is never muted. Plus, any number of SmartMixers can be linked to create a system for large multi-mic installations. The priority control system extends throughout the entire chain.

Features
  • Four Mic/Line inputs with individual priority pre-select switch for each channel
  • Balanced inputs and output are individually switchable between mic and line-level
  • Single threshold setting for all channels
  • Individual gain controls for each channel
  • Switchable manual mode overrides automatic functions
  • Master output level control
  • TTL logic output signals available to control speaker or camera switching, tally lights, etc.
  • 12V phantom power individually selectable for each channel
  • Off attenuation for each input adjustable to -20 dB
  • Output level meter with Peak and RMS modes
  • Mounts in a single 19" half-rack space
  • Includes rack mount adapters

Specifications
Input Impedance Mic: 4,000 ohms
Line: 30,000 ohms
Output Impedance Line: 200 ohms
Mic: 320 ohms
Maximum Input Level Mic: -20 dBV
Line: +30 dBV
Maximum Output Level Line: +14 dBm (600 ohms)
Mic: -40 dBm (600 ohms)
Nominal Output Level (0VU) Line: +4 dBm (600 ohms), +4.4 dBV (open circ.)
Mic: -46 dBm (600 ohms), -44 dBV (open circ.)
Maximum Gain >=70 dB
Frequency Response 60 Hz to 30 kHz at -3 dB points
Dynamic Range 75 dB +/-10 dB, dependent upon gain control settings
Equivalent Input Noise -120 dBV (150 ohms) at maximum gain
Input Attenuation 10 dB
Mic/Line Input Pads 50 dB
Microphone Phantom Power +12V DC
Control Voltage Out +4V DC
Power Supply 12V AC or 15-18V DC, either polarity; 300 mA, minimum
Operating Temperature 32° to 104° F (0° to 40° C)
Accessories Included AC adapter, AT8325/1.0 Link Cable
Dimensions (H x W x D) 1.75" (44 mm) x 8.25" (210 mm) x 9.38" (238 mm)
Weight 3.1 lbs (1.4 kg)
