Audio-Technica ATW-1101/L System 10 Digital Wireless Lavalier Microphone System

Part #:
ATW-1101/L
Model #:
ATW-1101/L
MSRP: $399.99
$399.95
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
Audio-Technica's ATW-1101/L System 10 is a digital high-fidelity wireless system designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup and clear, natural sound quality.

Description

Audio-Technica's System 10 is a digital high-fidelity wireless system designed to provide performing musicians and presenters with advanced 24-bit operation, easy setup and clear, natural sound quality. Operating in the 2.4 GHz range, far from TV and DTV interference, System 10 offers extremely easy operation and instantaneous channel selection. Up to eight channels may be used together without any frequency coordination problems or group selection issues. System 10 receivers and transmitters offer an easy-to-read digital ID display.

System 10 wireless ensures clear communications by providing three levels of diversity assurance: frequency, time, and space. Frequency Diversity sends the signal on two dynamically allocated frequencies for interference-free communication. Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference. Finally, Space Diversity uses two antennas on each transmitter and receiver to maximize signal integrity.

Featuring stackable, contemporary styling, System 10 is available in multiple system configurations, with handheld vocal microphone/transmitters and UniPak® body-pack transmitters designed for use with lavalier, headworn and instrument microphones as well as electric guitars. Each configuration includes the ATW-R1100 receiver and either a body-pack transmitter or handheld microphone/ transmitter. The ATW-R1100 is a digital receiver offering volume control along with AF Peak and Pair indicator lights.

This system comes complete with the Audio-Technica MT830cW Lavalier Microphone.

Features

  • Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
  • 2.4 GHz range – completely free from TV interference
  • Three levels of diversity assurance: frequency, time, & space
  • Automatic frequency selection for seamless, interference-free operation
  • Extremely easy operation with instantaneous channel selection, sync, and set-up
  • State-of-the-art digital receiver for reliable performance
  • Balanced XLR and unbalanced 1/4” output jacks with level control

Specifications

Overall System
Operating Frequencies 2.4 GHz ISM band
Dynamic Range >109 dB (A-weighted), typical
Total Harmonic Distortion
Operating Range 30 m (100') typical
Open range environment with no interfering signals
Operating Temperature Range 0° C to +40° C (32° F to 104° F)
Battery performance may be reduced at very low temperatures
Frequency Response 20 Hz to 20 kHz
Depending on microphone type
Audio Sampling 24 bit / 48 kHz

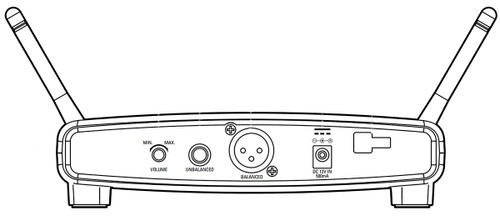

ATW-R1100 Digital Receiver
Receiving System Diversity (frequency/time/space)
Maximum Output Level XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV
Power Supply 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
Accessory Included Power supply
Dimensions (H x W x D) 1.82" (46.2 mm) x 7.48" (190.0 mm) x 5.06" (128.5 mm)
Net Weight 10.2 oz (290 g)
ATW-T1001 UniPak Transmitter
RF Power Output 10 mW
Spurious Emissions Following federal and national regulations
Input Connections Four-pin Locking Connector
Pin 1: GND, Pin 2: INST INPUT,
Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
Batteries (not included) Two 1.5V AA
Battery Life >7 hours (alkaline)
Depending on battery type and use pattern
Dimensions (H x W x D) 4.21" (107.0 mm) x 2.76" (70.2 mm) x 0.98" (24.9 mm)
Net Weight (without batteries) 3.5 oz (100 g)
MT830cW Lavalier Microphone
Element Condenser
Polar Pattern Omnidirectional
Cable 55" (1.4 m), terminated for use with Audio-Technica UniPak® body-pack transmitters
Accessories Furnished Clothing clip; press-on windscreens

DOCUMENTS

In the Box

  • (1) ATW-R1100 Receiver
  • (1) ATW-T1001 UniPak Transmitter
  • (1) MT830cW Lavalier Microphone
