Audio-Technica BP894cH MicroSet Subminiature Cardioid Condenser Headworn Microphone - Black (Discontinued)

Audio-Technica BP894cH MicroSet Subminiature Cardioid Condenser Headworn Microphone - Black (Discontinued)

Name: Audio-Technica BP894cH MicroSet Subminiature Cardioid Condenser Headworn Microphone - Black (Discontinued)
Brand: Audio-Technica
SKU: AT-BP894cH
Price: 359 USD
Availability: OutOfStock

Write a Review

Part #:

BP894cH

Model #:

BP894cH

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

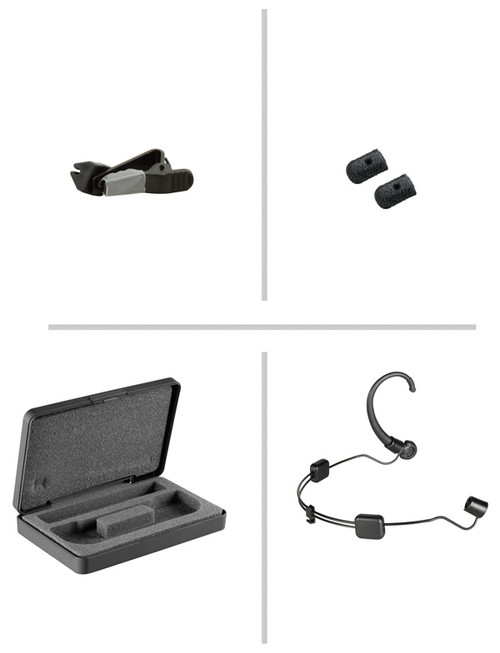

The BP894cH Subminiature Cardioid Condenser Headworn Microphone, less power module. 1.4 m (55") permanently attached miniature cable terminated for use with 6000 Series Wireless Transmitters. Includes AT8440 cable clip, AT8464 dual-ear microphone mount, two AT8163 windscreens, a moisture guard, and a carrying case.

Description

Audio-Technica's 6000 Series High Density Wireless System is designed to give users the freedom to work within an increasingly congested radio frequency spectrum. The 6000 Series operates in the 944-952 MHz band, keeping it free from broadcast TV interference. Just as important, the system uses advanced IMD suppression methods to enable its channels to be spaced at 125 kHz intervals, allowing up to 31 simultaneous channels within 4 MHz of bandwidth.

Features

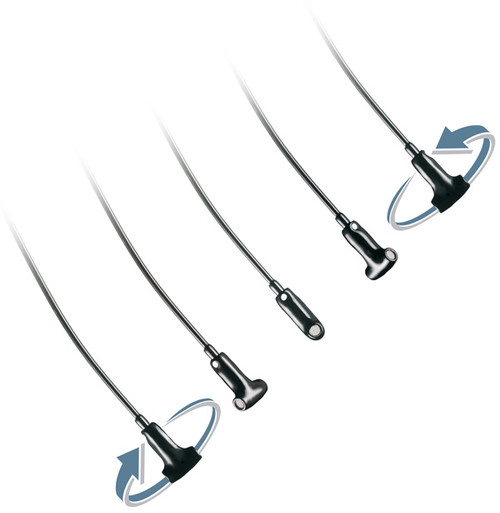

Features a rotating capsule housing with talk-side indicator for use on either ear and perfect polar pattern placement
Provides superior intelligibility and clean, accurate reproduction for the most demanding house of worship user, lecturer, broadcaster or theater performer
Handles high sound pressure levels with ease
Extremely intelligible natural audio
Inconspicuous, lightweight headset with capsule diameter of just 2.8 mm is ideal for applications requiring minimum visibility
Ergonomic under-ear design—flexible, lightweight contoured loop hooks behind the ear for an ultra-secure, comfortable fit with or without glasses
Comes equipped with AT8464 Dual-Ear Microphone Mount that converts single ear-worn MicroSet to a dual-ear-worn unit for maximum stability and comfort
Available in black and beige, wired and wireless models

Specifications

Element	Fixed-charge back plate, permanently polarized condenser
Polar Pattern	Cardioid
Frequency Response	20-20,000 Hz
Low Frequency Roll-Off	80 Hz, 18 dB/octave (wired only)
Open Circuit Sensitivity	–49 dB (3.5 mV) re 1V at 1 Pa
Impedance	250 ohms (wired only)
Maximum Input Sound Level	135 dB SPL, 1 kHz at 3% T.H.D.
Dynamic Range	(Typical) 104 dB, 1 kHz at Max SPL (wired only)
Signal-to-Noise Ratio	63 dB, 1 kHz at 1 Pa
Phantom Power Requirements	11-52V DC, 2 mA typical (wired only)
Current Consumption	0.1 mA typical at 5V (wireless only)
Voltage Range	2.5-11V (wireless only)
Switch	Flat, roll-off (wired only)
Output Connector (Power Module)	Integral 3-pin XLRM-type
Audio-Technica Case Style	M40
Accessories Furnished	AT8539 power module (wired only); AT8440 cable clip; AT8464 dual-ear mount; two AT8163 windscreens; moisture guard; belt clip (wired only); carrying case
Cable	2-conductor shielded cable with locking 4-pin connector (wired only)
Dimensions (L x Dia)	Microphone: 0.26" (6.5 mm) x 0.11" (2.8 mm) Boom: 4.23" (107.4 mm) x 0.04" (1.07 mm) Power Module (wired only): 3.84" (97.6 mm) x 0.74" (18.9 mm) Cable (permanently attached to microphone): 55" (1397 mm) x 0.06" (1.6 mm)
Weight	Microphone, boom & earpiece: 2.0 g (0.07 oz) Power module (wired only): 85 g (3.0 oz)
