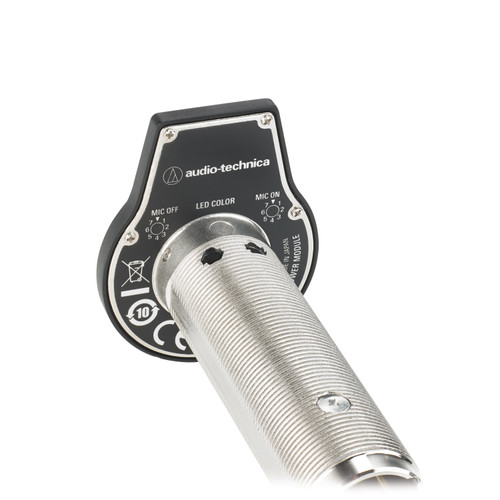

The ES8755RC 5-pin flush-mount power module works with ES925 goosenecks and microphone elements. The power module is equipped with a 5-pin XLRM-type output connector and a touch-sensitive capacitive-type user switch. For enhanced control in conference and boardroom installations, the unit's external contact closure allows you to trigger an external device, such as a camera or the lighting, from the switch. The power module mounts unobtrusively in tabletops and comes with isolators that provide mechanical dampening of the mounting surface. The power module also features a highly visible, two-state RGB LED status indicator.
| Impedance | 130 ohms |
|---|---|
| Phantom Power Requirements | 22 - 52V DC |
| Contact Closure | Closure input voltage: -0.5 – 5.5V Maximum permissible power: 200 mW On-resistance: 100 ohms |
| LED Control | Active high (+5V DC) TTL compatible Active low voltage: 1.2V or lower Maximum permissible input power: -0.5 – 5.5V Maximum permissible power: 200 mW |
| Switch | LED Color - mic on, mic off |
| Output Connector | Integral 5-pin XLRM-type |
| Accessories Furnished | One pair of isolators; nut; set screw (M2 x 2); hex wrench |
| Dimensions (H x W x D) | 3.57" (90.8 mm) x 1.50" (38 mm) x 1.89" (48 mm) |
| Weight | 0.16 lbs (0.074 kg) |
