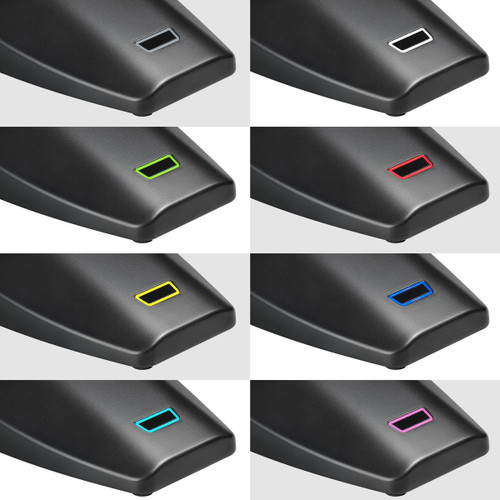

The ES8766RC desk stand power module works with ES925 goosenecks and microphone elements. The desk stand features a 5-pin TB5M-type output connector, heavy die-cast construction, and no-slip bottom pads to minimize coupling of surface vibration to the microphone. It is equipped with a touch-sensitive capacitive-type user switch with local and remote switching options. Locally, it can be set to any one of three operating modes: "touch-on/touch-off," "touch-to-talk" and "touch-to-mute." For enhanced control in conference and boardroom installations, the unit's external contact closure allows you to trigger an external device, such as a camera or the lighting, from the switch. The desk stand is also equipped with a highly visible, two-state RGB LED status indicator and a UniSteep® filter that provides steep low-frequency attenuation to improve sound pickup without affecting vocal reproduction quality.
| Low-Frequency Roll-Off | 80 Hz, 18 dB/octave |
|---|---|
| Impedance | 130 ohms |
| Switches | Activation: on/off LED Color: mic on, mic off Switch function: touch on/off, momentary on, momentary off Control: local, remote, LED remote Low cut: on/off |
| Phantom Power Requirements | 22 - 52V DC |
| Contact Closure | Closure input voltage: -0.5 – 5.5V Maximum permissible power: 200 mW On-resistance: 100 ohms |
| LED Control | Active high (+5V DC) TTL compatible Active low voltage: 1.2V or lower Maximum permissible input power: -0.5 – 5.5V Maximum permissible power: 200 mW |
| Output Connector | TB5M-type |
| Accessories Furnished | 7.6 m (24.9') microphone cable (TA5F, unterminated); set screw (M2 x 2); hex wrench |
| Dimensions (H x W x D) | 1.30" (33 mm) x 3.82" (97 mm) x 5.12" (130 mm) |
| Weight | 1.41 lbs (0.64 kg) |
