Audio-Technica PRO37 Small-Diaphragm Cardioid Condenser Microphone

Description

The PRO 37 has established itself as a versatile solution for studio recording and live performance. With a low-mass element for superb transient response and a low-profile design for optimal mic placement, this mic excels in high-SPL applications. It is ideal for acoustic guitar, overheads, piano and group vocals. Its cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of the desired sound source.

Features

• Professional performance for studio recording and live sound reinforcement
• Low-mass element for superb transient response
• Excels in high-SPL applications
• Low-profile design for optimal mic placement
• Corrosion-resistant contacts from gold-plated XLRM-type connector
• Rugged design and construction for reliable performance
• Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source

Specifications

Element	Fixed-Charge Back Plate, Permanently Polarized Condenser
Polar Pattern	Cardioid
Frequency Response	30-15,000 Hz
Open Circuit Sensitivity	-42 dB (7.9 mV) re 1V at 1 Pa
Impedance	200 ohms
Maximum Input Sound Level	141 dB SPL, 1 kHz at 1% T.H.D.
Dynamic Range (Typical)	112 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio	65 dB, 1 kHz at 1 Pa
Phantom Power Requirements	11-52V DC, 2 mA Typical
Output Connector	Integral 3-Pin XLRM-Type
Accessories Furnished	AT8405a Stand Clamp for 5/8"-27 Threaded Stands; 5/8"-27 to 3/8"-16 Threaded Adapter; AT8159 Windscreen; Soft Protective Pouch
Audio-Technica Case Style	S1
Dimensions (Dia x L)	0.83" (21.0 mm) x 3.9" (99.0 mm)
Weight	0.1062 lbs (0.049 kg)

DOCUMENTS

In The Box

• (1) PRO37 Small-Diaphragm Cardioid Condenser Microphone
• (1) AT8405a Stand Clamp
• (1) 5/8"-27 to 3/8"-16 Threaded Adapter
• (1) AT8159 Windscreen

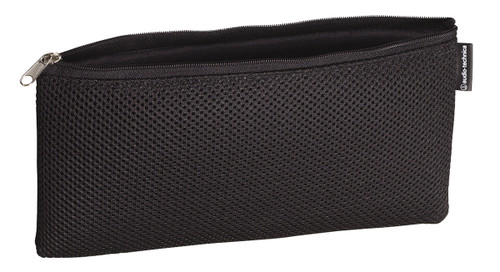

• (1) Soft Protective Pouch
