Audio-Technica U859QL Cardioid Condenser Quick-Mount Gooseneck Microphone

Description

Designed to plug directly into a panel- or desk-mounted XLRF-type connector, the U859QL features an ultra-flexible small-diameter gooseneck and accepts interchangeable elements, available in cardioid, hypercardioid, omnidirectional and UniLine® line cardioid polar patterns. Equipped with self-contained electronics, the phantom-powered microphone also offers an 80 Hz low-cut UniSteep® filter that reduces pickup of low-frequency ambient noise. The microphone is 18.90” long.

Features

• Designed for high-quality sound reinforcement, professional recording and broadcasting
• Superior off-axis rejection for maximum gain before feedback
• Easy-to-adjust, rugged, small-diameter, alternating gooseneck with virtually no “memory” permits quick positioning into desired shape
• UniSteep® filter provides a steep low-frequency attenuation to improve sound pickup without affecting voice quality
• Self-contained electronics eliminate need for external power module
• Quick-mount design with 3-pin XLRM-type connector insert at base plugs into any standard XLRF-type surface or cable connector

Specifications

Element	Fixed-charge back plate permanently polarized condenser
Polar Pattern	Cardioid
Frequency Response	100-16,000 Hz
Low Frequency Roll-Off	80 Hz, 18 dB/octave
Open Circuit Sensitivity	–43 dB (7.0 mV) re 1V at 1 Pa
Impedance	250 ohms
Maximum Input Sound Level	140 dB SPL, 1 kHz at 1% T.H.D.
Dynamic Range	111 dB, 1 kHz at Max SPL
Singnal-To-Noise Ratio	65 dB, 1 kHz at 1 Pa
Phantom Power Requirements	11-52V DC, 2 mA typical
Switch	Flat, roll-off
Output Connector	Integral 3-pin XLRM-type
Optional Interchangeable Elements	UE-C cardioid (120°); ELEMENTS UE-H hypercardioid (100°); UE-O omnidirectional (360°)

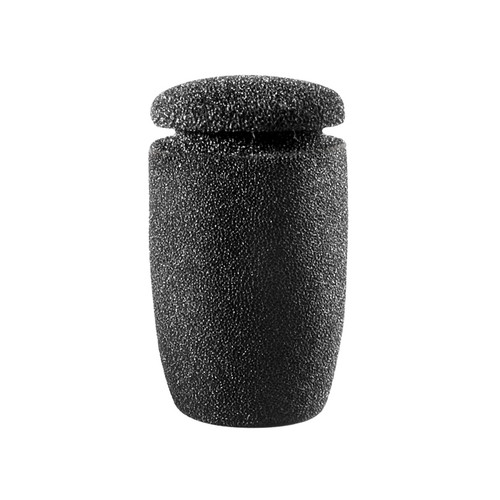

Accessories Furnished	AT8153 two-stage foam windscreen
Dimensions (Length)	18.90" (480 mm)
Net Weight	5.4 oz (152 g)

DOCUMENTS

In The Box

• (1) U859QL Microphone
• (1) AT8153 Two-Stage Foam Windscreen
