This auditorium PA sound system with Community column array PA speakers is an ideal solution for a wide variety of auditorium and lecture hall applications with easy setup, installation and operation.

Description

Inside the Design

This auditorium sound system solution is ideal for a wide variety of auditorium and lecture hall applications with easy setup, installation and operation. The Community ENT220 column line array loudspeakers are housed in an attractive, heavy duty extruded PVC enclosure and provides exceptional directional control in the vertical axis to tame extremely difficult acoustic environments. This system with well-placed ENT220 columns is capable of providing intelligibility and superb musical reproduction, with enough power to cover medium and large venues while barely being visible. This column PA sound system also includes a low profile dual 12" versatile subwoofer, 12-channel line mixer, 800W power amplifier, a Bluetooth multi-media player and a wireless microphone system with a handheld and lapel microphone. Stream audio wirelessly from any Bluetooth-enabled smartphone, tablet or other mobile devices.

Sound System Features:

  • ENT220 speakers provide exceptional directional control in the vertical axis to tame extremely difficult acoustic environments
  • Cover medium or large venues and provide intelligibility and superb musical reproduction, while barely being visible
  • The low-profile, dual-driver subwoofer is designed to augment and extend the low frequency output of any speaker system
  • DN-312X mixer provides individual level control for all inputs in addition to level control for the mono output port and a master level control
  • Crown 800W 2-channel power amplifier includes onboard DSP for loudspeaker signal processing
  • Bluetooth media player that plays USB, SD or CD and has a built-in AM/FM tuner
  • Dual-channel 2.4 GHz handheld system provides strong RF signal stability and extended range

About the System Components

This Pro Acoustics designed sound system includes two Community ENT220 column array wall mount loudspeakers, a Community V2-212S dual 12" versatile subwoofer, a Crown CDi 2000 2-channel 800W installation power amplifier, a Denon Professional DN-312X 12-channel line mixer with priority, a Denon Professional DN-300Z media player with Bluetooth, a Rane ME15S micrographic equalizer, ART PS8-II professional power sequencer, a MIPRO ACT2402/ACTACT-24H&T dual-channel 2.4GHz handheld and lapel wireless system, MIPRO FB-71 rack mount kit, a Gator GRW2009508 9U 21" deep wall rack, a Gator GRW-DRW2 lockable 2U rack drawer and all the cables and speaker wire needed to install your sound system.

Not sure if this is the right Auditorium Sound System solution for you?

Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Features

Community ENT220 Wall Mount Loudspeakers:

  • Advanced passive crossover technology
  • Dynamic protection circuitry
  • Compact Ribbon Emulator high frequency technology for narrow, well-behaved vertical directivity control
  • All-weather construction for indoor/outdoor usage
  • Selectable low impedance or 70V/100V operation
  • Simple installation using the included pan-tilt mounting bracket
  • Tightly controlled vertical dispersion reduces harmful room reflections
  • Wide horizontal dispersion means fewer units cover a given area
  • Clean, clear and powerful sonic output without the cost of bi-amplification
  • Available in standard black or white finishes, may also be painted to match room décor

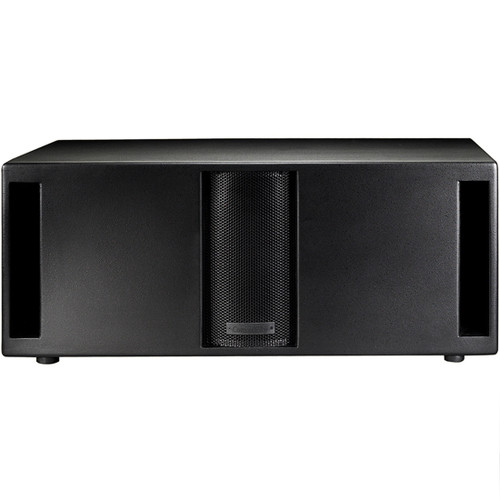

Community V2-212S Dual 12" Versatile Subwoofer:

  • Low profile design fits tight spaces
  • DYNA-TECH driver protection circuitry
  • Patented Cool-Coil heat evacuation technology to minimize cone driver power compression
  • Eight M10 threaded rigging fittings (four on each end panel)
  • Terminal strip and NL4-compatible connectors
  • Available in standard black or white finishes

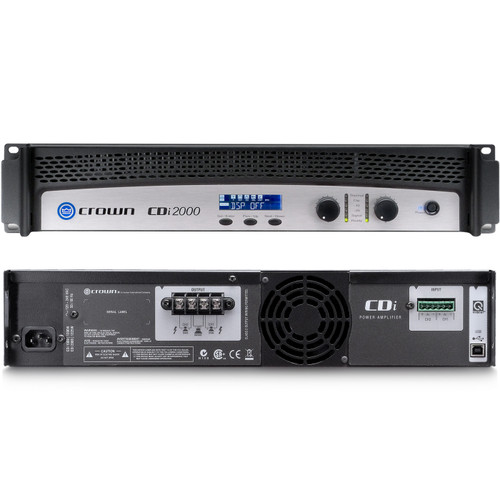

Crown CDi 2000 Power Amplifier 2-Channel 800W Commercial Installation Amplifier:

  • Extremely versatile; rated for 2-, 4-, 8-ohm loads and 70V and 140V outputs
  • Switch-mode universal power supply
  • Intuitive front-panel LCD screen for quick, easy configuration
  • Onboard digital signal processing includes crossovers, EQ filters, delay and output limiting
  • Up to 20 user defined DSP presets are available

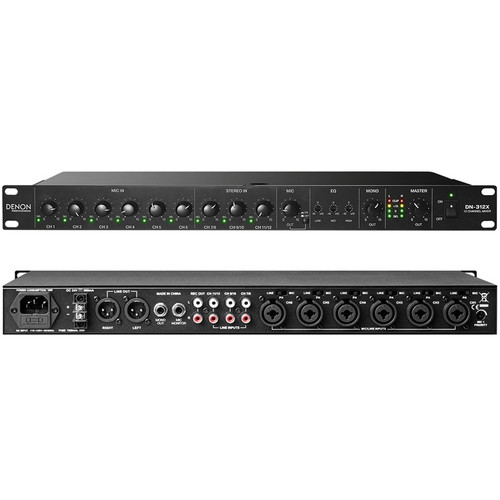

Denon Professional DN-312X 12-Channel Line Mixer with Priority:

  • 6 HDHQ™ Combination inputs with MIC, Phantom and Line selector switches
  • 6 mono (3 stereo) RCA Inputs
  • Mic monitor 1/4" output for private listening to all mic inputs
  • Balanced XLR line outputs
  • Mono 1/4" line output can be used to feed audio to external recording device
  • AC or 24V DC power inputs
  • Mic 1 Priority Control
  • Master and Individual level controls
  • 1U rack mountable

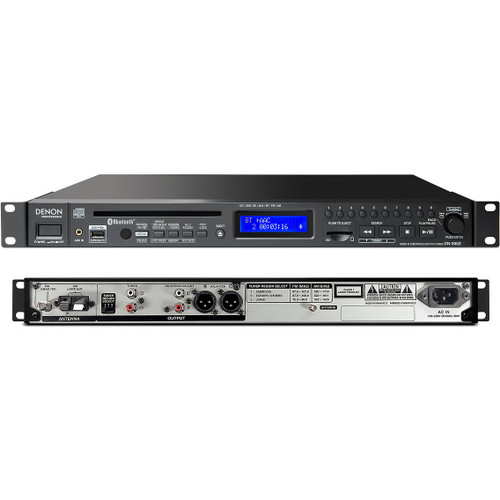

Denon Professional DN-300Z Media Player with Bluetooth:

  • Super-fast loading, slot-in CD player
  • Supports removable USB thumb and HDDs, SD/SDHC cards
  • Wireless audio playback from tablets and smartphones via Bluetooth
  • Selectable Power-On-Play mode automatically plays USB, SD or CD tracks when powered up — simply turn it on
  • Up to 100 foot (30m) wireless Bluetooth range
  • Plays CD-DA, MP3, WAV, and AAC files
  • 3.5mm (1/8-inch) input for audio playback of any audio device with a 3.5mm output
  • AM/FM Tuner w/ dedicated audio out for multi-room use
  • RCA and balanced XLR audio outputs
  • 10-key direct track access
  • Random, repeat, and single play playback modes
  • Remembers up to 8 Bluetooth devices for simple switching of wireless audio sources
  • Folder only and All play modes
  • Lockable front-panel keeps program material from being interrupted
  • IR controllable with included, compact remote
  • 1RU chassis with removable rack ears
  • Detachable IEC-weighted AC inlet
  • 100-220v switching power supply

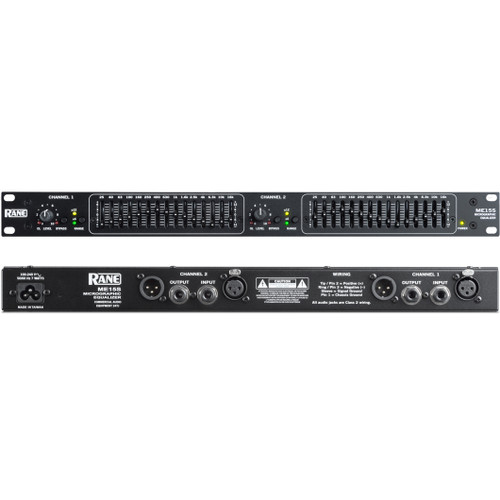

Rane Commercial ME15S MicroGraphic Equalizer:

  • Constant-Q bandwidth design
  • Overall level controls and passive bypass switches
  • 20 mm filter slide controls with ±6 dB or ±12 dB slider range
  • Infrasonic, Ultrasonic, & RFI Filters
  • Balanced XLR and 1/4" TRS inputs and outputs

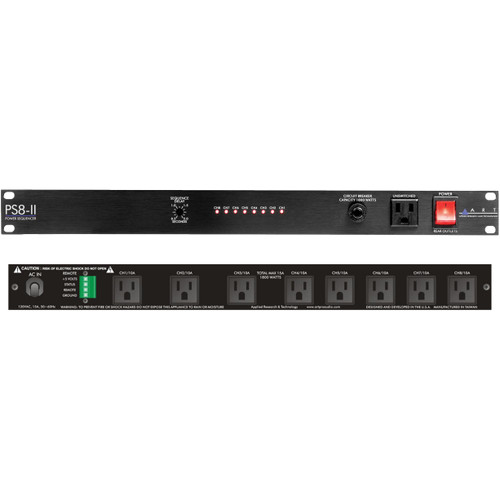

  • ART PS8-II Professional Power Sequencer:
  • Adjustable sequence delay range from 0.5 to 2.0 seconds per output
  • Eight individually sequenced outputs with front panel LED indicators for each
  • Rear mount remote control terminal block for remote sequence control
  • Front panel unswitched and unregulated output
  • 1800 watt total power capacity
  • Front panel master breaker and power switch
  • EMI and RFI filtering
  • Surge and spike protection

MIPRO ACT2402/ACTACT-24H&T Dual-Channel 2.4GHz Handheld and Bodypack Wireless System:

  • Condenser cardioid capsule delivers better reliability, sensitivity and sound quality
  • MIPRO's Digital Diversity ACT-2400 Series wireless system addresses the industry's 2.4GHz issues of range, signal stability, and channel density
  • By using an adaptive tracking algorithm, the 2400-Series skips the common Wi-Fi frequencies effectively avoiding interference from most 2.4GHz communication products
  • Utilizes a 4 frequency spread spectrum technique that avoids and remaining interference
  • With dual tuner, true digital diversity receiving, receiving distance is up to 100 meters (330 ft.) with no signal drop-out
  • 12 compatible simultaneous channel operation
  • 24-bit / 44.1 kHz digital audio sampling
  • Lo-Cut and Flat EQ settings
  • Adjustable AF gain & RF power output
  • Half rack single and dual-channel systems

System Includes
  • (2) Community ENT220 Wall Mount Loudspeakers
  • (1) Community V2-212S Dual 12" Versatile Subwoofer
  • (1) Crown CDi 2000 Power Amplifier 2-Channel 800W Commercial Installation Amplifier
  • (1) Denon Professional DN-312X 12-Channel Line Mixer with Priority
  • (1) Denon Professional DN-300Z Media Player with Bluetooth
  • (1) Rane Commercial ME15S MicroGraphic Equalizer
  • (1) ART PS8-II Professional Power Sequencer
  • (1) MIPRO ACT2402/ACTACT-24H&T Dual-Channel 2.4GHz Handheld and Bodypack Wireless System
  • (1) MIPRO FB-71 Receiver Rack Mount Kit

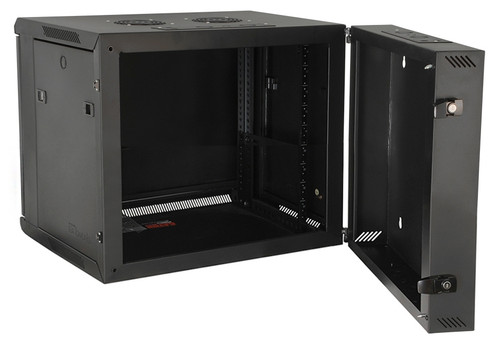

  • (1) Gator GRW2009508 9U 21" Deep Sectional Wall Rack

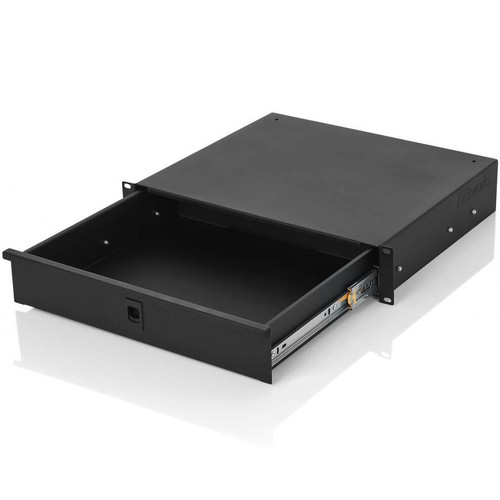

  • (1) Gator GRW-DRW2 Rackworks 2U Rack Drawer

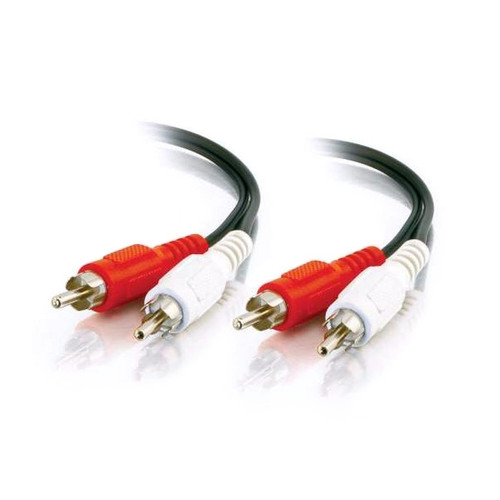

  • (1) CBI CB2-2RR-6 Dual RCA to Dual RCA Patch Cable - 6ft

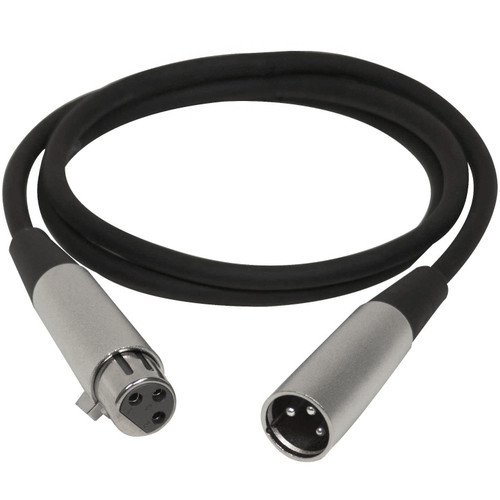

  • (4) CBI MLN-3 XLR Patch Cables - 3ft

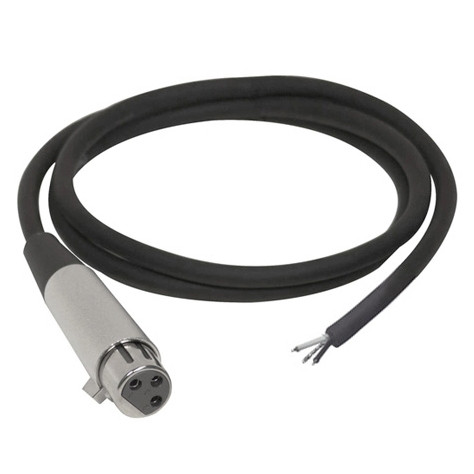

  • (2) CBI MLN-3-PREP-F Female XLR to Bare Wire Patch Cables - 3ft

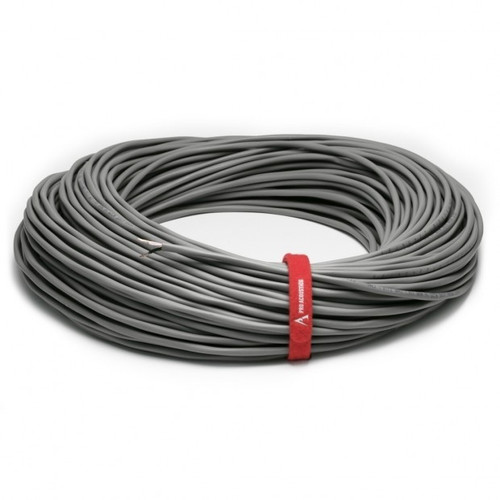

  • (500') West Penn 227 12/2 Non-Plenum Audio Speaker Wire
