Inside the Design

This auditorium sound system with two Bose F1 Model 812 loudspeakers and two subwoofers at 1000W each, features adjustable coverage patterns that let you choose the coverage you need so no matter what kind of room you're in, you have the right coverage. This high-quality portable auditorium PA speaker system produces clear and natural vocals with midrange clarity even at high volumes, great for school assemblies, music performances, theater productions, meetings, pep rallies and more. Wirelessly stream Bluetooth and mix your audio from any Bluetooth-enabled smartphone, tablet or other mobile devices. It comes with three wireless handheld microphones, wireless lapel mic, three wired microphones, three boom mic stands, a portable rack, and rolling speaker bags.

Sound System Features:

• Bose flexible array speakers can be configured into four unique shapes for the best possible coverage pattern
• Powerful high-output 1000W loudspeakers deliver a maximum SPL of 132 dB each
• Bluetooth media player that plays USB, SD or CD and has built-in AM/FM tuner
• Wirelessly stream audio and mix from any Bluetooth-enabled smartphone, tablet or other mobile devices
• Digital mixer gives you complete control, whether you’re mixing live bands or a high school musical
• Value-packed Audix diversity wireless systems have slight bass proximity, tailored mid-range, and full-bodied sound
• Completely portable sound system gives you so many options for your performance space

About the System Components

This Pro Acoustics designed sound system includes two Bose F1 Model 812 flexible array 1000W powered portable array loudspeakers with adjustable coverage patterns and two F1 1000W powered subwoofer with detachable stacking brackets. Also included are two Yamaha DBR10 10" 700W powered floor monitors, an Ashly Audio DigiMix18 digital mixer with App for wireless mixing control from anywhere in the room. We've also included a Bluetooth media player for CDs, SD cards, USB and built-in AM/FM radio, three wireless handheld mics, a wireless lavaliere mic and three ultra-clear UC1S wired microphones with quiet On/Off switches. Three boom microphone stands and three rubber wireless mic clips, a power conditioner, four rolling speaker bags, portable rack with pop-up mixer rachet, a 3-space drawer, three blank panels, and all the cables you need to complete your portable auditorium sound system.

Some products in this sound system design are now discontinued. Please call for replacements.
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

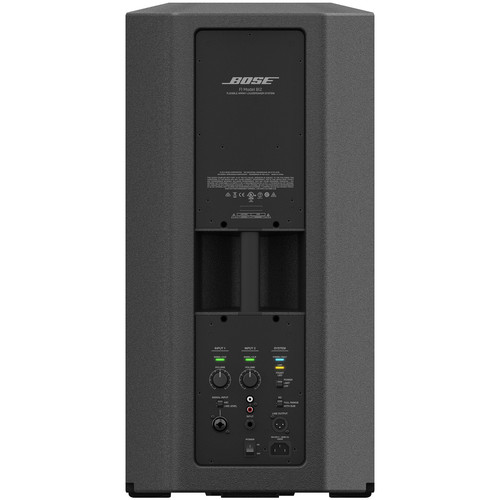

Bose F1 Model 812 Flexible Array Powered Portable 1000W Array Loudspeakers with Adjustable Coverage Pattern:

• Flex array is a flexible baffle that can be configured into four unique shapes ("Straight," "C," "J" or "Reverse J"), allowing the customer to choose the best possible coverage pattern for the application
• Vertically oriented 8-driver mid/high line array, with each driver mounted on a custom 100° waveguide, helps deliver wide, consistent coverage
• 12-inch LF driver provides high performance at low frequency for strong low-frequency output
• Bi-amplified design with 2 high-output, Class-D amplifiers to separately power the FLEX array and 12-inch LF driver
• 2 input channels with independent volume controls and Line Level/Mic switch on Channel 1



Bose F1 1000W Powered Subwoofer Two 10" High-Excursion Woofers:

• 1,000 watts to pack the performance of a larger bass box into a compact design that is light and easy to carry
• Two 10" high-excursion drivers built into a compact enclosure that is easy to transport
• Polarity switch to adjust polarity of subwoofer
• Line output EQ sets the F1 Subwoofer's output to a high-pass filter or full range
• F1 Model 812 extension bracket is a bracket integrated into the subwoofer that can be raised and lowered by the end user



Yamaha DBR10 10" 2-Way 700W Powered Loudspeakers:

• 700 watts class D power
• Lightweight enclosure
• Broad coverage
• FIR-X tuning for excellent sound quality with high resolution and a smooth frequency response
• D-Contour optimizes the DBR10 for main speaker or floor monitor use
• Onboard mixer lets you select either a direct output or a mixed output
• Comprehensive inputs for mixer, musical instrument, or media players
• Amplifier and power supply design provides powerful output from a compact speaker
• DSP-controlled protection functionality promotes optimum reliability



Ashly Audio DigiMix18 Rack-Mountable 18-Channel Digital Mixing Console with iPad App for Wireless Remote Control:

• Precision Alps® motorized 100mm fader
• Responsive, 7" color LCD touchscreen for graphical viewing, assign, and setup
• FREE iPad® App for wireless remote control
• EZ-Mode for secure, simplified touchscreen or iPad® control with EZ-Mode mixer
• Ships as desktop console, rack rails included
• 16 low noise microphone preamps with dedicated trim controls, +48V phantom power, phase invert
• Gain-sharing automixer
• Assignable cross fader
• Stereo AUX sends for stereo monitors
• 2 dedicated line-level inputs
• TRS inserts on channels 1-8
• 8 AUX sends, 6 DCA for fader or mute groups
• 2 internal stereo FX with fully editable reverbs, delay with tap tempo, tremolo, flange, and chorus
• Pan control
• High-resolution delay (0.2mS) on every input, AUX, or FX
• Expander/noise gate on every input and FX channel
• Comp/limiter on every input, output, and FX channel
• 4-band parametric/shelving EQ filters plus HPF/LPF on every input, output, and FX channel
• 31-band Graphic EQ on main and AUX outputs
• Stereo link for adjacent inputs and AUX outputs
• Solo/PFL on every input, output, AUX, or FX
• Stereo main outputs on XLR and phone jack with dedicated level control
• Headphone and control room outputs with dedicated level controls
• User presets for Scene, DSP channel, FX or GEQ settings, plus channel copy function
• 24-bit A/D and D/A converters, 32-bit DSP processing, 48kHz sampling rate
• Password security
• Software control using Windows®, Mac®, or iPad®
• Internal 100-240VAC universal power supply
• Dante® Network Audio Interface (optional)
• USB Multi-track Audio Interface (optional)
• Safety/compliance: cTUVus, FCC, RoHS



Denon Professional DN-300Z Media Player with Bluetooth:

• Super-fast loading, slot-in CD player
• Supports removable USB thumb and HDDs, SD/SDHC cards
• Wireless audio playback from tablets and smartphones via Bluetooth
• Selectable Power-On-Play mode automatically plays USB, SD or CD tracks when powered up — simply turn it on
• Up to 100 foot (30m) wireless Bluetooth range
• Plays CD-DA, MP3, WAV, and AAC files
• 3.5mm (1/8-inch) input for audio playback of any audio device with a 3.5mm output
• AM/FM Tuner w/ dedicated audio out for multi-room use
• RCA and balanced XLR audio outputs
• 10-key direct track access
• Random, repeat, and single play playback modes
• Remembers up to 8 Bluetooth devices for simple switching of wireless audio sources
• Folder only and All play modes
• Lockable front-panel keeps program material from being interrupted
• IR controllable with included, compact remote
• 1RU chassis with removable rack ears
• Detachable IEC-weighted AC inlet
• 100-220v switching power supply

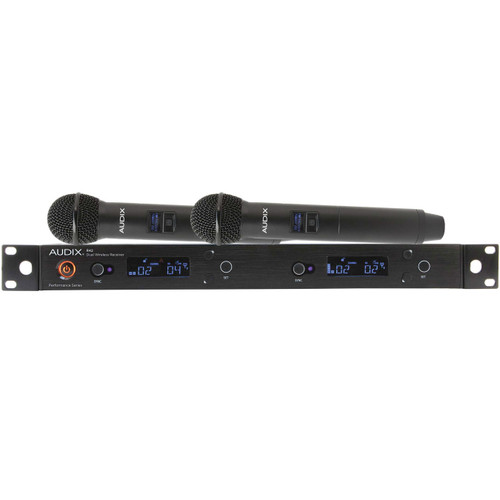

Audix AP42 OM2 Dual Channel Wireless Microphone System with 2 H60/OM2 Handheld Microphones:

• 32 MHz wide spectrum tuning receiver
• 106 Pre-coordinated frequencies
• One-touch auto scan searches for clear channel
• One-touch sync links transmitter to receiver via infrared beam
• 64 MHz Wide spectrum transmitter with OM2 dynamic capsule module
• Durable metal housing
• 14 Hour run time - AA batteries



Audix AP42 C210 Dual Channel Wireless Microphone System with Handheld and Lavalier Microphones:

• 32 MHz wide-spectrum tuning receiver
• 106 pre-coordinated frequencies
• One-touch auto scan searches for clear channel
• One-touch sync links transmitter to the receiver via infrared beam
• 64 MHz wide-spectrum transmitter with OM2 dynamic capsule module
• Durable metal housing
• 14 Hour run time - AA batteries
• 64 MHz wide-spectrum transmitter with ADX10 lavalier microphone
• Durable metal housing
• 14 Hour run time - AA batteries



Pure Resonance Audio UC1S Vocal Microphones with On/Off Switch:

• Super heavy-duty housing
• Built-in wind and breath "pop" noise filter
• Ultra dependable quiet switch
• Steel mesh grille
• SwitchCraft connector
• Frequency response tailored for vocals
• Uniform cardioid (unidirectional) dynamic pickup pattern isolates the main sound source and minimizes background noise
• Supplied with break-resistant stand adapter
• Frequency response: 50 to 16,000 Hz
• For outdoor and indoor events

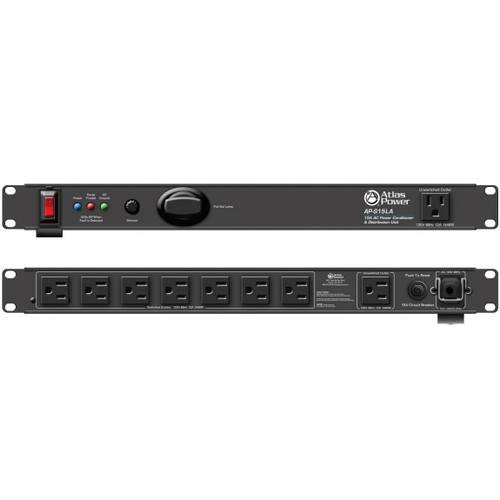

Atlas Sound AP-S15LA 15LA Power Conditioner and Distribution Unit:

• Front panel dimmable pull out lamp
• Circuit breaker protection @ 15A
• 9 total outlets
• 7 rear panel switched outlets
• 1 rear panel unswitched outlet
• 1 front panel unswitched convenience outlet
• Removable IEC power cord with a retainer bracket
• RFI noise filtering to reduce radio frequency interference
• EMI filtering to reduce electromagnetic interference
• Spike suppression up to 6000V
• Power LED indicator
• Surge protect LED indicator
• AC ground LED indicator
• Power switch cover



Gator GRC-12X10 PU 12U Top, 10U Side Mobile Audio Pop-Up Console Rack with Casters:

• Mobile audio 19" console rack with pop-up top-loaded rack
• Top rack uses a pop-up ratchet system for transporting flat then elevating to various angles
• Side handles for easy lifting to stage or truck
• High-density polyethylene construction
• Threaded rack rail
• 4" heavy-duty industrial caster, 2 of which are locking

• (2) Bose F1 Model 812 Flexible Array Powered Portable 1000W Array Loudspeakers with Adjustable Coverage Patterns
• (2) Bose F1 1000W Powered Subwoofer Two 10" High-Excursion Woofers
• (2) Yamaha DBR10 10" 2-Way 700W Powered Loudspeakers
• (1) Ashly Audio DigiMix18 Rack-Mountable 18-Channel Digital Mixing Console with iPad App for Wireless Remote Control
• (1) Denon Professional DN-300Z Media Player with Bluetooth
• (1) Audix AP42 OM2 Dual Channel Wireless Microphone System with R42 True Diversity Receiver and 2 H60/OM2 Handheld Transmitters
• (1) Audix AP42 C210 Performance Series Dual-Channel Combo Handheld and Lavalier Wireless System
• (3) Pure Resonance Audio UC1S Vocal Microphones with On/Off Switch
• (1) Atlas Sound AP-S15LA 15LA Power Conditioner and Distribution Unit
• (1) Gator GRC-12X10 PU 12U Top, 10U Side Mobile Audio Pop-Up Console Rack with Casters
• (1) Gator GRW-DRW3 Rackworks 3U Rack Drawer
• (3) Gator GRW-PNLSTFT1 1U Steel Flat Panels
• (4) Gator GPA-777 Deluxe 15" Rolling Speaker Bags

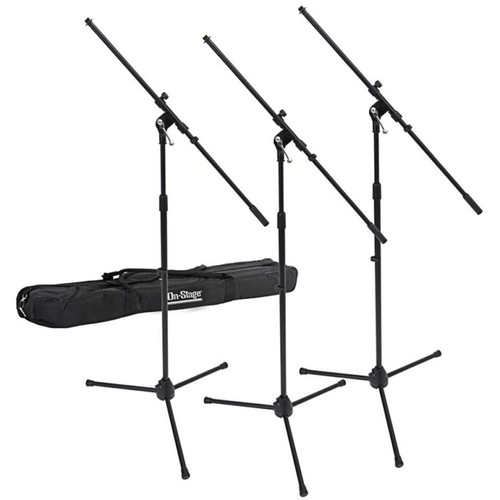

• (1) On-Stage Stands MSP7703 Euroboom Microphone Stands with Bag (3 Pack)
• (3) On-Stage Stands MY110 Unbreakable Rubber Wireless Mic Clips

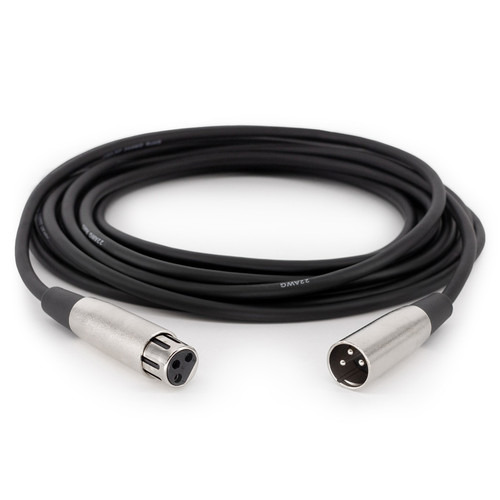

• (6) CBI MLN-3 XLR to XLR Patch Cables - 3ft
• (2) CBI MLN-6 XLR to XLR Cables - 6ft
• (3) CBI MLN-25 XLR to XLR Microphone Cables - 25ft
• (4) CBI MLN-50 XLR to XLR Cables - 50ft
