Auditorium Sound System with 6 SD4 SuperDispersion Ceiling Speaker Arrays and 2 Community 15" On-Wall Speakers with Wireless Mics and Bluetooth

By Pure Resonance Audio

Auditorium Sound System with 6 SD4 SuperDispersion Ceiling Speaker Arrays and 2 Community 15" On-Wall Speakers with Wireless Mics and Bluetooth

Name: Auditorium Sound System with 6 SD4 SuperDispersion Ceiling Speaker Arrays and 2 Community 15" On-Wall Speakers with Wireless Mics and Bluetooth
Brand: Pure Resonance Audio
SKU: ADSS-6SD42VS15962VBY15W
Price: 11310.19 USD
Availability: InStock

Write a Review

Part #:

ADSS-6SD42VS15962VBY15W

Model #:

ADSS-6SD42VS15962VBY15W

Current Stock:

Availability: Usually arrives in 5-9 business days.

Quantity:

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

This on-wall, in-ceiling auditorium sound system features crystal clear in-ceiling speakers, wide coverage PA speakers, an easy-to-use Bluetooth mixer amplifier, a portable powered mixer, a wireless combo microphone system, and a media player. This system provides exceptional sound for public address or musical performance applications.

Description

Inside the Design

This auditorium sound system delivers amazing sound quality and is simple to use. It features six Pure Resonance Audio SD4 SuperDispersion omnidirectional drop tile ceiling speaker arrays, each featuring four 6.5" very fast transient response aluminum-woofer drivers that are stable and very powerful. Working in unison, these drivers produce clean, powerful and dynamic sound. Also included are two Community V2-1596 15" 2-way full-range loudspeakers with wide coverage, a Bluetooth RMA350BT 5-channel mixer amplifier that provides 350 watts of high-performance Class H power for long working hours due to its forced air-cooling fan, and a remote control to easily manage volume levels, play/pause, skip and more all from a distance. This system also includes a Tascam CD-400U media player that plays from CDs, SD cards, USB, Bluetooth streaming and an AM/FM tuner. The included Audix AP42 C210 Performance Series dual-channel combo system comes with a wireless handheld and lavalier microphone.

Sound System Features:

Exceptional 360° x 180° high-quality sound coverage with crystal clear speech reproduction and voice intelligibility
Simple to install into any standard 2' x 2' or 2' x 4' drop ceiling
Easily connect your Bluetooth device to the RMA350BT's high-performance 350W mixer amplifier
Bluetooth media player with USB, SD, CD and built-in AM/FM tuner
The lightweight and extremely portable Yamaha 12-channel powered mixer is capable of very high output volume
Value-packed Audix diversity wireless system with handheld and lavalier microphones produce full-bodied sound

About the System Components

This Pro Acoustics designed sound system includes six Pure Resonance Audio SD4 SuperDispersion® ceiling speaker arrays, six safety cable kits (including twenty-four steel safety cables, twenty-four carabiners, and twenty-four Fastlinks), two Community V2-1596 15" 2-way full-range loudspeakers, a Yamaha EMX7 2 x 710W portable 12-channel powered mixer, a Pure Resonance Audio RMA350BT 5-channel 350W Bluetooth rack mount mixer amplifier, an IR remote control, power cord, a Tascam CD-400U CD and media player with integrated AM/FM receiver and Bluetooth, an Audix AP42 C210 Performance Series dual-channel combo handheld and lavalier wireless system, an ART PS8-II professional power sequencer, a Yamaha RK-EMX7 rack mount kit for the EMX7, two Community VB-Y15 yoke mounting brackets for the V2-15 speakers, a Middle Atlantic EWR-16-22SD 16U wall mount rack, a Gator GRW-DRW3 lockable 14.2" deep 3U rack drawer, a 100-piece pack of Middle Atlantic HP 10-32 truss-head rack screws with washers, two CBI SNN122 12G 50-foot Speakon cables, two Pure Resonance Audio XLR-3 3-foot microphone cables, one Pure Resonance Audio TRS-6-PREP 6-foot 1/4" TRS to prep patch cable, and 500 feet of 16/2 non-plenum audio speaker wire.

Not sure if this is the right Auditorium Sound System solution for you?

Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Features

Pure Resonance Audio SD4 SuperDispersion Ceiling Speaker Arrays:

SuperDispersion® 360° x 180° omnidirectional coverage
Engineered for voice, paging and music applications
Infinite-baffle in-ceiling speaker drops into standard 2x2 ceiling tile openings
Powerful – 160 Watts at 8 Ohms, 64 Watts at 70 Volts
4 - 6.5" High compliance aluminum woofers with ported bass response and high-frequency dome tweeters
Uniquely designed fire retardant ABS housing may be painted to match any décor
Impedance: 8 ohms nominal with built-in 70 Volts (4, 8, 16, 32, 64 watt taps), easily adjustable by rotating switch
Metal Backbox that is acoustically engineered and sealed for maximum sonic performance
Safety cable kit included

Community V2-1596 15" 2-Way Full-Range Loudspeakers:

Discreet and aesthetic trapezoidal enclosure
Optimized voicing for full-range reproduction
DYNA-TECH™ driver protection circuitry
Ferrofluid-treated HF driver for improved heat dissipation
Carbon Ring Cone Technology provides 30% more piston area with increased excursion capability in LF driver
Terminal strip and NL4-compatible connectors
Multiple bracket options offer affordable arraying solutions
Included in Community’s Forecaster HD ceiling distributed system software
Available in standard black or white finishes

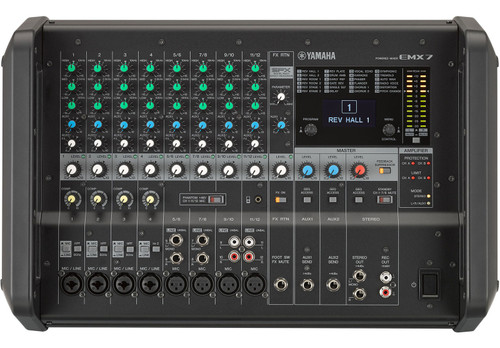

Yamaha EMX7 2 x 710W Portable 12-Channel Powered Mixer:

Powerful & High Efficiency Class-D Amplifier
Robust But Extremely Portable Design
Easy Setup, Easy Operation
Complete Range of Input & Output Channels
12 Line Inputs (8 mono + 4 stereo)
High-Z input (channel 4) to connect guitars or basses directly
Flex 9 Graphic Equalizer
Onboard Feedback Suppressor
Comprehensive, professional 24 different effects
Yamaha Speaker presets
Metal chassis for extended operation and robustness
Large handles for extreme portability and protection
Universal power supply eliminates concern on power fluctuations
Optional rack-mount kit available

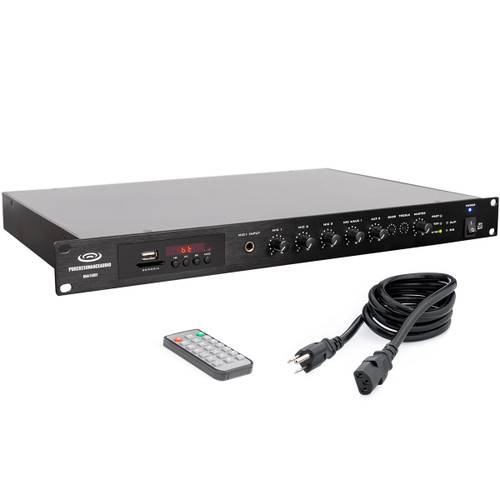

Pure Resonance Audio RMA350BT 5-Channel 350W Bluetooth Rack Mount Mixer Amplifier:

1 RU chassis, high-efficiency, and lightweight design
MP3 media player supports USB, SD, Bluetooth and FM tuner
Supports 1 emergency channel input, 2 AUX inputs, and 4 MIC inputs
Bass and treble tone controls
Level, overload, and protection light indicators provide short circuit, overload, and overheating protection
Advanced high-performance power amplifier circuit
4-16Ω/70V speaker output
350W rated output power
Forced air-cooling fan from front to back, starts up in a uniform speed rotation and then speeds up when the temperature increases to meet long working hours
Remote control

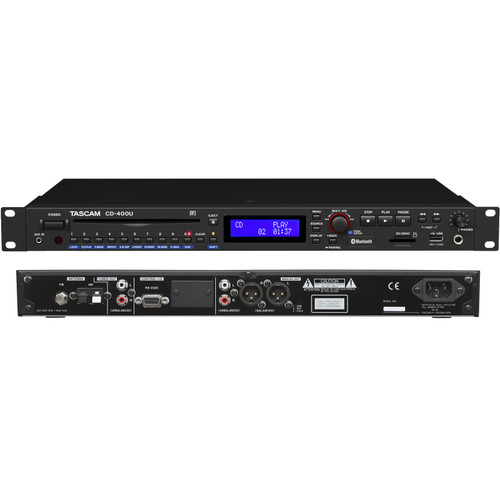

Tascam CD-400U CD and Media Player with Integrated AM/FM Receiver and Bluetooth:

CD/SD/USB/and FM/AM tuner realtime audio playback
Wireless Bluetooth playback when paired with a Bluetooth-enabled device like a smartphone, tablet, or computer
Outputs: XLR, RCA X 2, and headphone
1/8" audio input for playback from any external source
"Power on Play" function starts audio playback automatically when powered on
"Panel Lock" function disables buttons to avoid unauthorized operation or programming
Real time recording from CD or FM/AM tuner to SD or USB media
External control via RS-232C
Control via ethernet with optional IF-E100 ethernet card is planned in the future

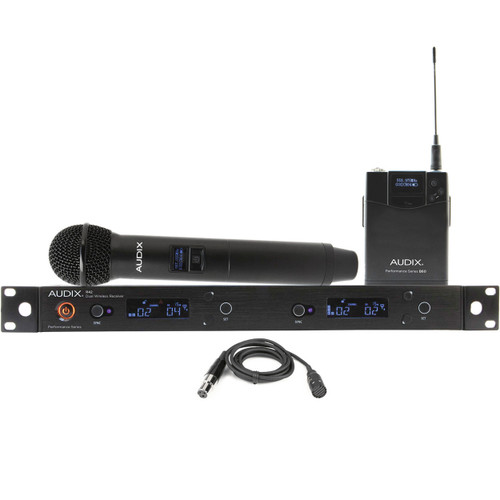

Audix AP42 C210 Performance Series Dual-Channel Combo Handheld and Lavalier Wireless System:

32 MHz wide spectrum tuning receiver
106 Pre-coordinated frequencies
One-touch auto scan searches for clear channel
One-touch sync links transmitter to receiver via infrared beam
64 MHz Wide spectrum transmitter with OM2 dynamic capsule module
Durable metal housing
14 Hour run time - AA batteries

ART PS8-II Professional Power Sequencer:

Adjustable sequence delay range from 0.5 to 2.0 seconds per output
Eight individually sequenced outputs with front panel LED indicators for each
Rear mount remote control terminal block for remote sequence control
Front panel unswitched and unregulated output
1800 watt total power capacity
Front panel master breaker and power switch
EMI and RFI filtering
Surge and spike protection

Middle Atlantic EWR-16-22SD 16U Wall Mount Rack:

Fully welded construction for strength
Patented Tool Free Quick-Mount system for center section mounting
Center section swing is reversible, and can be both keylocked and padlocked
Center section is keyed differently from optional front door for security
Optimized for passive thermal management
Standard front adjustable 10-32 threaded rackrail

System Includes

(6) Pure Resonance Audio SD4 SuperDispersion® Ceiling Speaker Arrays

(6) Safety Cable Kits: (24) Steel Safety Cables, (24) Carabiners and (24) Fastlinks

(2) Community V2-1596 15" 2-Way Full-Range Loudspeakers
(1) Yamaha EMX7 2 x 710W Portable 12-Channel Powered Mixer
(1) Pure Resonance Audio RMA350BT 5-Channel 350W Bluetooth Rack Mount Mixer Amplifier

(1) IR Remote Control
(1) Power Cord

(1) Tascam CD-400U CD and Media Player with Integrated AM/FM Receiver and Bluetooth
(1) Audix AP42 C210 Performance Series Dual-Channel Combo Handheld and Lavalier Wireless System
(1) ART PS8-II Professional Power Sequencer
(1) Yamaha RK-EMX7 Rack Mount Kit for EMX7/EMX5

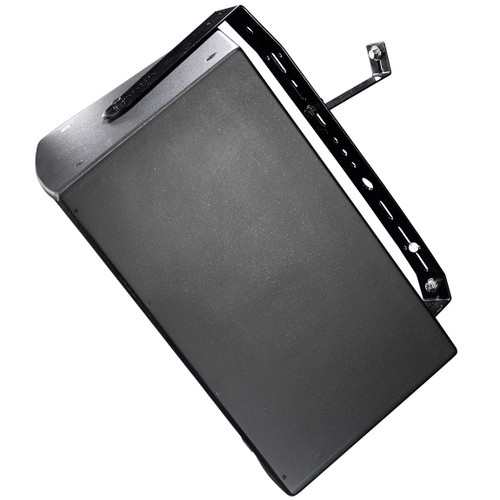

(2) Community VB-Y15 Yoke Mounting Brackets for V2-15 Speakers
(1) Middle Atlantic EWR-16-22SD 16U Wall Mount Rack
(1) Gator GRW-DRW3 Lockable 14.2" Deep 3U Rack Drawer

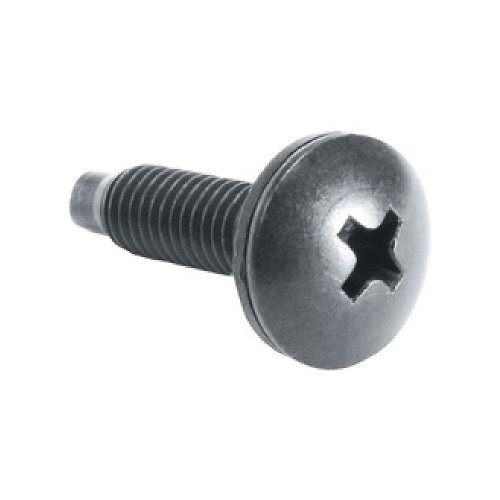

(1) Middle Atlantic HP 10-32 Truss-Head Rackscrews with Washers - (100 pc)

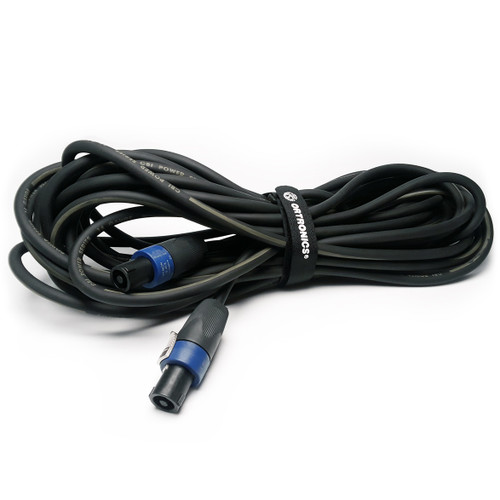

(2) CBI SNN122 12G Speakon Cables - 50ft

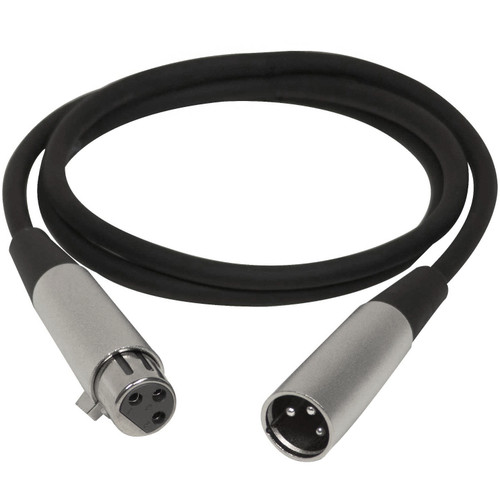

(2) Pure Resonance Audio XLR-3 Microphone Cables - 3ft
(1) Pure Resonance Audio TRS-6-PREP 1/4" TRS to Prep Patch Cable - 6ft
(1) West Penn 225 16/2 Non-Plenum Audio Speaker Wire - 500ft
