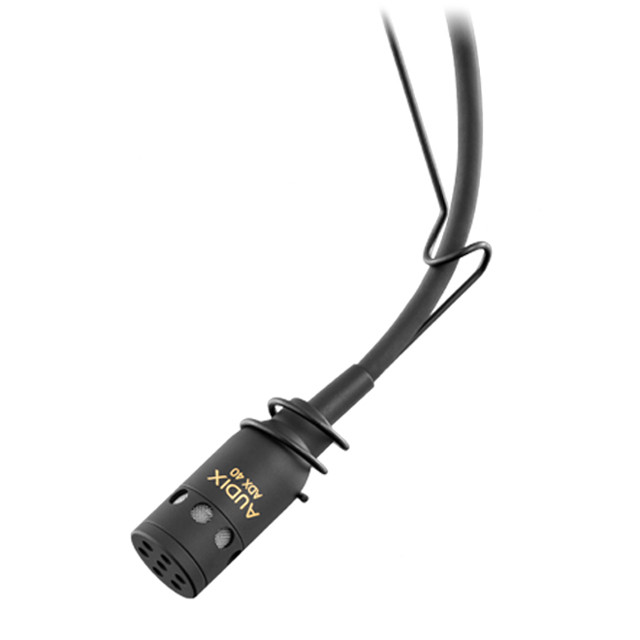

The ADX40 is a miniaturized condenser microphone designed to hang from an overhead position for applications such as group vocals, choir, theatrical production and room ambience. Known for its clarity, resistance to feedback, and ease of operation, the ADX40 has the ability to accurately capture and reproduce sound from a distance.
The ADX40 is characterized with a uniformly controlled cardioid polar pattern, helping to isolate the area or section being miked from other vocals or instruments on stage. The ADX40 is also available in a hypercardioid polar pattern (model ADX40HC) for tighter pick-up control. With a wide frequency range of 40 Hz - 20 kHz, the ADX40 provides natural sound with exceptional transient response. The ADX40 is supplied with an attached 30’ cable, external windscreen, wire hanger for positioning and phantom power adapter. Manufactured with very high standards and tight tolerances, the ADX40 features a machined brass body, field replaceable capsule and a variety of optional accessories. The ADX40 is available in non-reflective black or white finish (ADX40W).
| Transducer Type | Condenser |
|---|---|
| Frequency Response | 40 Hz - 20 kHz |
| Polar Pattern | Cardioid |
| Output Impedance | 250 ohms balanced |
| Sensitivity | 5 mV / Pa @ 1k |
| Equivalent Noise Level | 29 dB (A weighted) |
| Signal to Noise Ratio | 65 dB |
| Maximum SPL | ≥130 dB |
| Power Requirements | 9 - 52V phantom |
| Cable/Connector | Shielded 30’ terminating to a miniature 3 pin Female XLR connector |
| Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 |
| Materials / Finish | Brass / Black E-Coat |
| Length | 1.2" (30 mm) |
| Weight | 0.25 lbs (0.11 kg) |
