Audix AP42 VX5 Wireless Microphone System with R42 2-Channel Diversity Receiver and 2 H60/VX5 Handheld Transmitters
Audix AP42 VX5 Wireless Microphone System with R42 2-Channel Diversity Receiver and 2 H60/VX5 Handheld Transmitters
Audix AP42 VX5 Wireless Microphone System with R42 2-Channel Diversity Receiver and 2 H60/VX5 Handheld Transmitters

By Audix Microphones

Audix AP42 VX5 Wireless Microphone System with R42 2-Channel Diversity Receiver and 2 H60/VX5 Handheld Transmitters

Write a Review
Part #:
AP42VX5A
Model #:
AP42 VX5
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The Audix AP42 VX5 is a highly detailed handheld diversity wireless system featuring the Audix VX5, a multi-purpose, professional vocal condenser microphone designed for live, studio and broadcast applications.

Description

Audix AP42 VX5 Wireless Microphone System (522 MHz - 554 MHz / 554 MHz - 586 MHz)

A highly detailed handheld diversity wireless system featuring the Audix VX5.

The VX5 is a multi-purpose, professional vocal condenser microphone designed for live, studio and broadcast applications. With an ability to duplicate studio-quality sound on stage, the VX5 has a smooth and detailed frequency response, resistance to feedback and handles very high SPLs without distortion.

Features

R42 Two Channel Diversity Receiver:

  • 32 MHz wide spectrum tuning receiver
  • 106 Pre-coordinated frequencies
  • One-touch auto scan searches for clear channel
  • One-touch sync links transmitter to receiver via infrared beam

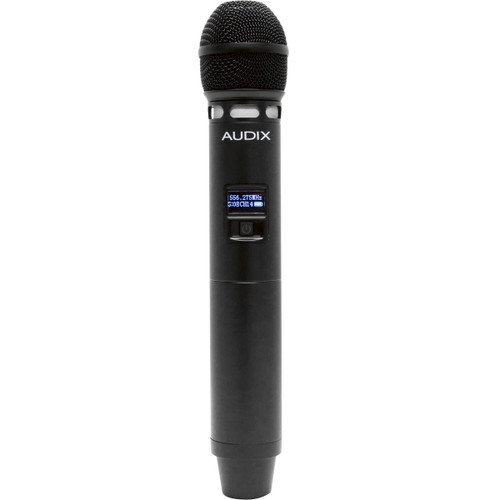

H60 VX5 Handheld Transmitter:

  • 64 MHz wide spectrum transmitter with VX5 dynamic capsule module
  • Durable metal housing
  • 14 Hour run time - AA batteries

Specifications
R42 Diversity Receiver
Frequency Range 522 MHz – 554 MHz / 554 MHz - 586 MHz
Bandwidth 32 MHz
Power Supply 100 - 240V / 50 - 60 Hz, 12V DC, 1A
Dimensions (H x W x D) 1.73" (44 mm) x 15.98" (406 mm) x 8.23" (209 mm)
Weight 4.4 lbs (2 kg)
H60/VX5 Handheld Transmitter
RF Power Output 10 mW, 40 mW
Frequency Bandwidth 64 MHz
Batteries Included (2) AA 1.5 V
14hr batter life
Max Sound Pressure Level >140 dB (depending on capsule)
Dimensions (H x Body Dia) 10.43" (265 mm) x 2.1" (53 mm)
Weight 0.69 lbs (0.31 kg)

DOCUMENTS

In The Box
  • (1) R42 32 MHz Two Channel Diversity Receiver
  • (1) H60 Handheld Transmitter with VX5 Capsule Module
  • (2) Antennas
  • (1) Audio Cable
  • (1) Clip
  • (1) Pouch
  • (4) AA Batteries
  • (1) Power Supply
  • (1) Rackmount Hardware
  • (2) BNC Cables
  • User Guide
