Audix AP42 OM5 Dual Channel Wireless Microphone System with R42 True Diversity Receiver and 2 H60/OM5 Handheld Transmitters

Description

Audix AP42 OM5 Dual Channel Wireless Handheld Microphone System

A high-performance handheld diversity wireless system featuring the legendary Audix OM5.

Since the mid-90s, the OM5 has become one of the most respected handheld dynamic mics in the world. Used on stage, in studios and for broadcast applications, the OM5 has a reputation for clarity, resistance to feedback and ability to handle SPLs in excess of 144 dB without distortion.

Features

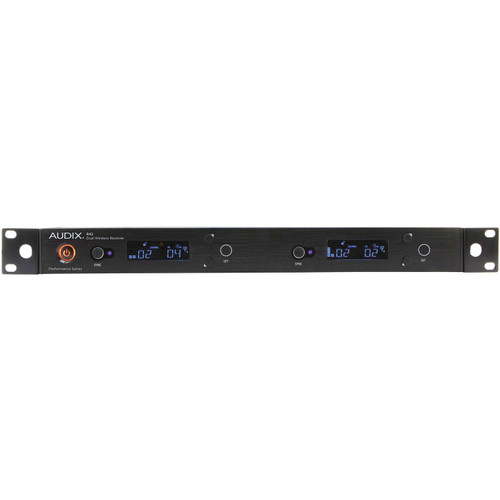

R42 Two Channel Diversity Receiver:

• 32 MHz wide spectrum tuning receiver
• 106 Pre-coordinated frequencies
• One-touch auto scan searches for clear channel
• One-touch sync links transmitter to receiver via infrared beam



H60 OM5 Handheld Transmitter:

• 64 MHz Wide spectrum transmitter with OM2 dynamic capsule module
• Durable metal housing
• 14 Hour run time - AA batteries

Specifications

R42 Wireless Receiver
Frequency Range	Band A: 522 MHz - 554 MHz Band B: 554 MHz - 586 MHz
Bandwidth	32 MHz
Compatible Systems	16 Compatible system operation
Switchable Frequencies	106 Preset frequencies
Frequency Response	45 Hz - 18 kHz
Compander System	2:1
Pilot Tone	32 kHz
Receiving System	Single tuner, diversity
Signal-to-Noise Ratio	105 dB at 30 kHz deviation (A-weighted)
Total Harmonic Distortion	≤.7% (33 kHz deviation at 1 kHz)
Sensitivity	5 dBμV (S/N 60 dB at 25 kHz deviation, A-weighted)
Audio Output (AF=0)	Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load 1/4": -18 dBv @ 25 kHz deviation, 10 kohm load
Output Connectors	1/4", XLR
Audio Level Adjust	Balanced: -12 to +9 dBu Line: -24 to +4 dBu (adjustable in 3 dB-steps)
Range	300', (91 M)
Power Supply	100 - 240V / 50 - 60 Hz, 12V DC, 1A
Dimensions (H x W x D)	1.7" (44 mm) x 16" (406 mm) x 8.22" (209 mm)
Net Weight	4.4 lbs (2 kg)
H60 Transmitter
RF Power Output	10 mW, 40 mW
Frequency Bandwidth	64 MHz
Gain Controls	0 dB, -6 dB, -12 dB
Batteries Included	2 AA 1.5 V
Current Consumption	110 mA typical
Battery Life	14 hours
Max Sound Pressure Level	>140 dB (depending on capsule)
Dimensions (L x Dia)	10.43" (265 mm) x 2.1" (53 mm)
Net Weight (Without Battery)	11 oz (312 g)

DOCUMENTS

In The Box

• (1) R42 32 MHz Two Channel Diversity Receiver
• (2) H60 Handheld Transmitters with OM5 Capsule Modules
• (2) Antennas
• (1) Audio Cable
• (2) Clips
• (2) Pouches
• (4) AA Batteries
• (1) Power Supply
• (1) User Guide
• (1) Rackmount Hardware
• (2) BNC Cables
