Audix AP61 L10 Wireless Microphone System with R61 True Diversity Receiver and B60 Bodypack Transmitter with ADX10 Lavalier Microphone
Audix AP61 L10 Wireless Microphone System with R61 True Diversity Receiver and B60 Bodypack Transmitter with ADX10 Lavalier Microphone
Audix AP61 L10 Wireless Microphone System with R61 True Diversity Receiver and B60 Bodypack Transmitter with ADX10 Lavalier Microphone
Audix AP61 L10 Wireless Microphone System with R61 True Diversity Receiver and B60 Bodypack Transmitter with ADX10 Lavalier Microphone

By Audix Microphones

Audix AP61 L10 Wireless Microphone System with R61 True Diversity Receiver and B60 Bodypack Transmitter with ADX10 Lavalier Microphone

Write a Review
Part #:
AP61L10
Model #:
AP61 L10
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The Audix AP61 L10 is a professional true diversity lavalier wireless system featuring the Audix ADX10 cardioid miniature condenser microphone, a lightweight, low profile mic designed for lavalier applications such as speech, presentation, and theatrical production.

Description

Audix AP61 L10 Wireless Microphone System (522 - 586 MHz)

A professional true diversity lavalier wireless system featuring the Audix ADX10 cardioid miniature condenser microphone.

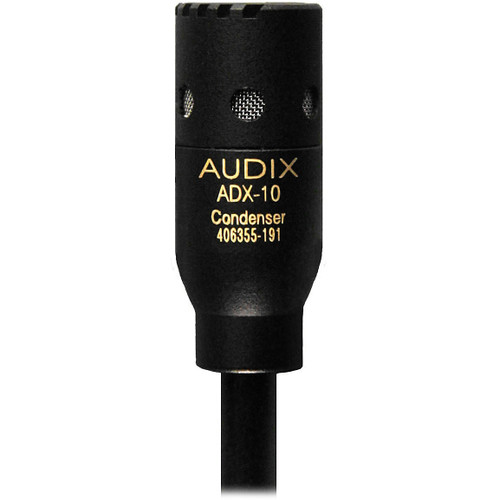

The ADX10 is a lightweight, low profile mic designed for lavalier applications such as speech, presentation, and theatrical production. With the ability to accurately capture and reproduce vocals from a comfortable distance of 4-8 inches, the ADX10 has a natural sound with exceptional response that is resistant to feedback and easy to use.

A single space rackmount kit with BNC cables for front mounting antennas is included. Optional accessories include rackmount kit for mounting two systems in one rack space, active directional antennas and antenna distribution system for up to four systems (4 channels).

Features

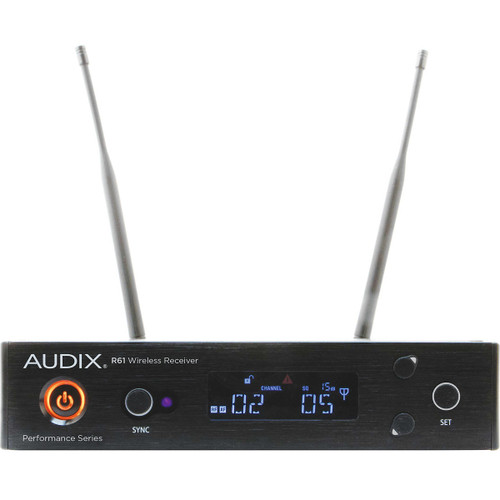

R61 True Diversity Receiver:

  • 64 MHz wide spectrum tuning receiver
  • 207 Pre-coordinated frequencies for quick, easy and reliable set up
  • One-touch auto scan searches for clear channel
  • One-touch sync links transmitter to receiver via infrared beam
  • 2560 tunable frequencies

B60 L10 Bodypack Transmitter:

  • 64 MHz wide spectrum transmitter with ADX10 lavalier
  • Durable metal housing
  • 14 Hour run time - AA batteries

Specifications
R61 True Diversity Receiver
Frequency Range 522 MHz – 586 MHz
Bandwidth 64 MHz
Power Supply 100 - 240V / 50 - 60 Hz, 12V DC, 1A
Dimensions (H x W x D) 1.73" (44 mm) x 8.07" (205 mm) x 8.11" (206 mm)
Weight 2.43 lbs (1.1 kg)
B60 Bodypack Transmitter
RF Power Output 10 mW, 40 mW
Frequency Bandwidth 64 MHz
Batteries Included (2) AA 1.5 V
14hr batter life
Max Sound Pressure Level 128 dB to140 dB (depending on mic)
Dimensions (H x W x D) 3.5" (90 mm) x 2.6" (67 mm) x 0.67" (17 mm)
Weight 0.19 lbs (0.09 kg)

DOCUMENTS

In The Box
  • (1) R61 64 MHz True Diversity Receiver
  • (1) B60 Bodypack Transmitter with ADX10 Lavalier Microphone
  • (2) Antennas
  • (1) Audio Cable
  • (1) Clip
  • (2) AA Batteries
  • (1) Carrying Case
  • (1) Power Supply
  • (1) Rackmount Hardware
  • (2) BNC Cables
  • User Guide

Related Products

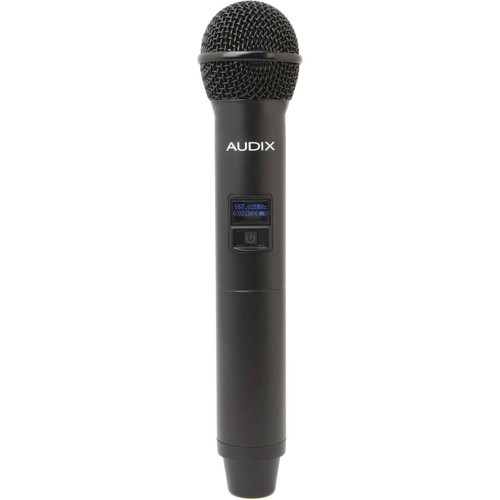

Audix AP61 OM2 Wireless Microphone System with R61 True Diversity Receiver and H60/OM2 Handheld Transmitter Audix AP61 OM2 Wireless Microphone System with R61 True Diversity Receiver and H60/OM2 Handheld Transmitter

Audix AP61 OM2 Wireless Microphone System with R61 True Diversity Receiver and H60/OM2 Handheld Transmitter

Audix AP61 OM2 Handheld Wireless Microphone System (522 - 586 MHz) The OM2, is a best-selling vocal microphone, has slight bass proximity, a tailored mid-range, and a full-bodied sound. Ideally...
MSRP: $1,043.00
$869.00

Usually arrives in 5-9 business days.

MSRP: $1,043.00
$869.00
Add to Cart The item has been added

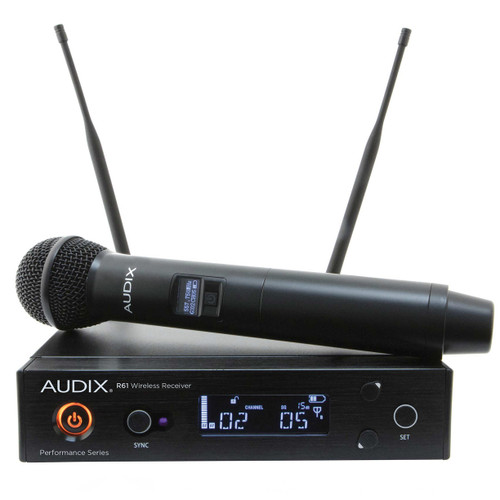

Audix AP61 OM5 Wireless Microphone System with R61 True Diversity Receiver and H60/OM5 Handheld Transmitter Audix AP61 OM5 Wireless Microphone System with R61 True Diversity Receiver and H60/OM5 Handheld Transmitter

Audix AP61 OM5 Wireless Microphone System with R61 True Diversity Receiver and H60/OM5 Handheld Transmitter

Audix AP61 OM5 Handheld Wireless Microphone System (522 - 586 MHz) A professional true diversity handheld wireless system featuring the Audix OM5. Since the mid-90s, the OM5 has become one of the...
MSRP: $1,134.00
$945.00

Usually arrives in 5-9 business days.

MSRP: $1,134.00
$945.00
Add to Cart The item has been added

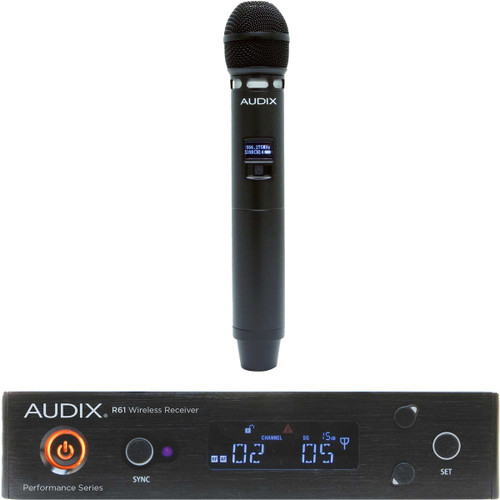

Audix AP61 VX5 Wireless Microphone System with R61 True Diversity Receiver and H60/VX5 Handheld Transmitter (522 - 586 MHz) Audix AP61 VX5 Wireless Microphone System with R61 True Diversity Receiver and H60/VX5 Handheld Transmitter (522 - 586 MHz)
