Audix AP61 OM5 Handheld Wireless Microphone System (522 - 586 MHz)
A professional true diversity handheld wireless system featuring the Audix OM5.
Since the mid-90s, the OM5 has become one of the most respected handheld dynamic mics in the world. Used on stage, in studios, and for broadcast applications, the OM5 has a reputation for clarity, resistance to feedback and the ability to handle SPLs in excess of 144 dB without distortion.
A single space rackmount kit with BNC cables for front mounting antennas is included. Optional accessories include a rackmount kit for mounting two systems in one rack space, active directional antennas and antenna distribution system for up to four systems (4 channels).
- Features
Features

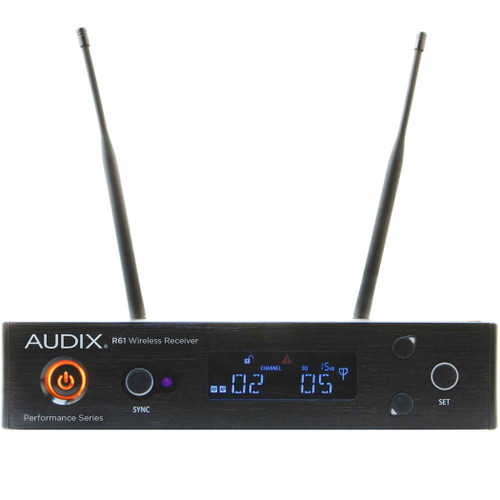

R61 True Diversity Receiver:
- 64 MHz wide spectrum tuning receiver
- 207 pre-coordinated frequencies for quick, easy and reliable set up
- One-touch auto scan searches for clear channel
- One-touch sync links transmitter to receiver via infrared beam
- 2560 tunable frequencies
H60 OM5 Handheld Microphone:
- 64 MHz wide spectrum transmitter with OM5 dynamic capsule
- Durable metal housing
- 14 hour run time - AA batteries
- Specification
R61 Receiver Frequency Range 522 MHz - 586 MHz Bandwidth 64 MHz Compatible Systems 20 Compatible System Operation Switchable Frequencies 207 Preset Frequencies Manual Mode 2560 Frequencies (spaced 25 kHz apart) Frequency Response 45 Hz - 18 kHz Compander System 2:1 Pilot Tone 32 kHz Receiving System Single tuner, true diversity Signal-to-Noise Ratio 112 dB at 30 kHz deviation (A-weighted) Total Harmonic Distortion ≤0.4% (33 kHz deviation at 1 kHz) Sensitivity 5 dBμV (S/N 60 dB at 25 kHz deviation, A-weighted) Audio Output (AF=0) Balanced: -12 dBv @ 25 kHz deviation, 600 ohm load
1/4": -18 dBv @ 25 kHz deviation, 10 kohm loadOutput Connectors 1/4", XLR Audio Level Adjust Balanced: -12 to +9 dBu
Line: -24 to +4 dBu (adjustable in 6 dB-steps)Range 450', (137 M) Power Supply 100 - 240V / 50 - 60 Hz, 12V DC, 1A Dimensions (H x W x D) 1.73" (44 mm) x 8" (205 mm) x 8.1" (206 mm) Net Weight 2.43 lbs (1.1 kg) H60 Transmitter RF Power Output 10 mW, 40 mW Frequency Bandwidth 64 MHz Gain Controls 0 dB, -6 dB, -12 dB Batteries Included 2 AA 1.5 V Current Consumption 110 mA typical Battery Life 14 hours Max Sound Pressure Level >140 dB (depending on capsule) Dimensions (L x Dia) 10.43" (265 mm) x 2.1" (53 mm) Net Weight (Without Battery) 11 oz (312 g) - Documents
Documents
- In The Box
In The Box
- (1) R61 64 MHz True Diversity Receiver
- (1) H60 Handheld Transmitter with OM5 Capsule Module
- (2) Antennas
- (1) Audio Cable
- (1) Clip
- (1) Pouch
- (2) AA Batteries
- (1) Carrying Case
- (1) Power Supply
- (1) User Guide
- (1) Rackmount Hardware
- (2) BNC Cables
