The DP7 represents an outstanding combination of seven microphones designed to meet the demands of today's professional drummer, both on the stage and in the studio.
Included in the DP7 drum mic package is the D6, Audix's flagship kick drum mic, two- D2's for rack toms, one D4 for floor tom, the i5 for snare, and a pair of ADX51s for overhead miking. Also included are four D-Vice rim mount clips for the snare and tom mics, and three heavy duty tension fit mic clips for the other three mics. Everything is conveniently packaged in a foam-lined aluminum road case for safe keeping when the mics are not in use.
| D6 Kick Drum Microphone | |
|---|---|
| Application | Kick Drum, floor tom, djembe, cajon |
| Transducer Type | Dynamic VLM Type D (Transformerless) |
| Frequency Response | 30 Hz - 15 kHz |
| Polar Pattern | Cardioid |
| Output Impedance | 200 Ohms |
| Open Circuit Sensitivity (1 Pa = 94 dB SPL) | 2.2 mV |
| Maximum SPL | 144 dB |
| Off-Axis Rejection | >20 dB |
| Housing | Machined Aluminum / Black Hard Coat |
| Length | 4.6" (117 mm) |
| Weight | 0.48 lbs (0.22 kg) |
| i5 Snare Drum Microphone | |
| Application | Snare (top or bottom), toms, hand percussion, guitar cabs, acoustic instruments |
| Transducer Type | Dynamic VLM Type B (Transformerless) |
| Frequency Response | 46 Hz - 18 kHz |
| Polar Pattern | Cardioid |
| Output Impedance | 150 Ohms |
| Open Circuit Sensitivity (1 Pa = 94 dB SPL) | 1.9 mV |
| Maximum SPL | 140 dB |
| Off-Axis Rejection | >23 dB |
| Housing | Cast Zinc Alloy / Black E Coat |
| Length | 5.6" (141.5 m) |
| Weight | 0.41 lbs (0.19 kg) |

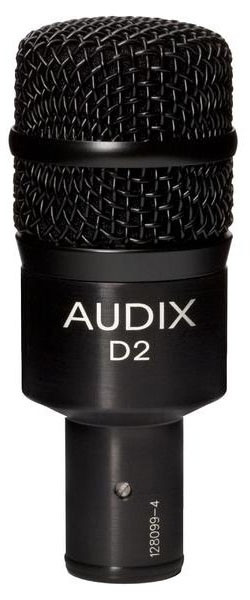

| D2 Rack Tom Microphone | |
| Application | Rack toms, floor tom, congas |
| Transducer Type | Dynamic VLM Type B (Transformerless) |
| Frequency Response | 44 Hz - 18 kHz |
| Polar Pattern | Hypercardioid |
| Output Impedance | 250 Ohms |
| Open Circuit Sensitivity (1 Pa = 94 dB SPL) | 2.5 mV |
| Maximum SPL | 144 dB |
| Off-Axis Rejection | >30 dB |
| Housing | Machined Aluminum / Black Hard Coat |
| Length | 3.9" (100 mm) |
| Weight | 0.28 lbs (0.13 kg) |
| D4 Floor Tom Microphone | |
| Application | Floor tom, djembe |
| Transducer Type | Dynamic VLM Type D (Transformerless) |
| Frequency Response | 38 Hz - 19 kHz |
| Polar Pattern | Hypercardioid |
| Output Impedance | 200 Ohms |
| Open Circuit Sensitivity (1 Pa = 94 dB SPL) | 2.1 mV |
| Maximum SPL | 144 dB |
| Off-Axis Rejection | >30 dB |
| Housing | Machined Aluminum / Black Hard Coat |
| Weight | 0.28 lbs (0.13 kg) |
| ADX51 Overhead Microphone | |
| Application | Overheads, cymbals, hi-hat, goodie table |
| Transducer Type | Condenser (pre-polarized) |
| Frequency Response | 40 Hz - 18 kHz |
| Polar Pattern | Cardioid |
| Output Impedance | 100 Ohms |
| Open Circuit Sensitivity (1 Pa = 94 dB SPL) | 15.9 mV |
| Power Requirements | 9 - 52 v phantom |
| Maximum SPL | >135 dB |
| Housing | Machined Brass |
| Length | 6.3" (160 mm) |
| Weight | 0.31 lbs (0.14 kg) |
