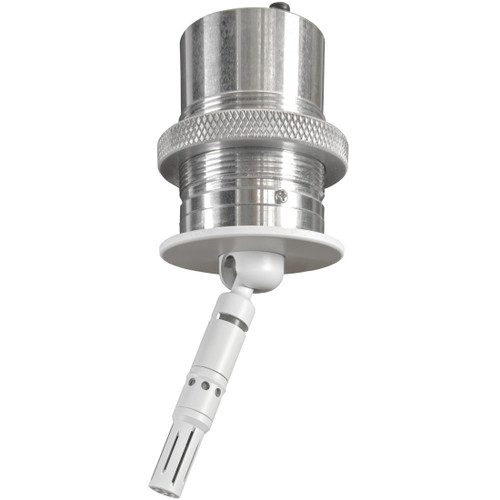

The M45 is a miniaturized shotgun condenser microphone with a swivel-and-pivot base for convenient positioning. The M45 is optimized for vocal intelligibility and offers high sensitivity, an integrated preamp, immunity from RF interference, and is easy to install in a 1-1/2" hole with no additional tools required.
Mic-level signal and LED control is over an RJ45 connection. An adapter is included to convert from RJ45 to an 8-conductor pluggable terminal block.
For use in Dante® networks, the optional AUDIX DN4 Enhanced Onramp for Dante | AES67 supports up to four devices and includes LED logic control.
Designed, machined, assembled, and tested by Audix in Wilsonville, Oregon
| Transducer | Condenser |
|---|---|
| Frequency Response | 85 Hz - 8 kHz |
| Polar Pattern | Supercardioid |
| Output Impedance | 150 ohms |
| Sensitivity | 98 mV / Pa @ 1 kHz |
| Signal/Noise Ratio | 72 dB |
| Maximum SPL | >124 dB |
| Dynamic Range | 100 dB |
| Operating Voltage | 18-52 V |
| Connector | RJ45 |
| Materials / Finish | Brass & Aluminum / White |
| Weight | 0.43 lbs (0.19 kg) |
