Audix NCBPADX10 NovaCore UHF Digital Wireless Bodypack Transmitter with ADX10 Cardioid Lavalier Microphone (494 - 542 MHz)

Part #:
NCBPADX10
Model #:
NCBPADX10
MSRP: $503.00
$419.00
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The Audix NCBPADX10 NovaCore combines a UHF digital wireless bodypack transmitter with the ADX10 cardioid lavalier microphone. Operating in the 494 - 542 MHz band, it features AES-256 encryption, USB-C charging, and low-latency wireless performance for professional speech and presentation.

Description

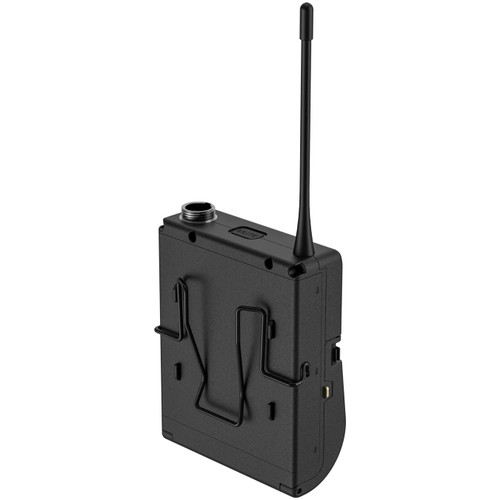

Audix NCBPADX10 NovaCore UHF Digital Wireless Bodypack Transmitter

The NCBPADX10 NovaCore UHF digital wireless bodypack transmitter with ADX10 Cardioid Lavalier Microphone is a complete wireless solution for presenters, clergy, performers, educators, and broadcast professionals who require reliable, hands-free audio. Operating in the 494 - 542 MHz frequency band, the system delivers secure AES-256 encrypted digital transmission with less than 3 ms latency and one-touch IR synchronization for fast, dependable setup in live sound and installed audio environments.

The included Audix ADX10 cardioid lavalier condenser microphone delivers natural vocal clarity with excellent off-axis rejection, making it ideal for podium presentations, houses of worship, theaters, corporate events, and broadcast applications where clear speech and feedback resistance are essential. The NCBP bodypack transmitter features a TA3M microphone input, adjustable input gain from -12 dB to +18 dB, a selectable low-cut filter, limiter, phase invert, and a dedicated 3.5 mm remote mute input for use with external latching or momentary mute switches.

Powered by two AA alkaline batteries or the optional Audix NCLB rechargeable lithium-ion battery, the NCBPADX10 provides more than nine hours of continuous operation. Built-in USB-C charging simplifies power management, while compatibility with optional NCC1 and NCC2 charging stations supports efficient charging for multi-system deployments. The transmitter is also compatible with other Audix lavalier and headset microphones, providing the flexibility to adapt to a wide range of professional wireless applications.

Features

  • Complete UHF digital wireless bodypack transmitter and lavalier microphone system
  • Operates in the 494 - 542 MHz frequency band
  • Includes Audix ADX10 cardioid lavalier condenser microphone
  • Secure AES-256 encrypted digital wireless transmission
  • One-touch infrared synchronization with NovaCore receivers
  • Less than 3 ms latency for real-time wireless performance
  • TA3M microphone input compatible with Audix lavalier and headset microphones
  • Adjustable input gain from -12 dB to +18 dB
  • Built-in low-cut filter, limiter, and phase invert
  • Dedicated 3.5 mm remote mute input for external mute switches
  • Powered by two AA batteries or optional NCLB rechargeable battery
  • Integrated USB-C charging
  • Compatible with optional NCC1 and NCC2 charging stations
  • Compatible with additional Audix TA3F-terminated microphones
  • Ideal for presentations, worship, theater, education, and broadcast

Specifications

NCBP Transmitter
RF Frequency Range UHF 494 - 542 MHz
Included Microphone Audix ADX10 Cardioid Lavalier Condenser Microphone
Encryption AES 256-bit digital encryption
Audio Controls Variable gain (-12 to +18 dB), low-cut filter, limiter, and phase invert
Battery & Charging Up to 9+ hours; USB-C charging or Audix NCC1/NCC2 charging station
Dimensions (H x W x D) 3.15" (80 mm) x 2.60" (66 mm) x 0.98" (25 mm)
Weight  Approx. 0.21 lbs (0.1 kg) (no battery)
ADX10 Microphone
Transducer Type Pre-Polarized Condenser
Polar Pattern Cardioid
Output Impedance 800 ohms
Signal to Noise Ratio >65 dB
Maximum SPL ≥120 dB
Sensitivity 5 mV/Pa @ 1k
Connector Shielded 3’ terminating to a miniature 3-pin female XLR connector
Length 0.98" (25 mm)
Weight 0.05 lbs (0.02 kg)

DOCUMENTS

In The Box

  • (1) NCBP Novacore UHF Digital Bodypack Transmitter
  • (1) ADX10 Cardioid Lavalier Condenser Microphone

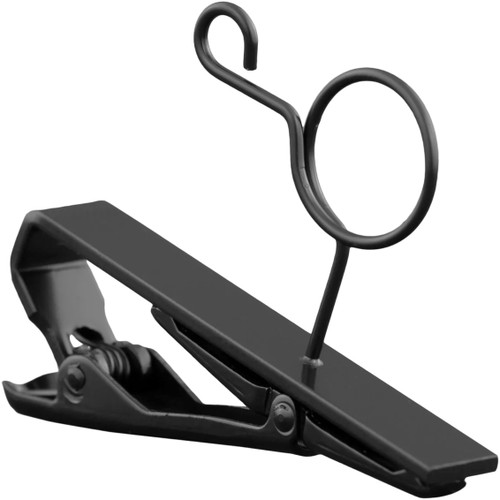

  • (1) NCBC Belt Clip
  • (1) NCCC 20" Charging Cable, USB-A to USB-C
