Bar and Restaurant Sound System with 12 Atlas Sound FAP42T In-Ceiling Speakers, 2 Zone 8-Channel Mixer and Dual-Impedance Power Amplifier (Discontinued Components)

Inside the Design

This bar and restaurant sound system delivers professional-quality audio throughout your dining space, creating an inviting atmosphere for customers. It features twelve high-quality Atlas Sound FAP42T in-ceiling loudspeakers for even sound distribution, ensuring every corner of the space is covered with clear, balanced audio. The Pure Resonance Audio MX82 8-channel mixer provides flexible audio control for managing multiple sources, while the DA2240 dual-impedance amplifier ensures consistent, powerful performance for both 70V and 100V systems. Two Lowell 200LVC volume controls allow for precise sound adjustments in different areas of the space, enhancing the dining experience. Additionally, the system comes with durable patch cables and audio wiring to ensure smooth, stable performance. This setup is perfect for restaurants and bars looking for high-performance audio with seamless integration into their environment.

Sound System Features

• Twelve in-ceiling loudspeakers for balanced, high-quality audio coverage
• 8-channel mixer for managing multiple audio sources
• Dual-impedance amplifier for reliable, consistent sound in 70V/100V systems
• Two volume controls for separate zone audio adjustments
• Durable patch cables and audio wiring for reliable installation
• Ideal for restaurants, bars, and other dining spaces

About the System Components

Atlas Sound FAP42T In-Ceiling Loudspeakers

The Atlas Sound FAP42T loudspeakers are designed for commercial use, offering high-quality audio with a 4-inch coaxial design. These speakers are perfect for bars and restaurants, providing clear and consistent sound throughout the space. Their low-profile, flush-mount design ensures that they integrate seamlessly into the ceiling, while their wide dispersion ensures even audio coverage for both background music and announcements.

Pure Resonance Audio MX82 8-Channel Mixer

The Pure Resonance Audio MX82 mixer provides versatile audio control for up to eight channels, allowing you to manage multiple audio sources such as microphones, music players, and more. It’s perfect for environments like bars and restaurants where different audio sources need to be balanced and adjusted. With two independent zones, you can easily control sound in different areas of the space, ensuring an optimal audio experience throughout.

Pure Resonance Audio DA2240 Dual-Impedance Amplifier

The DA2240 amplifier delivers 240 watts of power to drive the sound system efficiently. It supports both 70V and 100V impedance systems, providing flexibility for different installation needs. With its reliable performance, the amplifier ensures that the speakers are powered consistently, offering clear sound even in large or acoustically challenging environments.

Lowell 200LVC 2-Gang Volume Controls

The Lowell 200LVC volume controls offer precise adjustments to audio levels in separate zones. Their sleek stainless steel finish complements the modern aesthetic of any restaurant or bar, and their 200W capacity makes them perfect for controlling the sound in larger spaces. These volume controls provide the flexibility to adjust audio levels based on the zone, ensuring the ideal atmosphere in every part of your establishment.

Atlas Sound FAP42T In-Ceiling Loudspeakers

• Extended low frequency response from the 285 in optimally tuned and ported deep drawn, galvanized steel enclosure
• Easy installation in drop tile or sheetrock ceilings via C-Ring / V-Rail tile bridge and "Dog Leg" mounting system (Included)
• Front mounted tap selector switch for easy system tuning adjustments includes transformer bypass setting for 8Ω/ direct coupled operation
• Unique "trap door" input section allows for through conduit runs with rigid or flex conduit
• 4 Pole detachable Phoenix style / Euro connector allows easy pre-wiring and is convenient for daisy chaining additional Strategy Series full range speakers or subwoofers
• "Press fit" grilles blend better into contemporary architecture
• Enhanced quality 70.7V / 100V internal transformers minimize insertion loss and maintain low frequency response while providing increased output for higher SPL applications
• Also Available in Black FAP42T-B

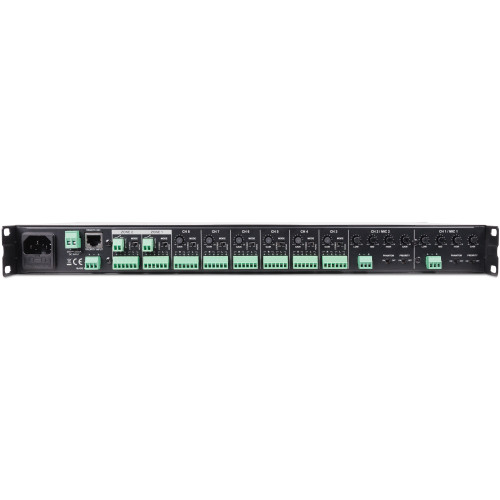

Pure Resonance Audio MX82 2 Zone 8-Channel Rack Mount Mic/Line Mixer

• Convenient Design -Professional-quality mixer in a compact 1U rack-mountable design, with high-quality components ensuring top-notch performance
• 8-Channels+ - 8 convenient balanced inputs with gain controls, intuitive zone buttons, and signal and clipping protection indicator lights
• 2 Zones -2 zone outputs, each equipped with 2-band EQ, external mute connector, signal, -10 dB, and clipping indicators
• Channel Control -Channels 1-2 feature microphone inputs with 3-band EQ, phantom power switch, and priority switch, while channels 3-8 offer line inputs with a stereo/mono mode switch
• Remote Mic -Priority remote mic RJ45 connection features audio ducking and paging zone selection to a single zone or all zones (for use with the MX8-PM only)
• Priority Mute -Balanced input suppresses all non-priority sources and seamlessly integrates with independent emergency alarm systems

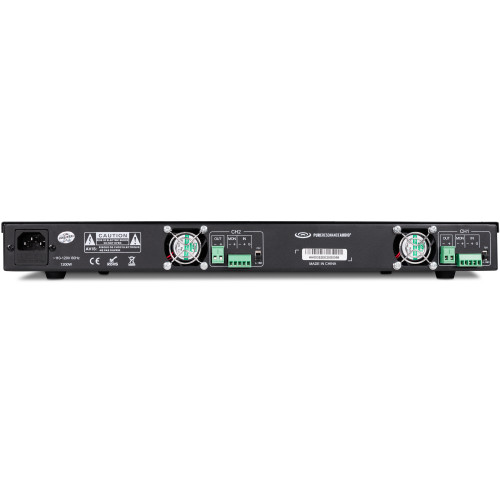

Pure Resonance Audio DA2240 Dual-Impedance 240W Rack Mount Power Amplifier

• Highly Efficient - High-performance switching power supply and Class-D type power amplifier provides 85% efficiency with low power loss and heat output
• Dual-Impedance - Unique dual-impedance operation with independent 4-16Ω and 70V output terminal switches enables each channel to use a different impedance simultaneously. The balanced inputs and outputs feature detachable Euroblock terminals
• Powerful - Two 240-watt channels (at 70V and 4Ω) with 70-volt and 4, 8, or 16-ohm output switches
• Compact Size - Compact, lightweight, yet durable 1 rack unit 19-inch industrial chassis with a clean, intuitive design
• Works Long Hours - Automatic cooling fans effectively dissipate heat, ensuring safe and reliable operation even in harsh conditions over extended periods
• Safeguard Protected - High temperature, overload, and short circuit protection with signal, peak clipping, protection, and power supply indicator lights

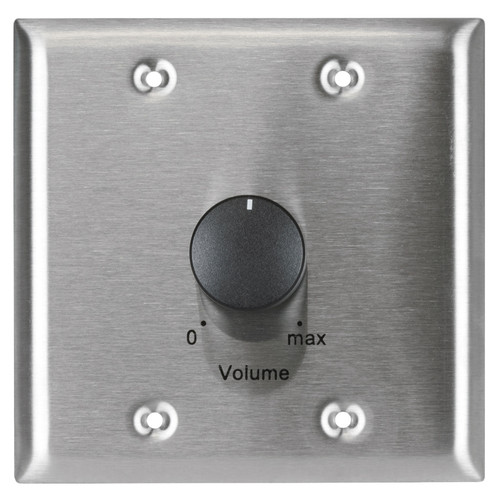

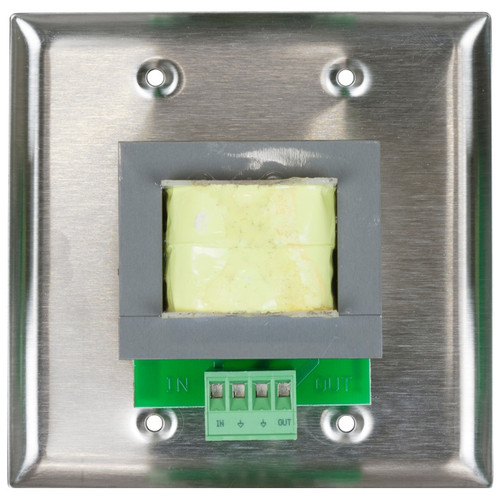

Lowell 200LVC 200W 70/100V 2-Gang Volume Controls

• Stainless steel assembly mounts in two-gang
• E.O.Box with minimum depth requirement of 2.5"
• Mud ring
• Non-corrosive wall plate

• (12) Atlas Sound FAP42T In-Ceiling Loudspeakers
• (1) Pure Resonance Audio MX82 2 Zone 8-Channel Rack Mount Mic/Line Mixer
• (1) Pure Resonance Audio DA2240 Dual-Impedance 240W Rack Mount Power Amplifier
• (2) Lowell 200LVC 200W 70/100V 2-Gang Volume Controls - Stainless Steel

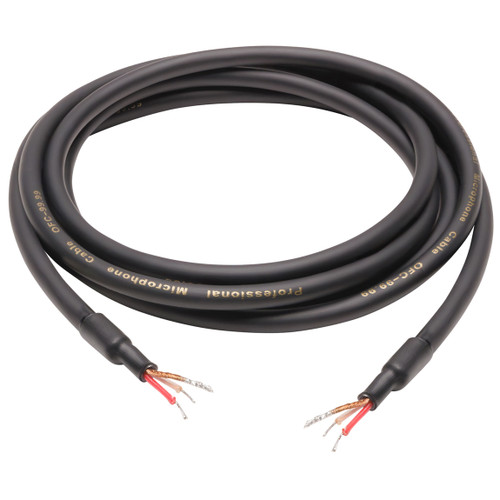

• (2) Pure Resonance Audio Prep Wire to Prep Wire Patch Cables - 3ft
• (1) Vertical Cable 209-2315/BK 65 Strand 16AWG, 2 Conductor Audio Wire - Black (500ft)
