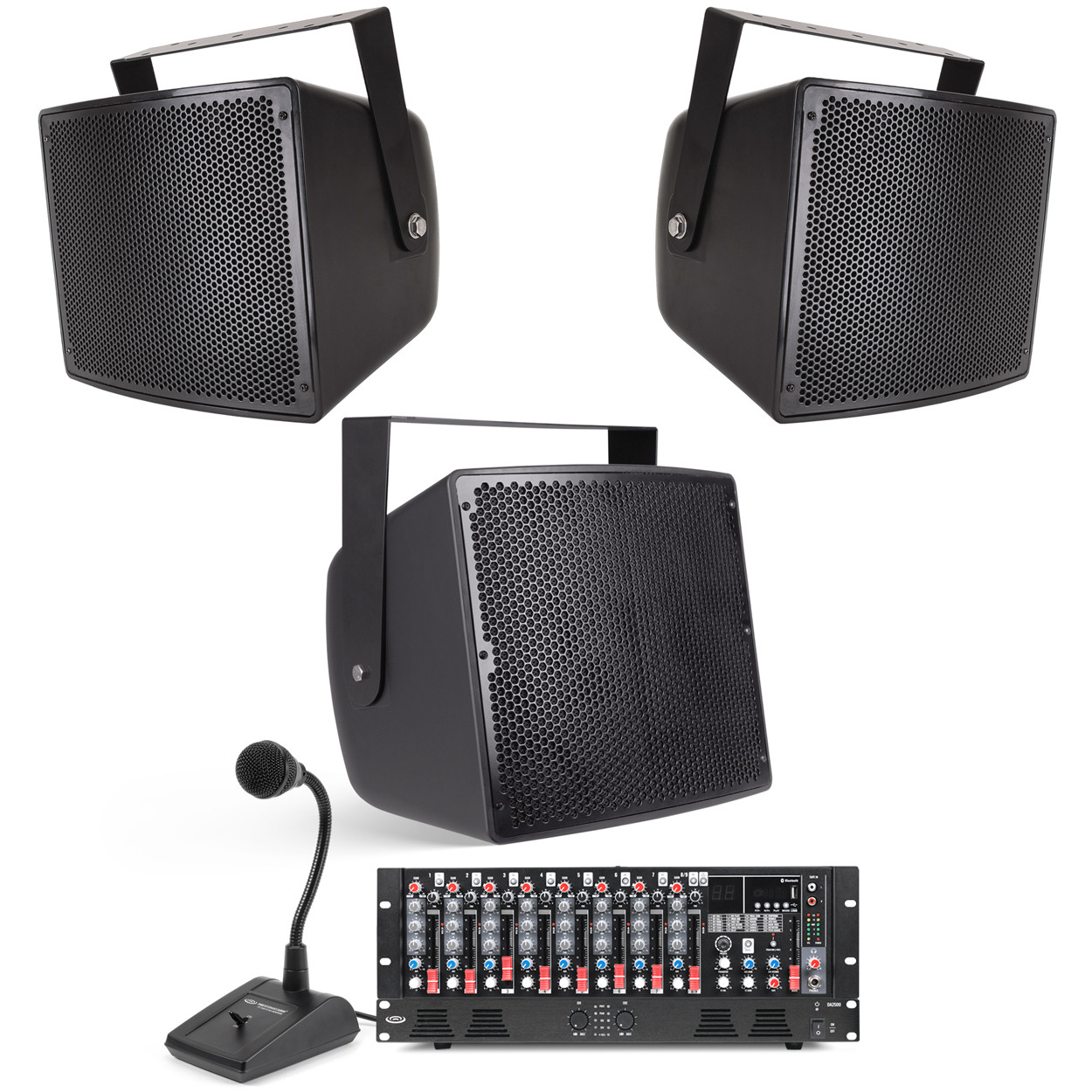

Baseball Field Sound System with an S12 12" and 2 S10 10" Stadium Speakers, MX9 9-Channel Mixer, DA2500 Power Amplifier and PTT1 Paging Microphone

Inside the Design

Elevate your sports event with this baseball field sound system. Designed for exceptional clarity and coverage, the S12 12" full-range all-weather loudspeaker, paired with two S10 10" all-weather loudspeakers, ensures incredible sound reproduction. With IP66 weatherproof rating, they stand strong against the elements, ensuring reliable operation in any weather condition. The MX9 9-channel rack mount mixer offers seamless Bluetooth connectivity and built-in effects, enhancing the atmosphere with wireless music streaming and precision sound adjustments. At the core of this system is the DA2500 dual-impedance 500W rack mount power amplifier, providing unwavering strength and consistent power to the speakers while adapting effortlessly to different configurations for optimized performance. This system is seamlessly integrated with the PTT1 desktop push-to-talk gooseneck microphone, guaranteeing crystal-clear narration of play-by-plays and important announcements. From the roar of the crowd to the crisp clarity of the announcer's voice, our baseball field sound system delivers an immersive audio experience that enhances every moment of the game.

Sound System Features:

• Highly weatherproof IP66 rated construction with fiber-reinforced plastic and metal enclosure with a metal grill ensures solid durability and full protection against dust and other particles as well as direct high-pressure water jets for long-term reliability in severe outdoor environments
• Professional quality mixer features Bluetooth audio streaming, MP3, USB with sound card function, and recording. Built-in 24-bit DSP effects processor allows users to quickly and easily add a range of effects
• The 9-channel mixer consists of 7 balanced input interfaces with 48V phantom power and 2 unbalanced mono and stereo inputs, as well as Tape In and recording inputs and outputs
• High-performance switching power supply and Class-D type power amplifier with two 500-watt channels (at 70V and 4Ω) with 70-volt and 4, 8, or 16-ohm output switches
• Unique dual-impedance operation with independent 4-16Ω and 70V output terminal switches enables each channel to use a different impedance simultaneously. The balanced inputs and outputs feature detachable Euroblock terminals
• The PTT1 push-to-talk tabletop microphone is ideal for paging, announcements, and general public address applications



About the System Components

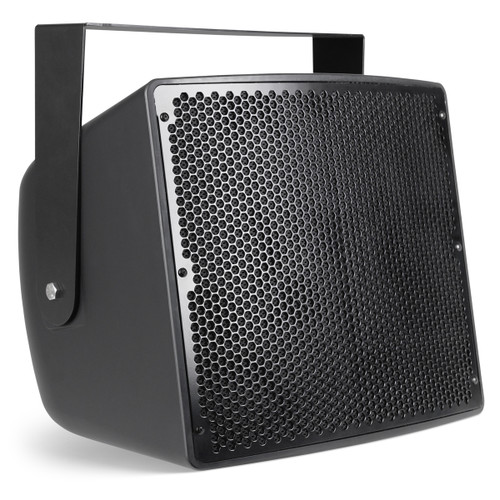

S12 12" ALL-WEATHER STADIUM LOUDSPEAKERS

The Pure Resonance Audio S12 is a 12" multipurpose 2-way full-range all-weather outdoor speaker that offers a wider frequency range, more powerful sound, and enhanced coverage compared to its smaller sibling, the S10 10" speaker. While the S10 is a reliable and economical choice, the S12 provides a step up in size and performance for those seeking greater capabilities. This outdoor stadium speaker boasts an IP66 rating, ensuring it is dust-tight and protected against high water pressure. The S12 is made to withstand harsh environmental conditions with a stainless steel enclosure, fiber-reinforced plastic cover, and a metal grill. Equipped with a 12" coaxial woofer and 1.5" tweeter, it delivers a full-frequency response and precise speech reproduction over a wide area. This 70-volt outdoor speaker features a built-in 300-watt 70V/100V multi-tap transformer with an 8-ohm bypass for high-output sound. Easy to mount with an included wall bracket, the S12 speaker is perfect for music, paging, and general public address.

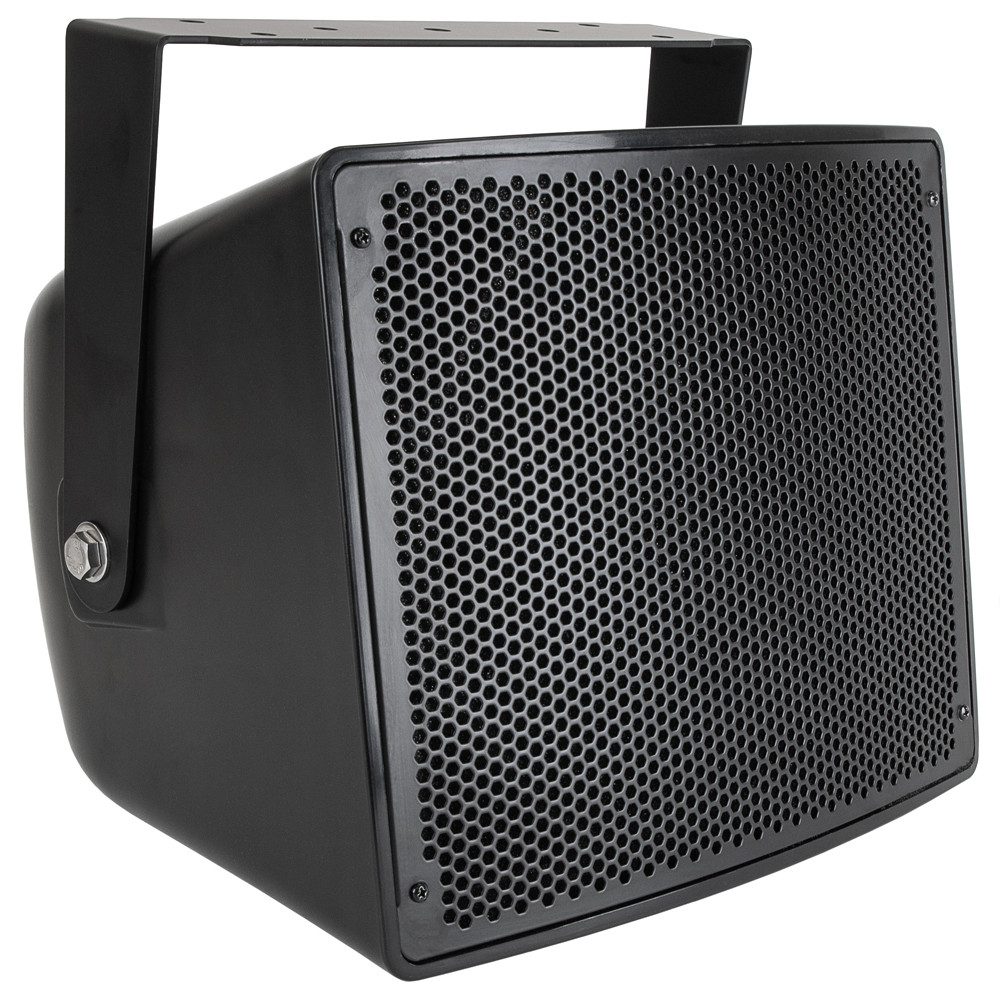

S10 10" ALL-WEATHER STADIUM LOUDSPEAKERS

The Pure Resonance Audio S10 10" outdoor weatherproof stadium loudspeaker is built to withstand exposure to the harshest environmental conditions of outdoor installations while delivering high-quality audio performance. A tough fiber-reinforced plastic and metal housing with a metal grill maintains solid durability and long service life. IP66 rated, this highly weather-resistant speaker is fully protected against dust or dirt particles and direct high-pressure water. The S10 is an ideal solution for background and foreground music, paging, and public address in stadiums, sports facilities, athletic centers, arenas, and a wide variety of other challenging indoor and outdoor commercial applications.

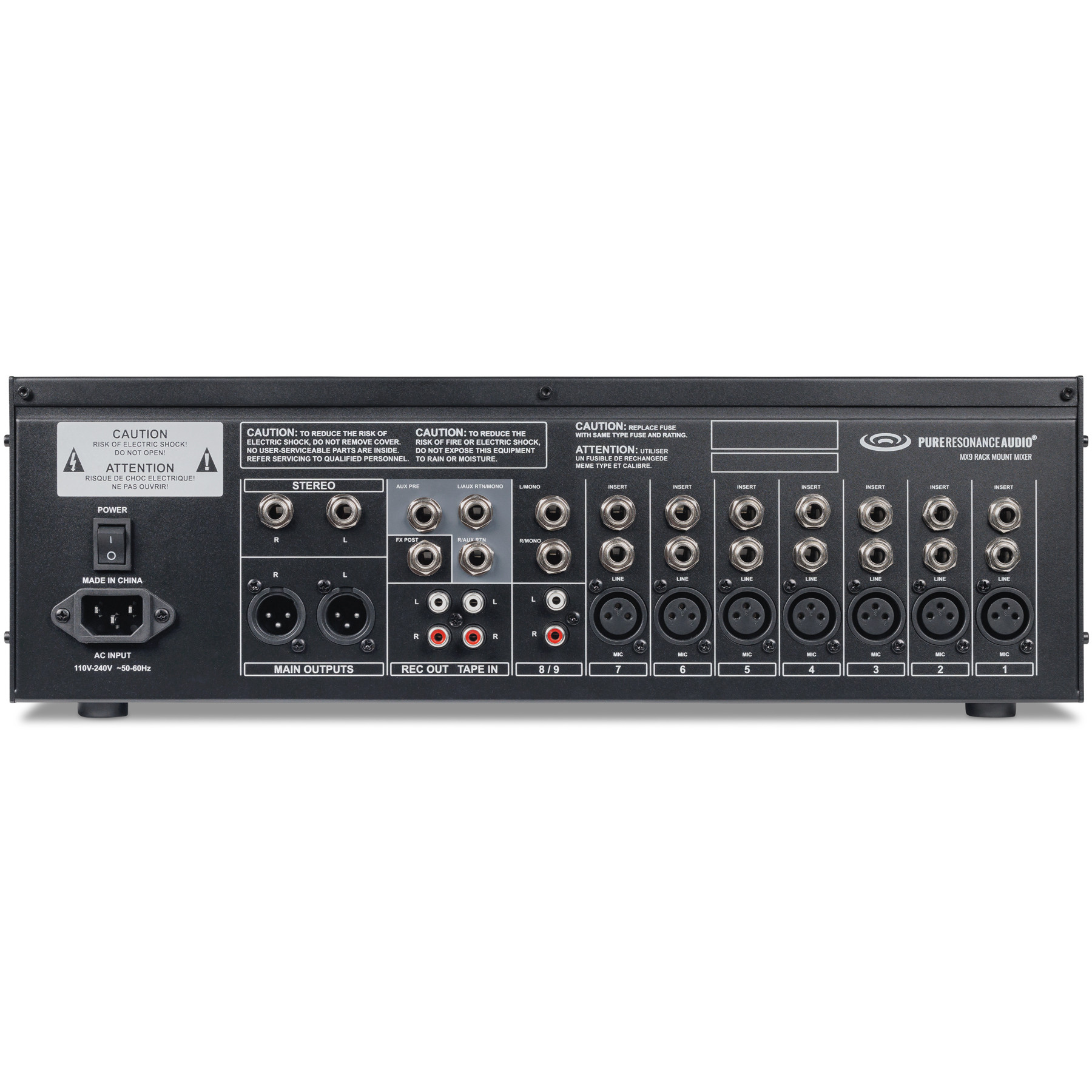

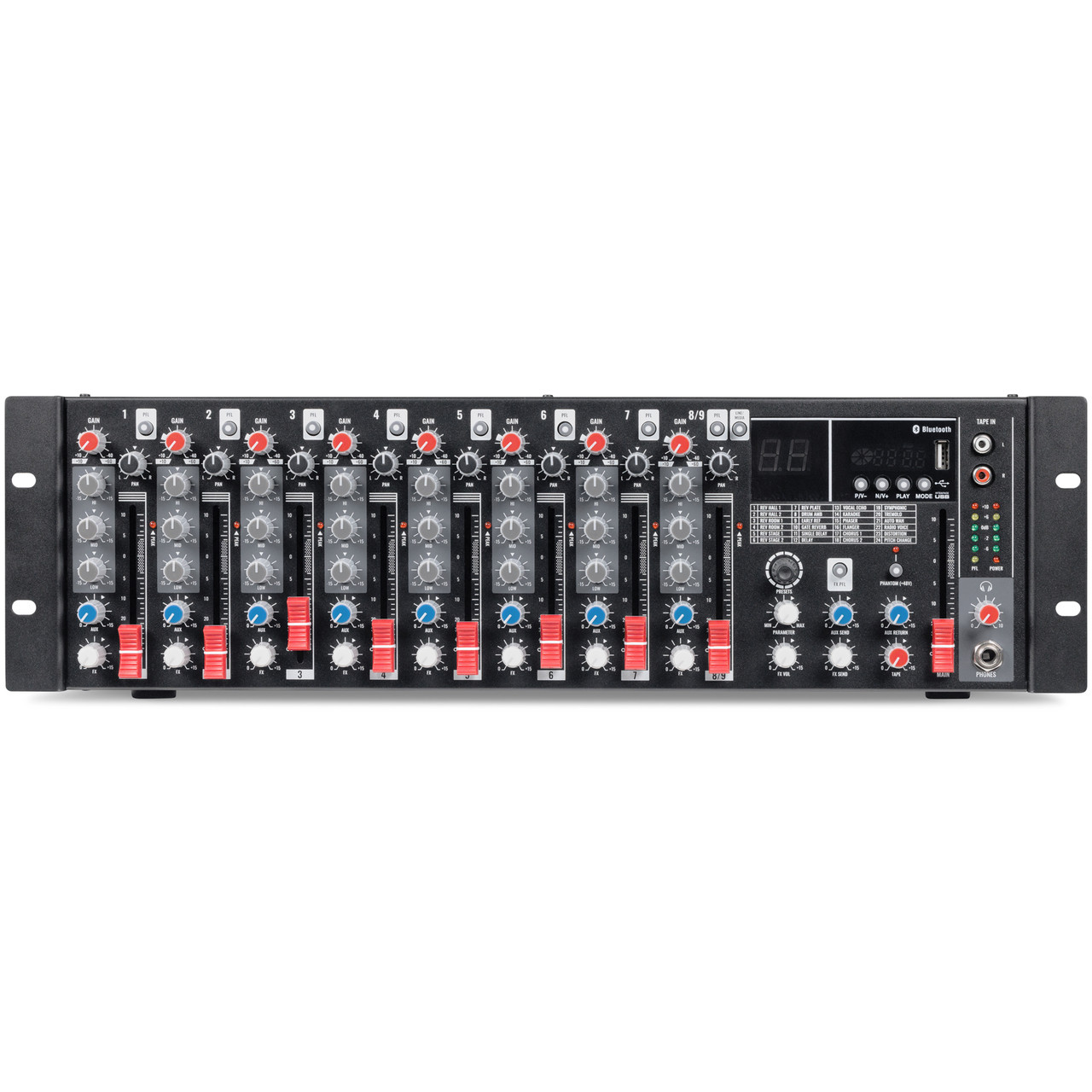

MX9 9-CHANNEL MIXER WITH BLUETOOTH & EFFECTS

The Pure Resonance Audio MX9 redefines the rack mount audio mixer, offering versatile mixing, effects, and control of 9 mixing channels, all conveniently packaged in a space-saving 3U chassis. This rack-mounted mixer provides a wide range of inputs with the ability to adapt to virtually any audio source. The MX9 features an onboard 24-bit DSP effects processor, allowing users to quickly and easily add a range of effects to their mixes with simple channel operation. In addition, the generously equipped 9-channel rack mount mixer includes a media player with a display screen that supports Bluetooth audio streaming, MP3, and USB. Featuring an extensive connectivity range for true versatility and professional sound quality, the MX9 is perfect for both fixed installations and mobile rigs.

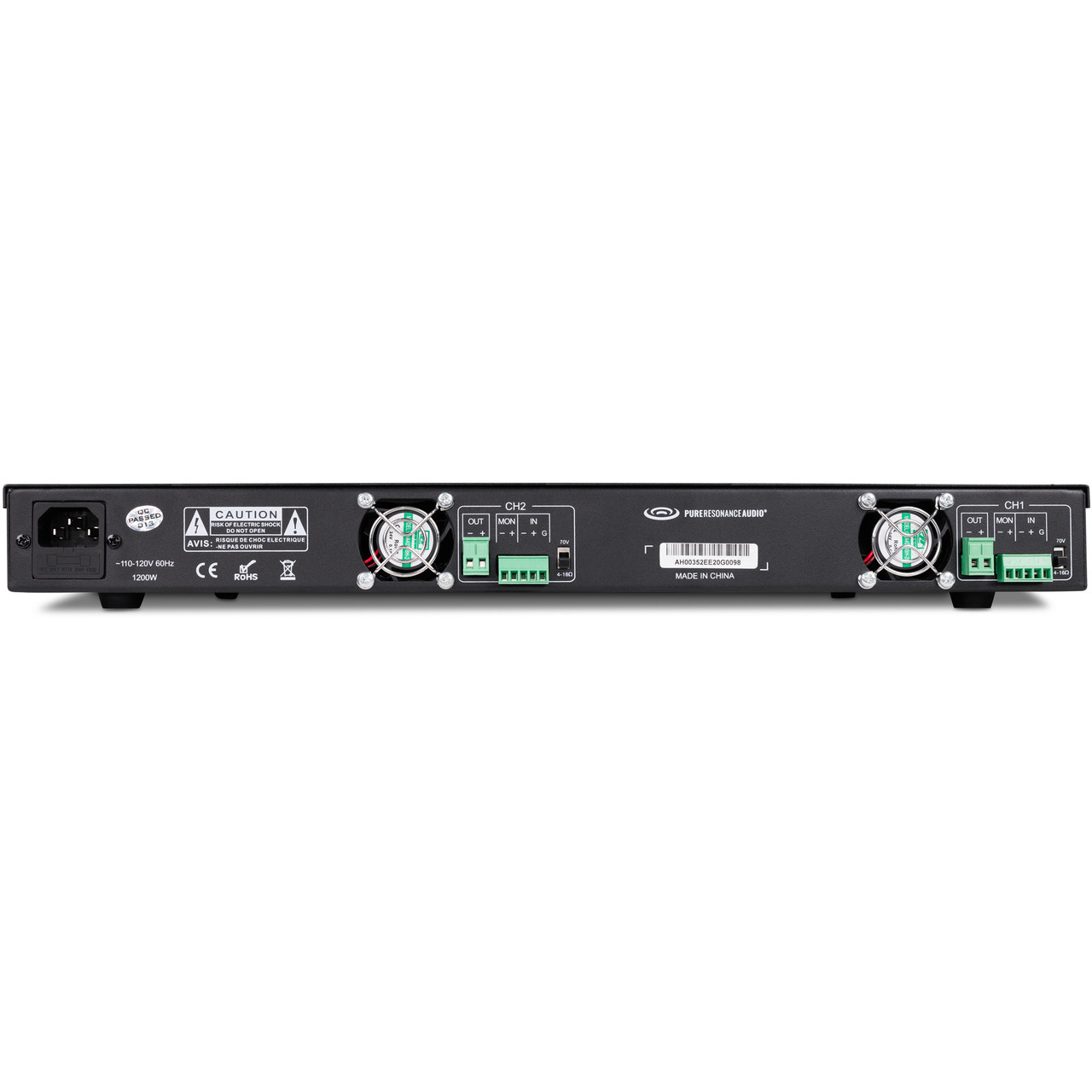

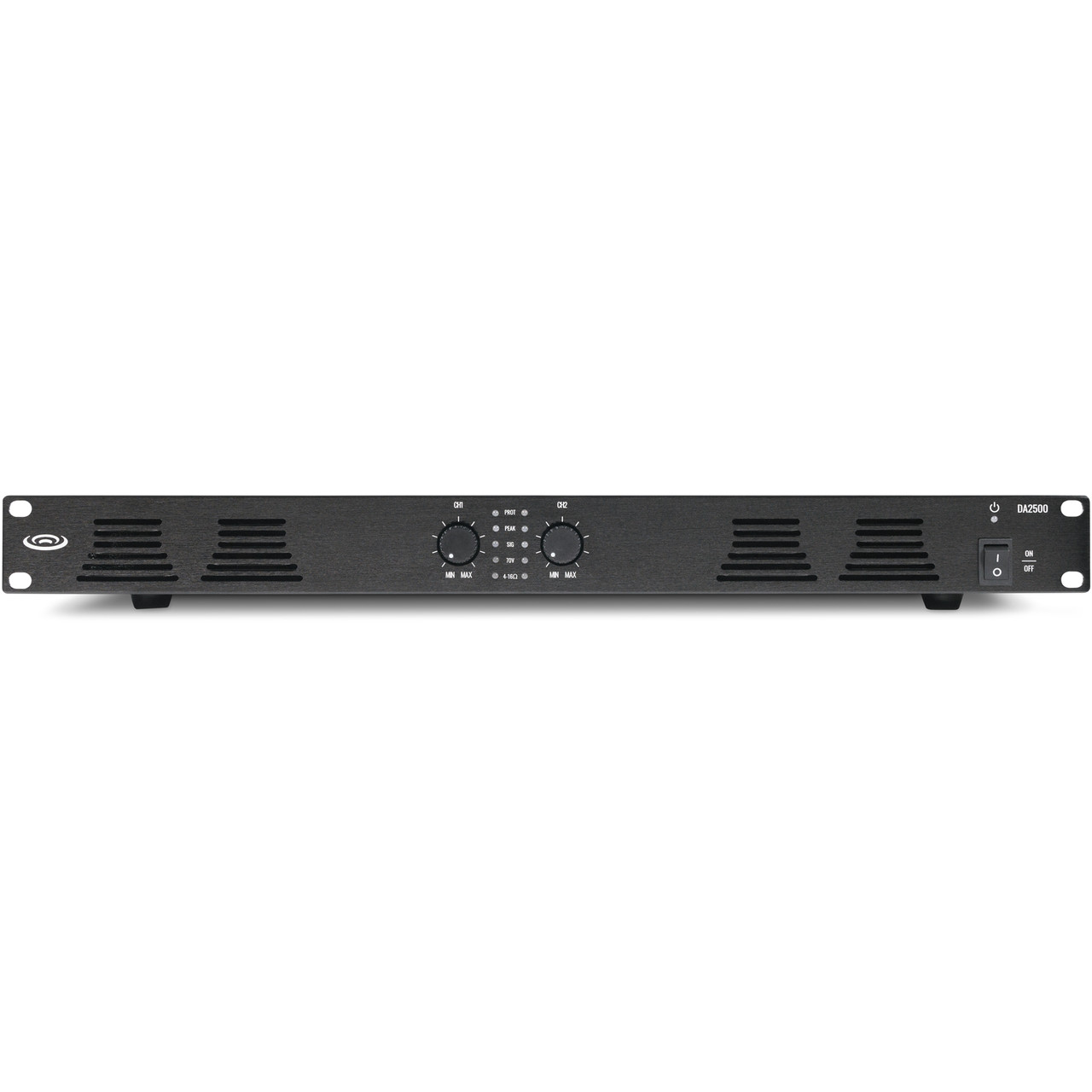

DA2500 DUAL-IMPEDANCE 500W POWER AMPLIFIER

The Pure Resonance Audio DA2500 is a dual-impedance 2-channel Class-D power amplifier with a built-in high-efficiency selectable impedance power supply. Each powerful 500-watt channel has an independent 70V/4-16Ω switch allowing them to simultaneously use a different impedance, delivering more flexibility in various commercial applications. This high-performance rack mount audio amplifier is a cost-effective solution housed in a standard 1U 19" lightweight chassis. The DA2500 features short-circuit, overload, and overheating protection with cooling fans to provide heat dissipation, maintaining safe operation in environments with long working hours.

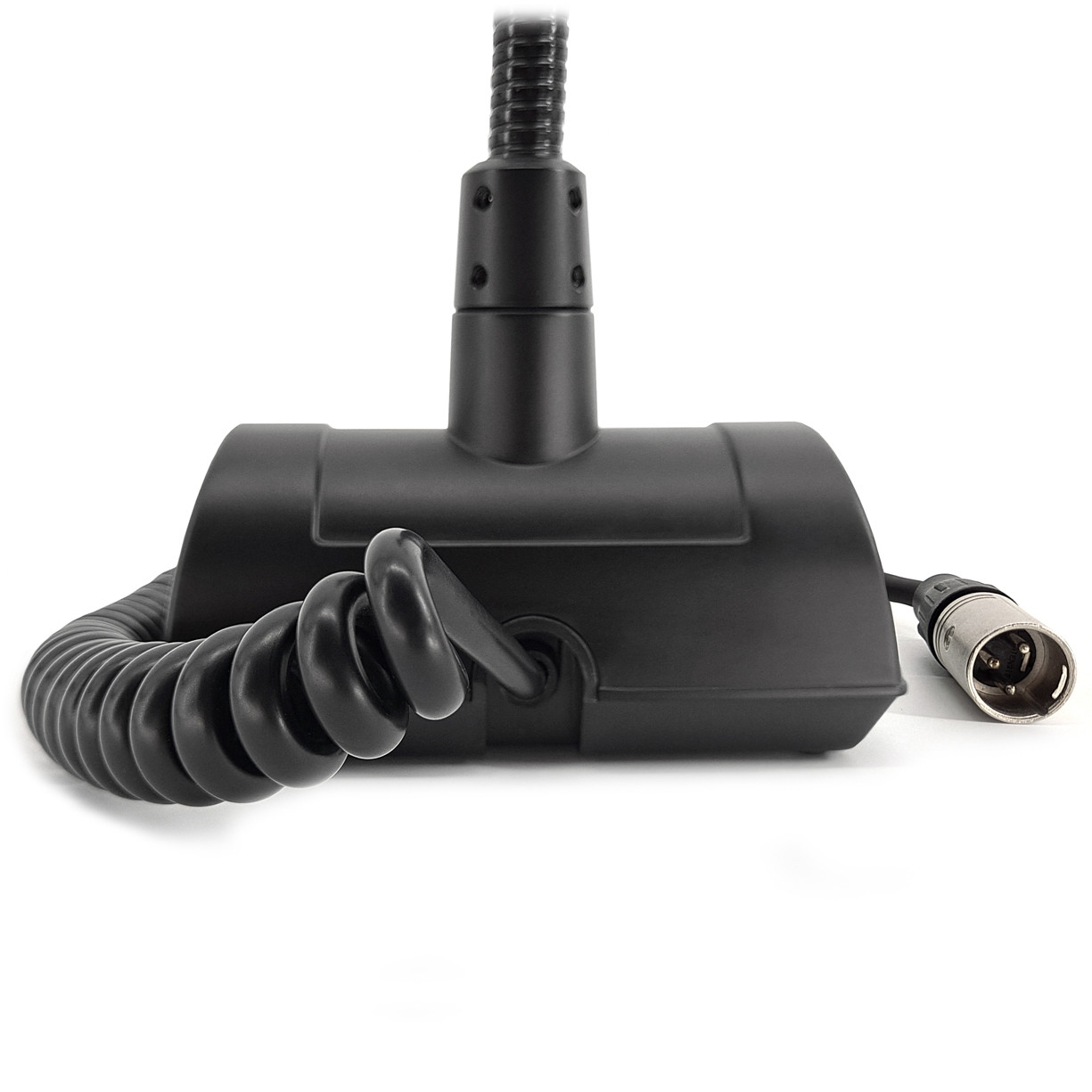

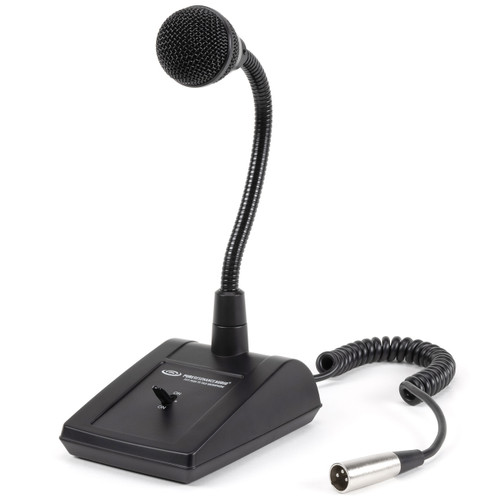

PTT1 Push-to-Talk Paging Microphone

The Pure Resonance Audio PTT1 desktop push-to-talk microphone provides excellent performance and reliability, ideal for paging and announcements in your baseball field sound system. The PTT1 features a uni-directional dynamic gooseneck microphone, table-stand, dual momentary locking switch, 5-foot cable, and three-pin male XLR connector. The durable gooseneck and metal table-stand ensure the PTT1 push-to-talk paging microphone can withstand even the toughest daily use in tough environments.

System & Component Videos

Pure Resonance Audio S12 12" 70V Compact 90° x 90° All-Weather Stadium Loudspeaker

• Highly weatherproof IP66-rated construction with fiber-reinforced plastic, stainless steel enclosure, and a metal grill ensures complete protection against direct high-pressure water jets, dust, and other particles for long-term reliability in severe outdoor environments
• The coaxial 12" LF paper cone and 1.5" HF thermoplastic drivers produce a full-range frequency response of 70 - 20kHz and a max SPL of 120 dB for stable organic sound with precise vocal reproduction and low distortion
• Recessed screw terminal connector, 70-volt and 100-volt multi-tap transformer (with an 8-ohm bypass), and a waterproof seal cover provide a weather-safe connection
• Up to 300 watts of continuous power handling and a 90° x 90° dispersion pattern produce an ideal coverage of more than 4000 sq. ft. and up to 700 ft. for direct speech
• Two drivers come from the same point source, allowing for a wider listening field, smoother frequency response, improved clarity, and a bigger sound from a compact enclosure
• A heavy-duty wall mounting bracket is included for quick, safe, and secure installation in indoor and outdoor stadiums, gymnasiums, warehouses, and various outdoor commercial applications



Pure Resonance Audio S10 10" 70V Compact 90° x 90° All-Weather Coaxial Loudspeakers

• Highly weatherproof IP66 rated construction with fiber-reinforced plastic and metal enclosure with a metal grill ensure solid durability and full protection against dust and other particles as well as direct high-pressure water jets for long-term reliability in severe outdoor environments
• The coaxial 10" LF paper cone and 1" HF thermoplastic drivers produce a full-range frequency response of 70 - 18kHz and an average SPL of 103 dB for stable organic sound with clear vocal reproduction and low distortion

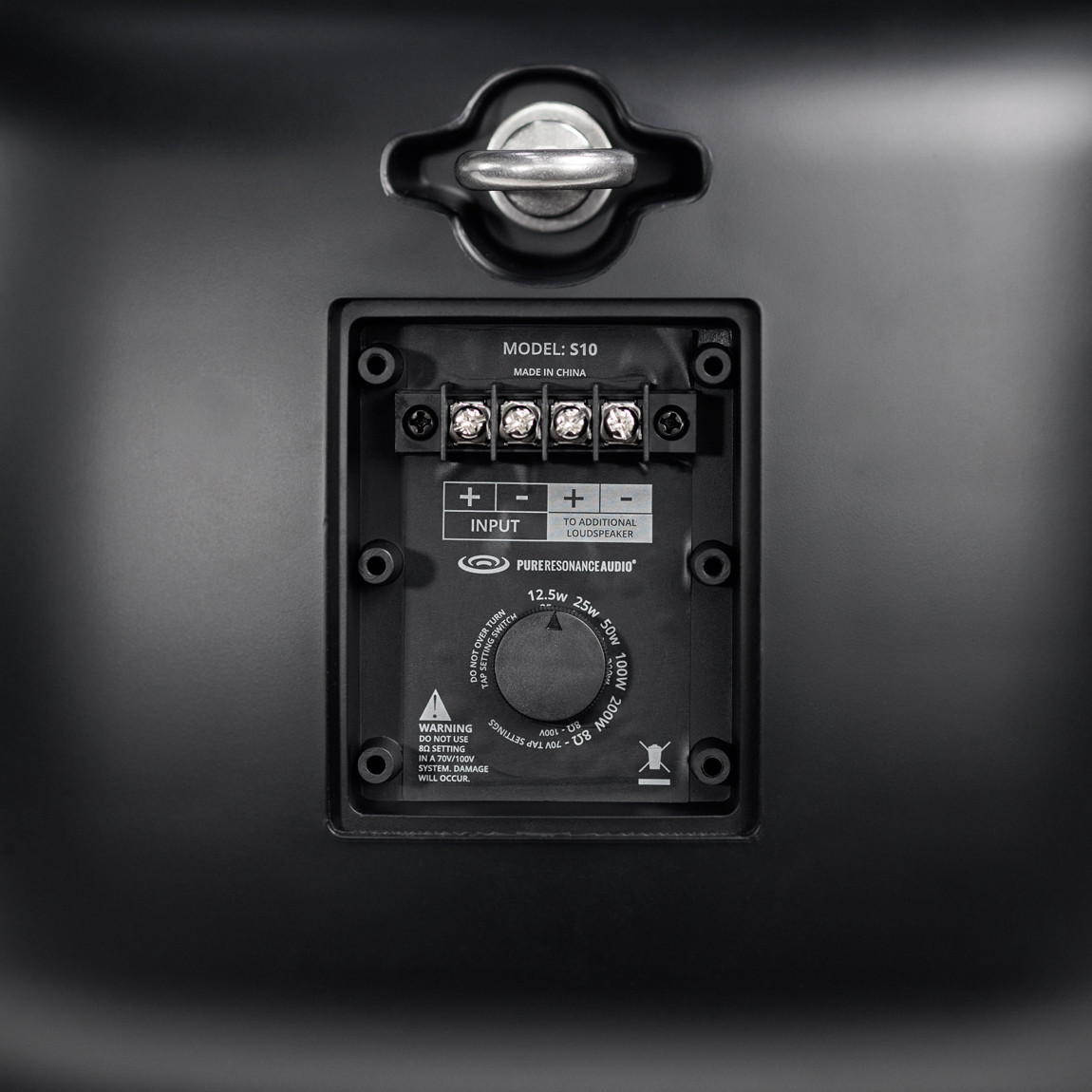

• Recessed barrier strip terminal block and 70-volt and 100-volt multi-tap transformer (with an 8-ohm bypass) and a waterproof seal cover provide a weather-safe connection
• Up to 200-watts of continuous power handling and a 90° x 90° dispersion pattern produce an ideal coverage of more than 3000 sq. ft. and up to 650ft for direct speech
• Two individual drivers come from the same point source allowing for a wider listening field, smoother frequency response, improved clarity, and a bigger sound from a compact enclosure
• A heavy-duty wall mounting bracket and eyebolt is included for a quick, safe, and secure installation in indoor and outdoor stadiums, gymnasiums, warehouses, and a wide variety of other commercial applications



Pure Resonance Audio MX9 9-Channel Rack Mount Mixer with Bluetooth and Effects

• Convenient Design - Powerful and professional quality analog mixer in a compact 3U rack mount design featuring high-quality components with maximum flexibility
• Multiple Inputs - 9 channels consisting of 7 balanced input interfaces with 48V phantom power and 2 unbalanced mono and stereo inputs, as well as Tape In and recording inputs and outputs and an additional set of front panel Tape In inputs
• Versatile Outputs - 2 sets of stereo main outputs, 2 groups of auxiliary outputs, and a separate headphone output on the front panel
• DSP Effects - Built-in 24-bit DSP effects processor allows users to quickly and easily add a range of effects, including gate reverb, delay, vocal echo, phaser, chorus, symphonic, distortion, pitch change, and more, or use the prefader option
• Bluetooth - Media player with display screen features Bluetooth audio streaming, MP3, USB with sound card function, and USB computer recording
• Channel Control - Each channel offers 3-band EQ, individual gain control, pre-fader monitor send, a peak indicator light, volume fader adjustment, and pan control, allowing users to direct the signal using a stereo setup



Pure Resonance Audio DA2500 Dual-Impedance 500W Rack Mount Power Amplifier

• Highly Efficient - High-performance switching power supply and Class-D type power amplifier provides 85% efficiency with low power loss and heat output
• Dual-Impedance - Unique dual-impedance operation with independent 4-16Ω and 70V output terminal switches enables each channel to use a different impedance simultaneously. The balanced inputs and outputs feature detachable Euroblock terminals
• Powerful - Two 500-watt channels (at 70V and 4Ω) with 70-volt and 4, 8, or 16-ohm output switches
• Compact Size - Compact, lightweight, yet durable 1 rack unit 19-inch industrial chassis with a clean, intuitive design
• Works Long Hours - Automatic cooling fans effectively dissipate heat, ensuring safe and reliable operation even in harsh conditions over extended periods of time
• Safeguard Protected - High temperature, overload, and short circuit protection with signal, peak clipping, protection, and power supply indicator lights



Pure Resonance Audio PTT1 Push-to-Talk Paging Microphone

• Built To Last - Reliable and durable, the PTT1 is built to withstand even the toughest daily use in restaurants, retail stores, schools, offices, or any commercial environment
• Paging and Announcements - This push-to-talk tabletop microphone is ideal for paging, announcements, and general public address applications
• Excellent Performance - The uni-directional gooseneck dynamic microphone provides excellent performance and speech intelligibility from a push-to-talk microphone
• Metal Table-Stand - The gooseneck microphone is mounted on a rugged table-stand that is die-cast from corrosion-resistant zinc alloy metal
• Push-To-Talk Switch - The table-stand features a dual momentary switch for priority paging as well as a locking switch for continuous usage
• Simple Setup - The dynamic capsule does not require AC power and a coiled 5' cable with an XLR connector, make for a quick and easy to set up

• (1) S12 12" High Output 2-Way Full-Range All-Weather Loudspeaker
• (1) Wall Mounting Bracket
• (2) S10 10" 2-Way Full-Range All-Weather Loudspeakers
• (2) Wall Mounting Brackets
• (1) MX9 9-Channel Rack Mount Mixer with Bluetooth and Effects
• (1) Power Cord
• (1) DA2500 Dual-Impedance 500W Rack Mount Power Amplifier
• (1) Power Cord
• (1) PTT1 Desktop Push-To-Talk Gooseneck Microphone

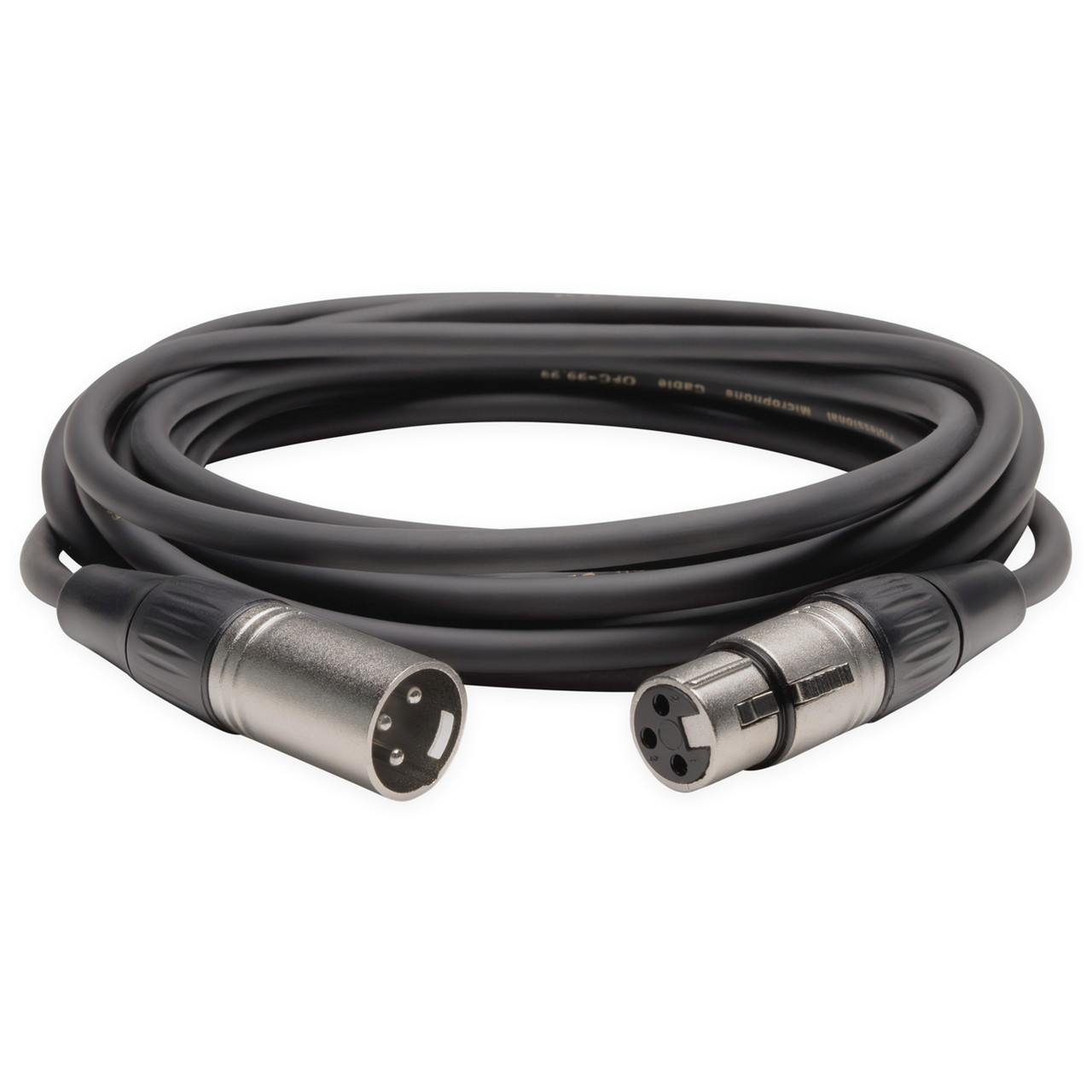

• (1) XLR-15 XLR to XLR Microphone Cable - 15ft

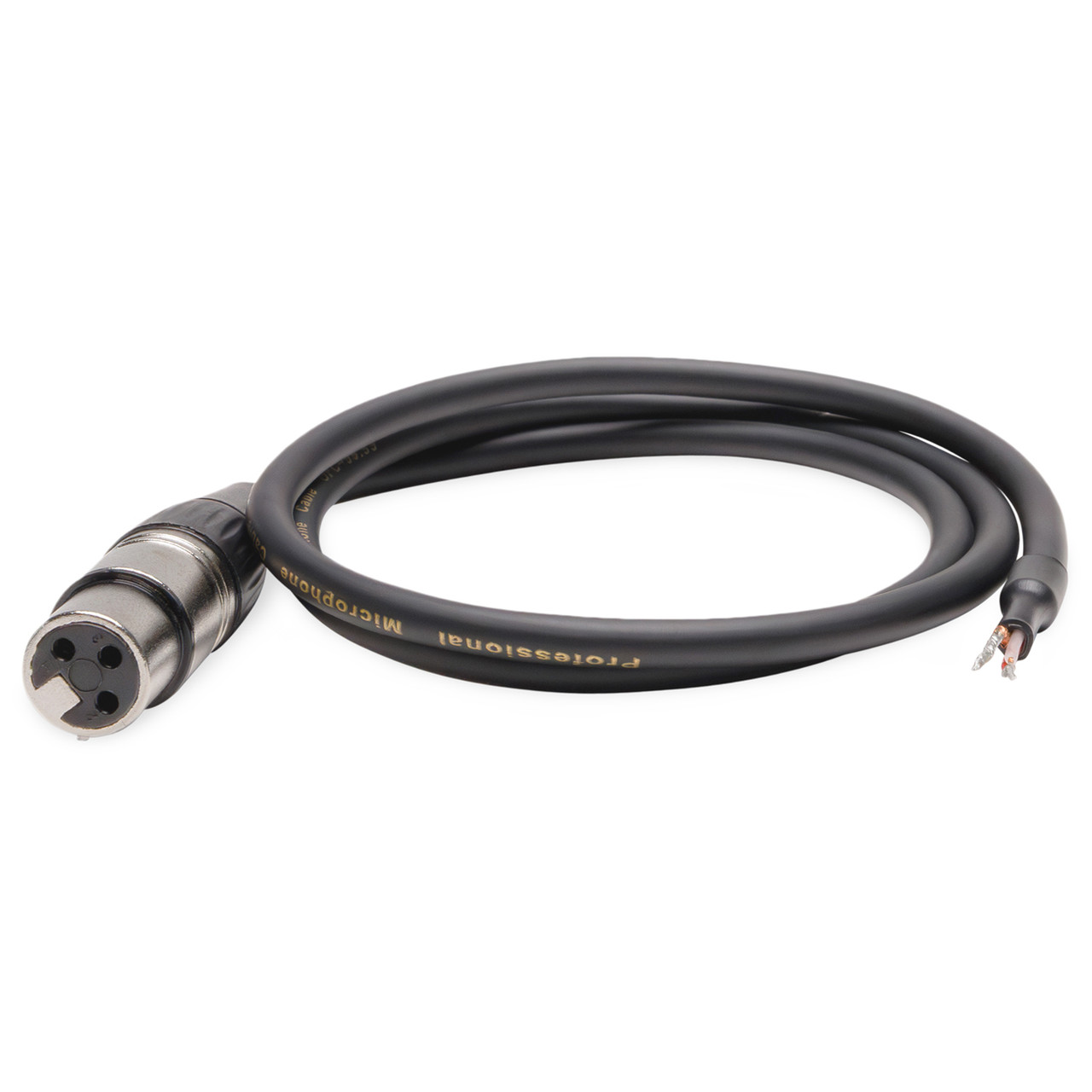

• (2) XLRF-3-PREP Female XLR to Prep Patch Cables - 3ft
• (500') 14/2 Gauge Weather Rated Burial Grade Cable
