Inside the Design
This baseball PA system provides superior voice and music reproduction with wide 90° x 90° coverage from each weatherproof Pure Resonance Audio S10 stadium speaker. The included RMA350BT is a powerful 350W Bluetooth mixer amplifier that features an MP3 media player that supports USB, TF, Bluetooth and FM tuner, and includes an emergency channel input. The PTT1 desktop push-to-talk microphone provides excellent performance and reliability, ideal for paging and announcements in a high school baseball field sound system.
Sound System Features:
- Highly weatherproof IP66 rated stadium speakers with 200W of continuous power handling and 90° x 90° dispersion
- Provides ideal coverage of more than 3000 sq. ft. and up to 650ft for direct speech from each speaker
- A heavy-duty wall mounting bracket is included with each speaker for a quick, safe, and secure installation
- The RMA350BT features an MP3 media player that supports USB, TF, Bluetooth and FM tuner
- In the event of an emergency, you can quickly use the emergency input to stop all other audio transmissions. This input takes priority letting any integrated emergency voice alarm system be heard loud and clear
- The PTT1 push-to-talk tabletop microphone is ideal for paging, announcements, and general public address applications
About the System Components

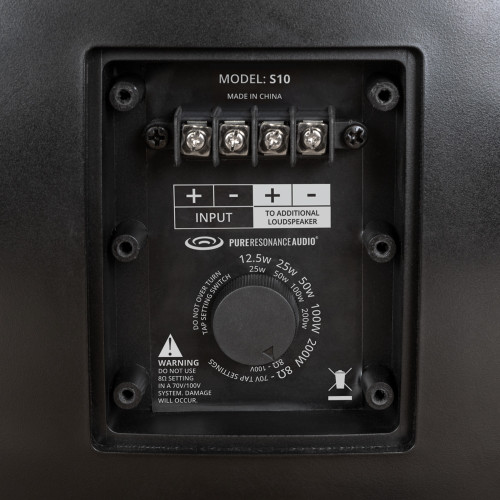

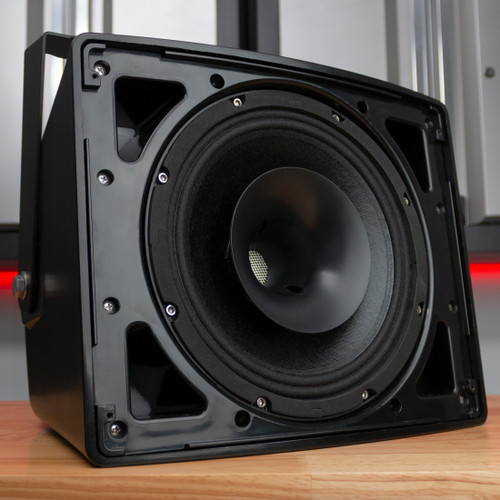

Pure Resonance Audio S10 10" Loudspeakers
The Pure Resonance Audio S10 10" compact two-way coaxial full-range all-weather outdoor stadium loudspeaker offers superior voice and music reproduction with a wide 90° x 90° coverage angle from a durable construction. IP66 rated for long-lasting reliability in harsh environmental conditions, this highly weatherproof speaker is dust-tight and protected against direct high-pressure water. With a fiber-reinforced plastic and metal enclosure, and a built-in 200W 70V/100V multi-tap transformer with an 8-ohm bypass, the S10 is specially engineered for installation in outdoor commercial environments with the included wall mount bracket for easy mounting.

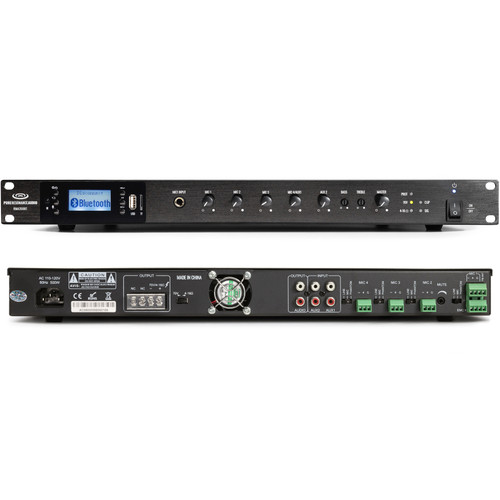

Pure Resonance Audio RMA350BT Bluetooth Mixer Amplifier
The Pure Resonance Audio RMA350BT 5-channel 4 Ohm/70V commercial rack mount mixer amplifier provides quick and easy Bluetooth connection and 350W of high-performance Class H power encased in a slim and lightweight space-saving design. With the forced air-cooling fan and emergency priority capabilities, this compact and affordable mixer amplifier perfectly accommodates any commercial business or public address application making it ideal for your office, school, restaurant, retail store, or any background music, paging or announcement complete audio system.

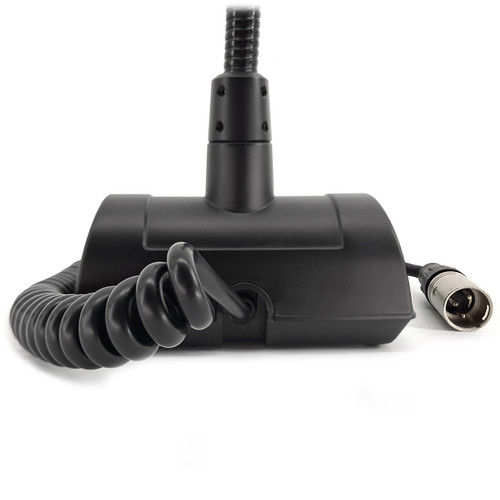

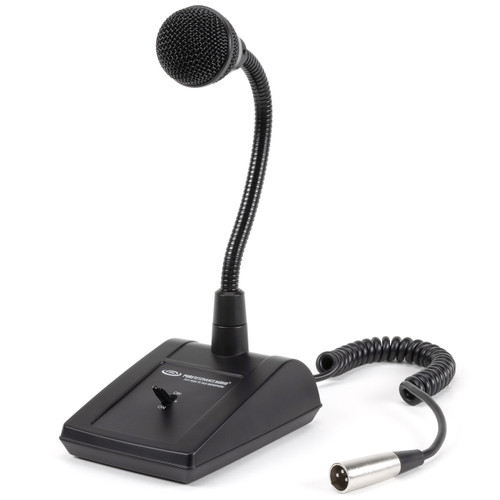

Pure Resonance Audio PTT1 Push-to-Talk Paging Microphone
The Pure Resonance Audio PTT1 desktop push-to-talk microphone provides excellent performance and reliability, ideal for paging, announcements, general public address, and communication applications. The PTT1 features a uni-directional dynamic gooseneck microphone, table-stand, dual momentary locking switch, 5-foot cable, and three-pin male XLR connector. The durable gooseneck and metal table-stand ensure the PTT1 push-to-talk paging microphone can withstand even the toughest daily use in a baseball PA system.
