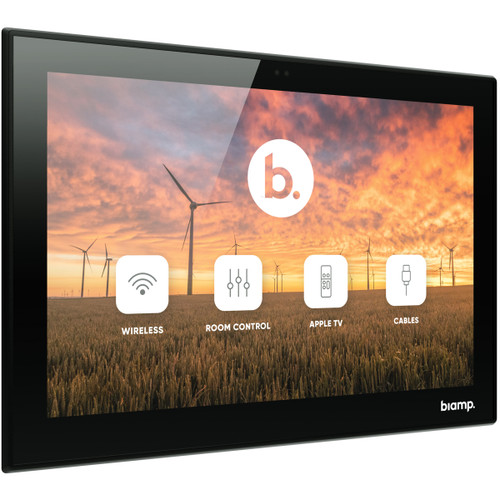

Biamp Apprimo Touch 10 10-inch Touch Panel

The Apprimo Touch 10 is a premium 10-inch capacitive touch panel designed for rooms that require advanced yet elegant control solutions. Its modern, slim profile blends seamlessly into any interior, making it a stylish and discreet interface for professional environments such as conference rooms, classrooms, and multipurpose spaces.

Equipped with PIR sensors, the Apprimo Touch 10 automatically activates when a user approaches and adjusts screen brightness based on ambient light, ensuring energy efficiency and ease of use. The user interface is fully customizable via Biamp's Project Designer software, offering a range of templates and themes to match customer requirements or corporate branding.

Powered via PoE (IEEE 802.3at Class 3, 15W), the Apprimo Touch 10 supports simple installation over a single CAT5e/CAT6 cable. Flexible mounting options include wall installation or tabletop use, and the device is designed to fit standard US, EU, and DK back boxes. With durable, scratch-resistant glass and a five-year warranty, it provides a long-lasting and reliable room control solution.

Features

Features

10" capacitive touch LCD interface with scratch-resistant glass
Fully customizable UI with templates and themes via Project Designer software
PIR sensors automatically wake the screen when approached
Automatic brightness adjustment based on ambient light levels
PoE powered (IEEE 802.3at Class 3, 15W) for simple single-cable installation
Can be wall-mounted or placed on a tabletop
Fits standard US, EU, and DK single-gang back boxes
Firmware updates via the mini USB port
5-year warranty

Specification

Power	PoE (IEEE 802.3at Class 3, 15W)
Display Type	High-Contrast Capacitive Touch LCD
Display Size	10" (254 mm) diagonal
Display Resolution	1280x800
Maximum Display Brightness	350 nits
Network Connection	RJ-45 with Ethernet cable (Cat5e and above)
Mini USB port	USB 2.0
Sensors	Proximity Ambient Light
Controller Compatibility	Impera Alfa II Impera Lima Impera Tango Impera Sierra II
Environmental	32 - 104° F (0 - 40° C) Humidity: 10-90% relative humidity (non-condensing) Altitude: 0-6,600 ft (0-2000m) MSL
Compliance	CE marked (Europe) RoHS Directive (Europe)
Dimensions (H x W x D)	6.67" (169 mm) x 9.7" (246 mm) x 1.6" (41 mm)
Weight	1.2 lbs (0.54 kg)
