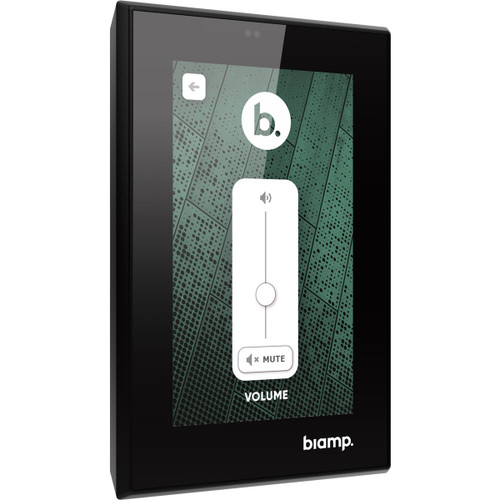

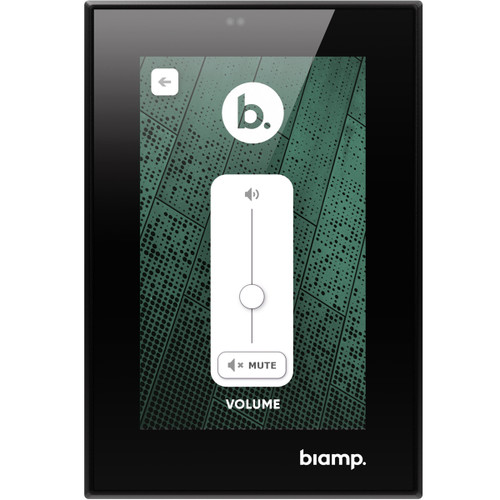

Biamp Apprimo Touch 4 4-inch Touch Panel

The Apprimo Touch 4 is a sleek and compact 4" touch panel designed for smaller meeting rooms and collaboration spaces. Similar in size to a smartphone, it provides a familiar and intuitive user experience. Featuring a capacitive LCD touchscreen with scratch-resistant glass, the Apprimo Touch 4 allows for fully customizable user interfaces using Project Designer software, including themes and templates to match customer requirements or corporate branding.

Powered by PoE for simple installation, the panel includes PIR sensors that automatically wake the display when approached and adjust brightness according to ambient light levels. A magnetic wall plate ensures easy installation, while support for standard US, EU, and DK back boxes ensures flexibility. With firmware updates via USB and a durable design, the Apprimo Touch 4 delivers reliable and elegant room control with a five-year Biamp warranty.

Features

Features

4" capacitive LCD touch interface with scratch-resistant glass
Customizable user interface with Project Designer templates and themes
Compact, intuitive design similar to a smartphone
PIR sensors for automatic wake and adaptive brightness
PoE powered (IEEE 802.3at Class 2, 7W) for simple single-cable installation
Magnetic wall plate for fast and secure mounting
Fits standard single-gang US, EU, and DK back boxes
Firmware updates via mini USB
5-year warranty

Specification

Power	PoE (IEEE 802.3at Class 2, 7W)
Display Type	High-Contrast Capacitive Touch LCD
Display Size	4" (102 mm) diagonal
Display Resolution	800x480
Maximum Display Brightness	400 nits
Network Connection	RJ-45 with Ethernet cable (Cat5e and above)
Mini USB port	USB 2.0
Sensors	Proximity Ambient Light
Controller Compatibility	Impera Alfa II Impera Lima Impera Tango Impera Sierra II
Environmental	32 - 104° F (0 - 40° C) Humidity: 10-90% relative humidity (non-condensing) Altitude: 0-6,600 ft (0-2000m) MSL
Compliance	CE marked (Europe) RoHS Directive (Europe)
Dimensions (H x W x D)	4.5" (115 mm) x 3" (77 mm) x 1.6" (41 mm)
Weight	0.35 lbs (0.16 kg)
