The Biamp Desono DX-IC10 10" high-output rewrites the cost-to-performance equation for high-end ceiling loudspeakers. Able to fulfill a wide variety of needs, the DX-IC10 exceeds the performance of competing high-ceiling models.


Add to Cart for Details

Description

Open Box. NEW Condition. Authorized Biamp Dealer. Documentation and Packaging as new product.

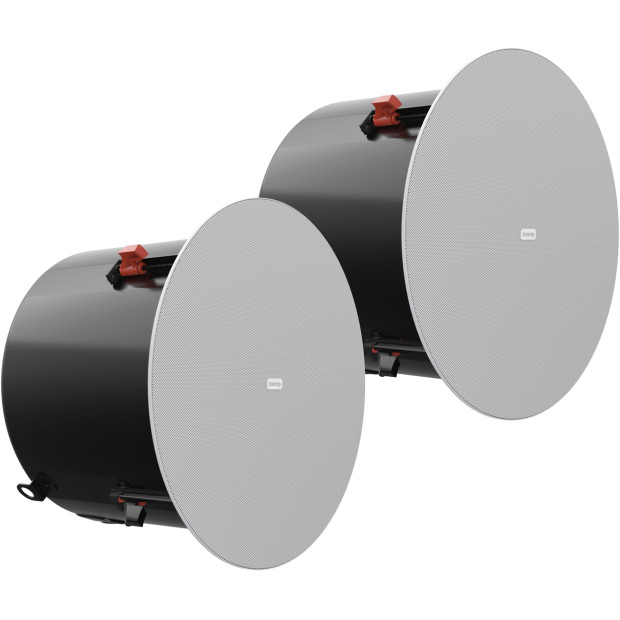

Biamp Desono DX-IC10-W 10" 2-Way High Output White Ceiling Mount Loudspeakers

The flagship model Desono DX-IC10 exceeds the performance of competing "high-ceiling" models. The DX-IC10 provides high-level foreground music, loud-and-clear paging (even in noisy environments), and readily supports large systems in sports facilities, clubs, or concert venues for delay and zone fill. Compact, affordable replacement for typical 12" competitor ceiling speakers.

DX-IC10s can readily be combined with smaller members of the Desono DX family due to Biamp's uniform voicing technology, providing additional power and LF response in areas that require it. Featuring genuine coaxial design with separate magnets for the LF and HF drivers, the DX-IC10 exhibits reduced distortion and industry-leading sensitivity permitting 3 dB to 6 dB greater output level, while requiring half the amplification power of competing products.

Patent-pending SpringLock™ clamps allow singlehanded placement to speed installation and reduce labor time. The SpringLock spring-loaded clamps support the back can on the included tile rails and snap-on C-ring, so that the installer no longer needs to hold the can against the tile while tightening the clamps.

The front-face wattage selector switch enables quick adjustment of tap levels, while the high power internal autoformer permits full power output with 70V or 100V lines. A variety of installation accessories are available to accommodate different ceiling materials.

Features

  • High intelligibility with exceptional uniform coverage
  • Fast installation with SpringLock™ mounting clamps
  • Consistent, wide dispersion up to 16 kHz
  • Attractive edgeless magnetic grille design
  • Conduit knock-outs on the input cover meet plenum air space handling requirements

Specifications

Operating Mode Passive with DSP
Operating Environment Indoor
Operating Range (-10dB) 58 Hz to 22 kHz
Nominal Beamwidth (H x V) 90°, conical
Transducers LF 1 x 10" (254 mm)
HF 1 x 1.25" (32 mm) exit compression driver
Nominal Maximum SPL Peak 127 dB
Continuous 121 dB
Autoformer 70V: 200W, 100W, 50W, 25W
100V: 200W, 100W, 50W
Recommended Amplifiers 200 W - 400W @ 8 Ω, (40 V - 57  V)
Input Connection 4-position Euroblock connector
Controls Front-face wattage / low impedance selector switch
Mounting Provisions 4 SpringLock mounting clamps with 3-inch grip range
Certifications ETL listed to comply with UL1480, UL2043 and CSA62368-1 Suitable for use in air handling spaces per NFPA 70 and NFPA 90
Included Accessories C-Ring supporting plate, tile support bridge rails, grille, paint mask, cut-out template
Cutout Diameter 14.17" (360 mm)
Dimensions (Dia x D) 15.51" (394 mm) x 10.37" (263 mm)
Weight TBD

DOCUMENTS

In The Box

  • (2) DX-IC10-W Ceiling Speakers
  • (2) White Grilles
  • (2) Euroblock Connectors
  • (2) C-Ring Supporting Plates
  • (4) 24" Tile Support Bridge Rails
  • (2) Paint Masks
  • (1) Cut-Out Template
