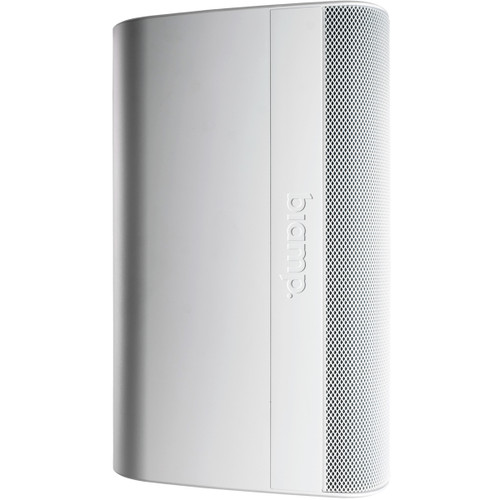

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.The Desono EX-S10-CM-W is the largest member of the EX Series, delivering exceptional musicality and powerful low-frequency extension from its 10" 2-way design. Finished in white to blend seamlessly into modern interiors and architectural spaces, it offers uniform coverage, high intelligibility, and rich sound quality for a variety of venues.
Equipped with Biamp's patented ClickMount pan/tilt bracket, the EX-S10-CM-W allows rapid installation with indexed aiming control, enabling vertical or horizontal orientation without repositioning the bracket. Designed for indoor and outdoor use, the bracket is theft- and tamper-resistant, while the included ClickPlug with integrated gland nut ensures weather-resistant connections.
Perfect for front-of-house in small venues or in distributed audio systems without subwoofers, the EX-S10-CM-W delivers powerful, clear sound with elegant styling that complements any environment. It has a 70V/100V transformer with a low impedance bypass that provides flexible system integration.
| Operating Mode | Passive with selectable low-impedance or 70V/100V operation |
|---|---|
| Operating Environment | Indoor/Outdoor |
| Operating Range | 48 Hz to 20 kHz |
| Nominal Beamwidth (H x V) | 100° x 100° |
| Transducers | LF 1 x 10" (250 mm) treated paper cone HF 1 x 1.4" (35 mm) voice coil compression driver |
| Transformer | 70V: 120W, 60W, 30W, 15W 100V: 120W, 60W, 30W |
| Input Connection | Lever-actuated wire clamping 4-position terminal block with pass-through |
| Environmental Rating | IP54 per IEC 60529 IEC 60068-2-5 (Solar Radiation) IEC 60068-2-11 (Salt Mist) IEC 60068-2-42 (SO2) IEC 60068-2-60 (Chlorine) |
| Dimensions (H x W x D) | 20.8" (529 mm) x 12.2" (310 mm) x 12.3" (312 mm) |
| Weight | 33.43 lbs (15.2 kg) |
