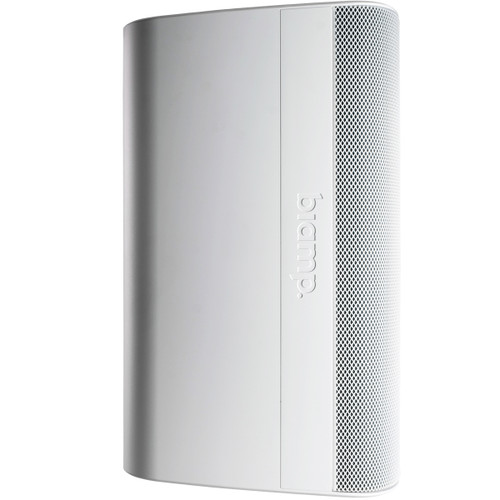

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.The Biamp Desono EX-S10-UB-W is the largest white model in the EX Series, delivering exceptional acoustic performance with a 10-inch low-frequency driver and coaxially mounted high-frequency driver for deep LF extension, high intelligibility, and uniform coverage. Designed for small venue front-of-house or distributed audio applications without subwoofers, it excels in both music and speech reproduction.
The included ClickMount U-Bracket provides a low-profile mounting solution ideal for indoor or outdoor use, with a ClickPlug and integrated gland nut for weather-resistant connections. This bracket design ensures fast, secure installation and allows vertical or horizontal orientation without moving the bracket.
With elegant white aesthetics, a durable enclosure, and 70V/100V or low-impedance operation, the EX-S10-UB-W is perfectly suited for commercial, hospitality, education, and worship environments. It is ETL listed, certified to UL 1480A and CSA 62368-1, CE marked, RoHS compliant, and backed by a 5-year warranty.
| Operating Mode | Passive with selectable low-impedance or 70V/100V operation |
|---|---|
| Operating Environment | Indoor/Outdoor |
| Operating Range | 48 Hz to 20 kHz |
| Nominal Beamwidth (H x V) | 100° x 100° |
| Transducers | LF 1 x 10" (250 mm) treated paper cone HF 1 x 1.4" (35 mm) voice coil compression driver |
| Transformer | 70V: 120W, 60W, 30W, 15W 100V: 120W, 60W, 30W |
| Input Connection | Lever-actuated wire clamping 4-position terminal block with pass-through |
| Environmental Rating | IP54 per IEC 60529 IEC 60068-2-5 (Solar Radiation) IEC 60068-2-11 (Salt Mist) IEC 60068-2-42 (SO2) IEC 60068-2-60 (Chlorine) |
| Dimensions (H x W x D) | 20.8" (529 mm) x 12.2" (310 mm) x 12.3" (312 mm) |
| Weight | 33.43 lbs (15.2 kg) |
